PaulyWinder Installation Guide
Removing the Flyer Bars:
1. Remove the orifice bar and the bobbin from your
flyer.
2. Uninstall your flyer bars by unscrewing the two
screws behind the flyer head that secure the flyer
bars into the head. These screws may be square or
phillips head.
3. After removing the screws, pull or twist the bars to
remove them from the flyer head. It is common for
the bars to be securely fit into the flyer head.
Note: If your wheel model is not Golden Whorl, there may
be additional assembly required. B efore continuing with
additional disassembly, inspect your flyer to see if your
PaulyWinder and screw kit can be used without further
disassembly. If your flyer has too much depth to install the PaulyWinder, you will need
to remove either the ring or the triangular wooden points as described below:

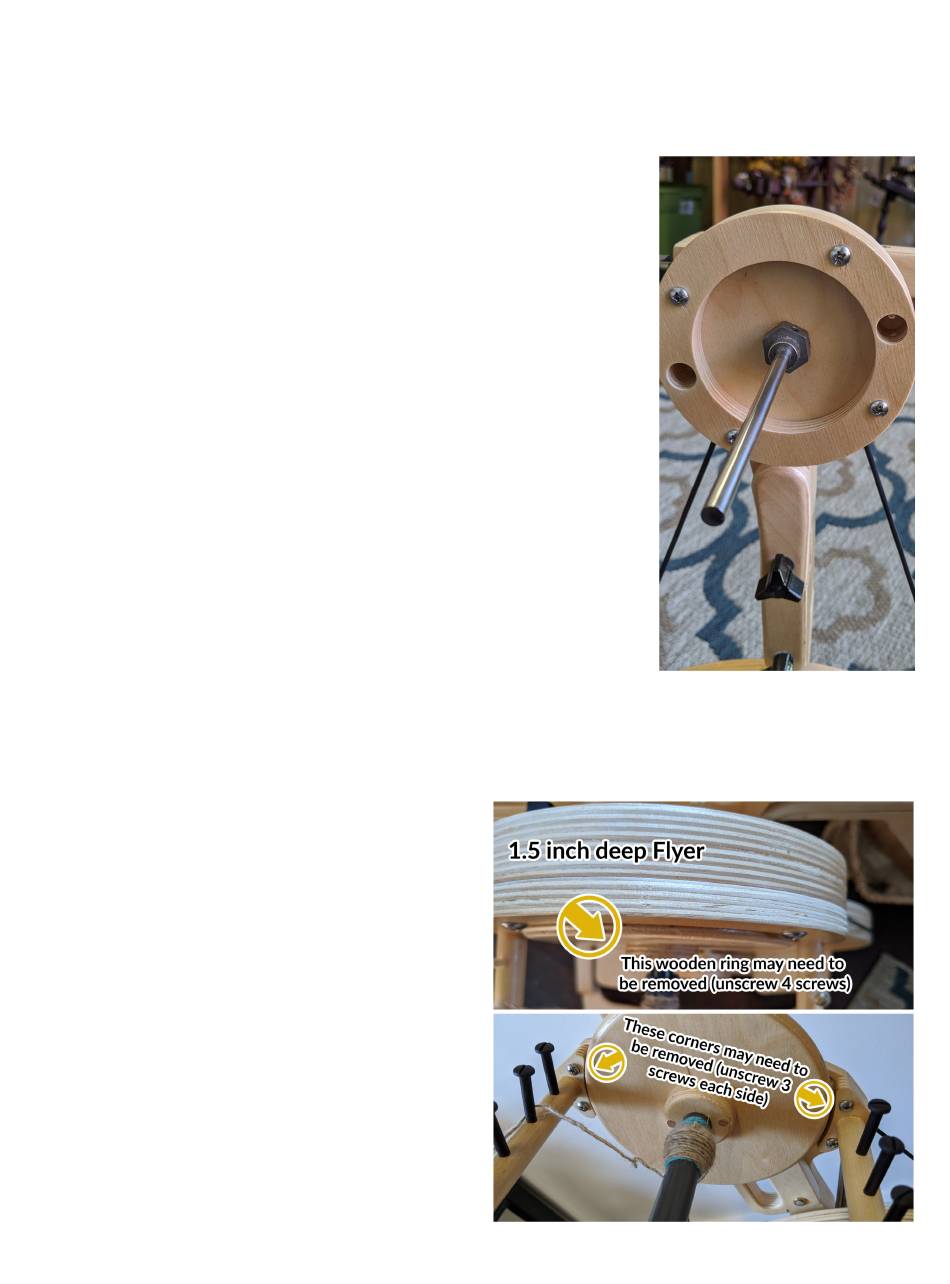

● If your Flyer head measures 1.5
inches deep, you will need to
remove the four screws and the
wooden ring (.5 inches) from the
face of your flyer to install the
PaulyWinder.
● If your flyer has triangular wooden
points (see picture), you may need
to remove these when installing the
PaulyWinder.
Advertisement
Table of Contents
Related Manuals for SpinOlution SpinPerfect PaulyWinder
Summary of Contents for SpinOlution SpinPerfect PaulyWinder
- Page 1 PaulyWinder Installation Guide Removing the Flyer Bars: 1. Remove the orifice bar and the bobbin from your flyer. 2. Uninstall your flyer bars by unscrewing the two screws behind the flyer head that secure the flyer bars into the head. These screws may be square or phillips head. ...
- Page 2 Installing the PaulyWinder Place the back of the PaulyWinder (screw hole) into the flyer hole and attach to the flyer using the screw provided with your installation kit. Do not use power tools, as they may strip the plastic. ...
- Page 3 on the magnets. I f your orifice bar does not go onto the flyer, confirm that you have the balance bar installed with flat side (right above the magnet) facing upward. A fter you have aligned the PaulyWinder by putting the orifice bar on, tighten the screws on the back of the flyer to secure the alignment. ...
- Page 4 Lacing the Bobbin Remove the orifice bar and place a bobbin on your flyer. Place the orifice bar on, and attach a leader thread to your bobbin. Lace the bobbin by allowing the leader thread to fall below the bobbin. Take the leader thread under the curve ...
- Page 5 If you notice your bobbin is not filling along the back, tighten the black screw using ¼ turns clockwise until you see the PaulyWinder fill the back the next time it wanders to the back of the bobbin. It is completely normal for the PaulyWinder to wander as it fills the bobbin. It may wander in the middle, the front, or the back, and wander around filling in valleys and ...
