IQ WATER VALVE QUICK INSTALL GUIDE
FEATURES & OVERVIEW

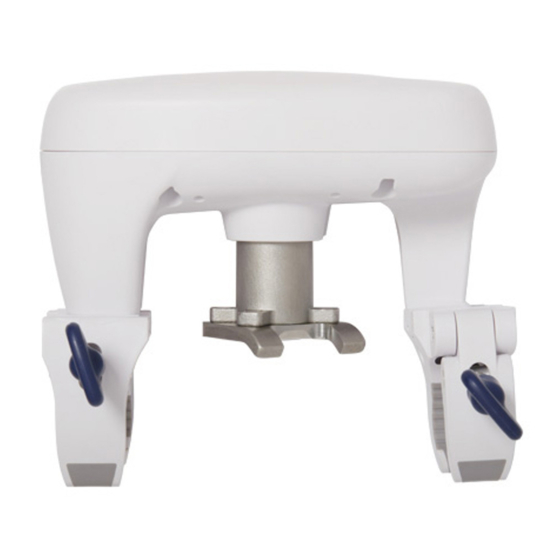

The IQ Water Valve is a retro fit servo that can operate 1/4 turn ball valves with pipes
from 1/2" to 1 1/4" and installs easily without the need for a plumber. It uses powerful
Z-Wave 700 for maximum range and reliability to the IQ Panel.
Features:
• Easy to install, no plumber needed
• Retrofit existing ball valves
• Works with IQ Panel
• Peace of mind from water leak
damage
• Indoor/Outdoor (avoid direct
sunlight)
• Z-Wave Plus 700 series
communication
• Adaptive torque output max 8n.m
*Does not work on Gate valves. Be sure to check
the valve type of your water main prior to install
This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
SPECIFICATIONS
SKU: QZ2160-840 (US) / QZ2160-724 (EU)
Dimensions: 14.8 x 9.6 x 13.3mm
Weight: 603g
Waterproof & Dustproof: IP66
Usage: For Indoor & Outdoor Water Valve On/Off
Operating Temperature: 14 ~ 122°F (-10 ~ +50°C)
Relative Humidity: 8% ~ 80%
Operating Distance: Up to 130ft (indoors) and 450ft
(outdoors)
Frequency Type :
Z-Wave Plus 700 series
908.4 MHz (US)
868.42 MHz (EU)
Motor Torque: Adaptive output max 8n.m
Touch Sense Button: x1
LED Indicator: 3 color LED (Green, Yellow & Red)
Sound Indicator: Buzzer (Max 85dB)
Power Supply AC-DC:
AC (110V 60Hz / 220V 50Hz)
DC (12V/1A)
Advertisement
Table of Contents
Summary of Contents for QOLSYS IQ Water Valve
- Page 1 SPECIFICATIONS SKU: QZ2160-840 (US) / QZ2160-724 (EU) The IQ Water Valve is a retro fit servo that can operate 1/4 turn ball valves with pipes Dimensions: 14.8 x 9.6 x 13.3mm from 1/2” to 1 1/4” and installs easily without the need for a plumber. It uses powerful Weight: 603g Z-Wave 700 for maximum range and reliability to the IQ Panel.
- Page 2 Then plug-in to an outlet Align the fork with the handle and press down firmly to engage spring loaded gear. Then tighten thumb screws This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
- Page 3 (Settings/Other Z-Wave Devices) to ensure proper of force needed to open/close communication, range the ball valve and function Touch it again 1 time to close the valve This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
- Page 4 Factory Default: - Tap and hold the touch sense - Option 1: Use the IQ Panel to “Clear” the IQ Water Valve. This will button for 3 beeps, then quickly remove it from the Z-Wave network and restore factory defaults.
