Safety Recommendations:
•
Safety glasses and gloves should be worn during the service.
•
Use in well ventilated area.
•
Verify machine and all components are in good working
condition.
Complete Atomizer Machine and Components:
•

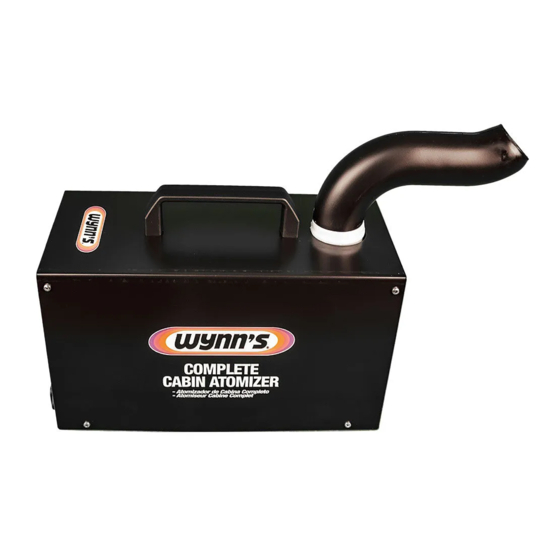

Complete Cabin Atomizer Machine
•
Power Supply Cable
•
Conveyor Tube
Approved Wynn's
HVAC Products:
®
•
Airco-Clean (#ZW30208)
•
Air Purifier (#ZWA1601)
•
MB-10 Tablet Kit (#ZW90010)
Preparing the Complete Cabin Atomizer Machine:
•
Connect the power cable to the socket on the front of the
Complete Cabin Atomizer Machine.
•
Connect the other end of the power cable into a
110-volt outlet.
Preparing the Complete Cabin Atomizer Machine
(continued):
•
Fill the Complete Cabin Atomizer Machine's reservoir
with Approved Wynn's® HVAC products only.
•
The green READY/ON LED light will begin to flash.
©2021 ITW PROFESSIONAL AUTOMOTIVE PRODUCTS
ZW03005 COMPLETE CABIN
ATOMIZER SERVICE JOB AID
Technical Support: 800-255-8138 Option #4
•
3606 CRAFTSMAN BLVD, LAKELAND, FL 33803
REV.00
Pg 1 of 3
Advertisement
Table of Contents
Summary of Contents for Wynn's ZW03005
- Page 1 ZW03005 COMPLETE CABIN ATOMIZER SERVICE JOB AID Technical Support: 800-255-8138 Option #4 Safety Recommendations: • Safety glasses and gloves should be worn during the service. • Use in well ventilated area. • Verify machine and all components are in good working condition.
- Page 2 ZW03005 COMPLETE CABIN ATOMIZER SERVICE JOB AID Technical Support: 800-255-8138 Option #4 Preparing the Complete Atomizer Machine (continued): • Insert the conveyor tube into the Cabin Atomizer Machine’s reservoir opening. Preparing the Vehicle for Service: • Start the vehicle’s engine.
- Page 3 ZW03005 COMPLETE CABIN ATOMIZER SERVICE JOB AID Technical Support: 800-255-8138 Option #4 Performing the Service: • Press the ON/OFF button on the Complete Cabin Atomizer Machine’s front panel. • Check to ensure vapor is emitting from conveyor tube and being drawn into the air recirculation vent.
