D. Installation

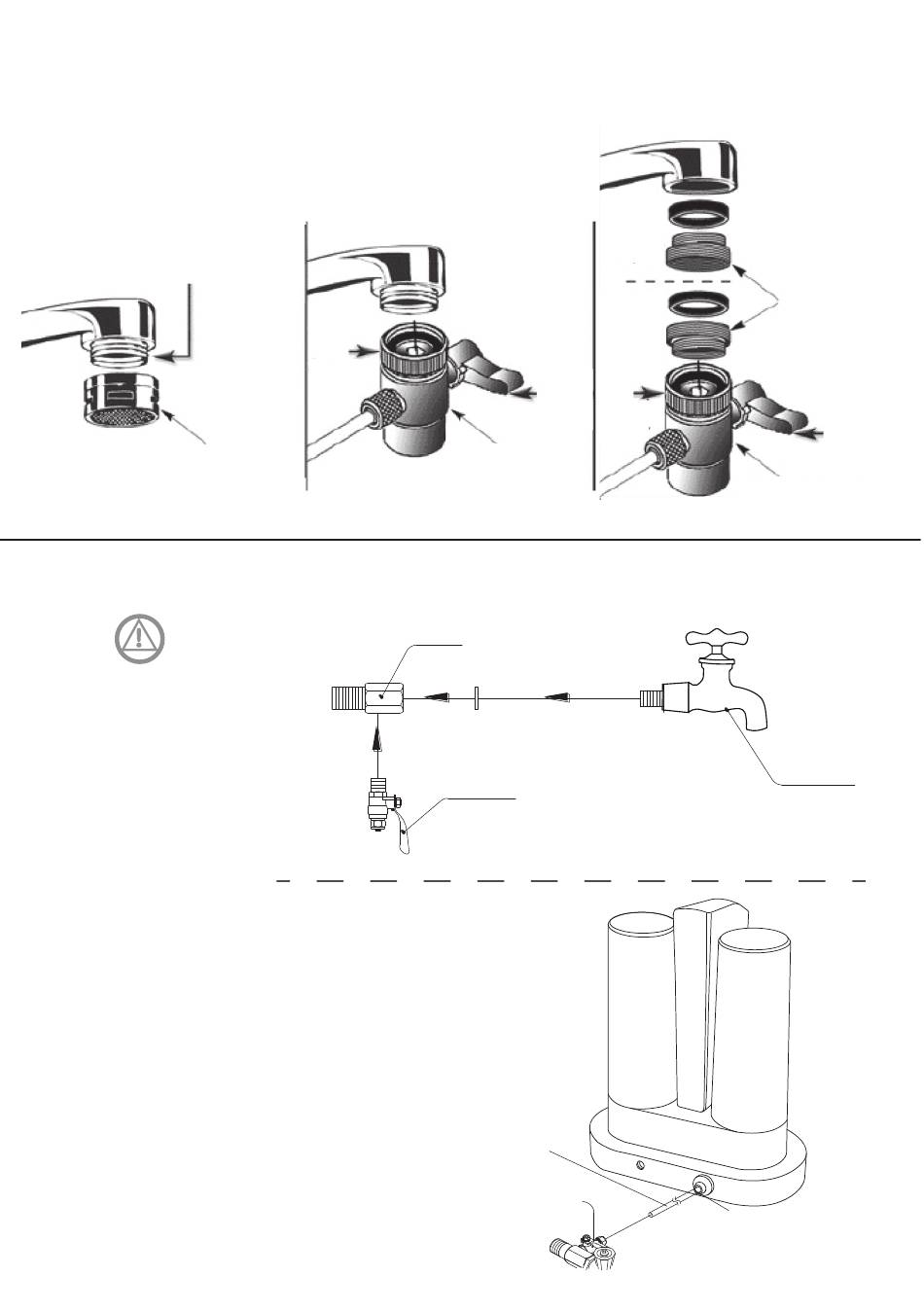

Standard Installation of Tap
Diverter Valve
Connecting divertor to
ourside threads on faucet
Remove
Existing
Aerator
Installation using Under Sink
please consult a
professional plumber
1. Remove faucet & insert
the tri-way socket and
1/4" inlet ball valve.
See Drawing (A) here.
2. Connect the 1/4" PE
water tubing to the
1/4" inlet ball valve on
the one end, and to the
incoming water
connection on the
other end.
See Drawing (B) here.
Swivel
Collar
Diverter valve
1/4" PE
Water Pipe
Tri - way Socket
Drawing (B)
Inlet Water Pressure
Minimum : 10Psi/68,947 Pa
Maximum : 40Psi/275,790 Pa
1/4" PE Water Pipe
1/4" Inlet Ball Valve
Gasket
Adapter
Gasket
Adapter
Handle
Swivel
Collar
1/4" Inlet Ball Valve
Drawing (A)
Back view
Faucet
adapters
(use size as needed)
Handle
Diverter valve
Faucet
Water In
Connector
