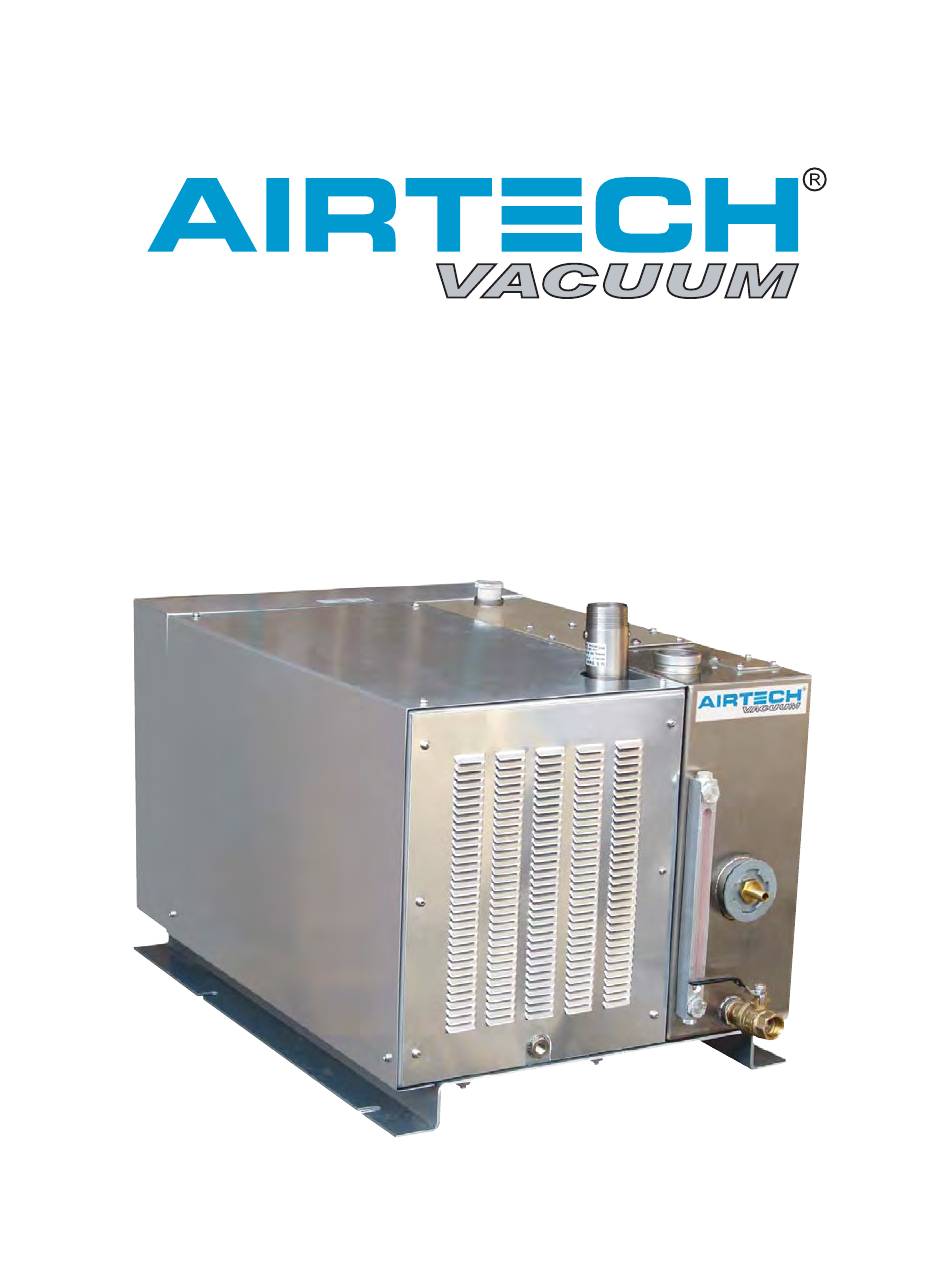

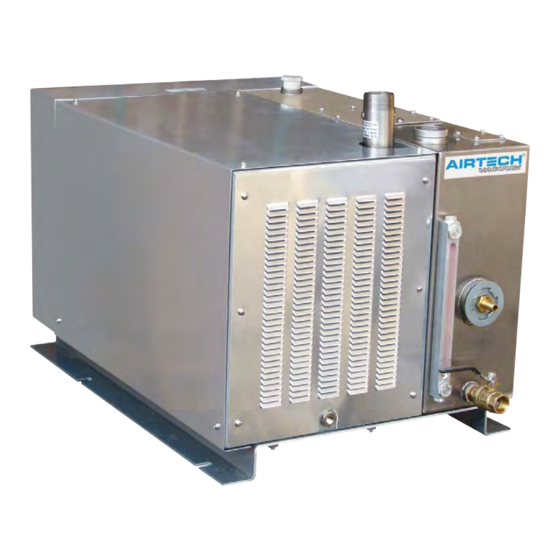

Page 1 Operating and Maintenance Instructions 3AL Vacuum Systems - Standard Design...
Page 3: Table Of Contents
INSTALLATION & OPERATING MANUAL 3AL VACUUM SYSTEMS Table of Contents Section: Page Number: 1.0 Safety 2.0 Intended Use 3.0 Prohibited Uses 4.0 Technical Data 5.0 Transportation & Handling 6.0 Installation 7.0 Start-Up 8.0 Shut-Down 9.0 Operation 10.0 Long Term Shut-Down 11.0 Servicing...
Page 5: Safety
1.0 Safety Safe operation of the 3AL vacuum system requires strict adherence to all local and national codes. In addition to these requirements, specific dangers are identified within this manual and should be considered when installing and operating your Airtech vacuum system.
Page 6: Intended Use
1.2.7 Surfaces within the 3AL vacuum system can be cause burns or scalding. Do not touch internal surfaces within the system. 1.2.8 The 3AL can produce vacuums to 29 inches Hg vacuum. Be sure that the vacuum has been vented to atmosphere before working on the 3AL system.
Page 7: Prohibited Uses
Special material versions should be selected for these types of applications. 3.3 Do not use the 3AL on lethal gases. The 3AL is not gas tight and is not intended for these applications.
Page 8: Technical Data
4.0 Technical Data 4.1 Weight Model Weight (empty) Weight Filled with Water lbs/Kg lbs/Kg 3AL2041 105/47.7 138.4/62.9 3AL2061 150/68.2 195.9/89.1 3AL2101 190/86.4 235.9/107.2 3AL2241 360/163.6 495.9/225.4 3AL2251 380/172.7 515.9/234.5 3AL2281 470/213.6 605.9/275.4 3AL2341 580/263.6 715.9/325.4 3AL2430 620/281 785/356.07 4.2 Quantity of Anti-liming Agent Use granulated citric acid or 10% ethanoic acid in the quantity shown in the operating liquid sump filled with the normal amount of water as noted in Table 2-2.
Page 9 3AL2430 1.85/7 4.4 The 3AL is an air cooled unit and therefore sufficient space as noted in this table must be allowed around the unit to ensure adequate air flow for cooling and proper operation. Front refers to the air inlet through the heat exchanger; back refers to the air outlet through the perforated metal grid and side refers to any other side of the unit.
Page 10: Transportation & Handling
5.0 Transportation and Handling 5.1 The 3AL liquid ring vacuum system is designed to be lifted easily by a forklift; this is the recommended method of transport. 5.2 If lifting the 3AL using a crane, use two lifting belts routed below the system in the area where the forklift would normally lift the unit.
Page 11 6.5 Consider local installation details to minimize vibration. Maximum vibration allowed is 0.177 inches/sec (4.5 mm/sec). Consult a vibration expert if this value is exceeded. For most applications, a special foundation or base plate is not required to achieve this level of vibration and the unit can simply be bolted to the floor.
Page 12 6.7 Once the electrical connections are complete, reattach the junction box cover and then reattach the 3AL metal cover sheets, ensuring that the wire is properly routed through the cut out in the side sheet near the bottom of the unit.
Page 13 6.10.1.1 Remove the pipe plug before connecting the inlet. The pipe plug is inserted prior to shipment to keep foreign bodies out of the operating liquid sump. 6.10.2 A check valve is included with each 3AL system and additional check valves are not required.
Page 14: Start-Up
6.13.5 Add a discharge pressure switch if connecting the system to a downstream process which could cause excessive back pressure onto the unit. 7.0 Start-up 7.1 Visually check the operating liquid level in the operating sump on the liquid level gauge on the back of the unit. Add or remove water as necessary to achieve a level of water just below the level of the overflow connection.
Page 15: Operation
9.0 Operation 9.1 Continuous operation at a maximum vacuum is possible. The power consumption of the vacuum system is at its lowest at this operating condition. In case of no load operation, we recommend operation at this condition (e.g. with the inlet blanked off from the process) rather than open flow to atmosphere.
Page 16: Servicing
10.3.3.3 Repeat this procedure until the system is free of debris or foreign matter. 11.0 Servicing 11.1 Do not attempt to service the system without consulting Airtech, Inc. for assistance. Normally, no service is required and the need for service may indicate a process problem that must be addressed prior to re-commissioning.
Page 17: Maintenance Chart
Remove the shroud covering the fan (note: cooler may need to be removed to remove the shroud). Turn the fan by hand (do not use leverage). If the shaft will not come free, the unit must be serviced by an authorized service center. Please contact Airtech for assistance.
Page 18 Extreme hard water Soften the water or clean with 10% ethanoic acid on a used as the periodic basis. operating and make- up liquid (Lime To clean with ethanoic acid: content greater than 15 degrees of Drain and clean the system as described in Sections 10.1 hardness) and 10.3.3.
Page 19: Troubleshooting Chart
Impeller Free by hand (see Operator Jammed Maintenance Chart) or de- classify unit if procedure is not successful and contact Airtech for assistance. Trip of motor Incorrect Ensure starter setting is correct Electrician starter at starter setting (check current on nameplate)
Page 20 Pump is Check cavitation protection Operator screeching operating in connection and hose for noise cavitation clogging. range. For additional assistance, please contact Airtech, Inc., 150 South Van Brunt Street, Englewood, NJ, 07631. Phone 1-201-569-1173 or via fax at 201-569- 1696.
Page 23 3AL Parts Lists Refer to the relevant exploded view drawings for parts positioning. 3AL2041 Parts List Position Quan. Description Material 1.01 Tank 1.02 Base [15.82W x 24.50L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07...
Page 25 3AL2061 Parts List Pos. Quan. Description Materials 1.01 Tank 1.02 Base [20.95W x 30.00L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [5.00W x 4.00H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 27 3AL2101 Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [20.95W x 30.00L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [7.00W x 2.86H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 29 3AL2241 Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [29.60W x 43.07L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [10.00W x 6.50H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 31 3AL2251 Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [29.60W x 43.07L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [10.00W x 6.50H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 33 3AL2281 Parts List Pos. Quan. Description Materials 1.01 Tank 1.02 Base [29.60W x 43.07L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [13.00W x 5.80H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 35 3AL2341/3AL2430 Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [29.60W x 43.07L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [12.38W x 4.57H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 37 3AL2041 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank Stainless Steel 1.02 Base [15.82W x 24.50L] Stainless Steel 1.03.1 Side Cover Stainless Steel 1.03.2 Top Cover Stainless Steel 1.04 Front Cover Stainless Steel 1.05 Radiator Cover Stainless Steel 1.06 Baffle Cover Stainless Steel...
Page 39 3AL2061 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank Stainless Steel 1.02 Base [20.95W x 30.00L] Stainless Steel 1.03.1 Side Cover Stainless Steel 1.03.2 Top Cover Stainless Steel 1.04 Front Cover Stainless Steel 1.05 Radiator Cover Stainless Steel 1.06 Baffle Cover Stainless Steel...
Page 41 3AL2101 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [20.95W x 30.00L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [7.00W x 2.86H] Baffle Cover Gasket 1.11 Level Switch Gasket...
Page 43 3AL2241 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank Stainless Steel 1.02 Base [29.60W x 43.07L] Stainless Steel 1.03.1 Side Cover Stainless Steel 1.03.2 Top Cover Stainless Steel 1.04 Front Cover Stainless Steel 1.05 Radiator Cover Stainless Steel 1.06 Baffle Cover Stainless Steel...
Page 45 3AL 2251 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank Stainless Steel 1.02 Base [29.60W x 43.07L] Stainless Steel 1.03.1 Side Cover Stainless Steel 1.03.2 Top Cover Stainless Steel 1.04 Front Cover Stainless Steel 1.05 Radiator Cover Stainless Steel 1.06...
Page 47 3AL2281 Food Grade Parts List Pos. Quan. Description Material 1.01 Tank Stainless Steel 1.02 Base [29.60W x 43.07L] Stainless Steel 1.03.1 Side Cover Stainless Steel 1.03.2 Top Cover Stainless Steel 1.04 Front Cover Stainless Steel 1.05 Radiator Cover Stainless Steel 1.06 Baffle Cover Stainless Steel...
Page 49 3AL2341/3AL2430 Parts List Pos. Quan. Description Material 1.01 Tank 1.02 Base [29.60W x 43.07L] 1.03.1 Side Cover 1.03.2 Top Cover 1.04 Front Cover 1.05 Radiator Cover 1.06 Baffle Cover 1.07 Frame 1.08 Baffle 1.09 Pump Mount [12.38W x 4.57H] Baffle Cover Gasket 1.11 Level Switch Gasket 1.12...
Page 50: Warranty Statement
Airtech, Inc. (“Company”) Warranty Statement Company warrants that on the date of shipment to Purchaser the goods will be of the kind and quality described herein, merchantable, and free of all defects in workmanship and materials. If within one year from the date of initial operation, but not more than eighteen months from date...
Page 51 Marietta, GA 30067 Novato, CA 94949 Tel: 1 888 222 9940 Tel: 770 690 0700 Tel: 415 382 9000 Fax: 201 569 1696 Fax: 770 690 0709 Fax: 415 382 9700 airtech@airtechusa.com airtechsouth@airtechusa.com airtechwest@airtechusa.com CHINA ASIA EUROPE 2nd Building, Pfaffenpfad 5...
