Summary of Contents for Baumr-AG JHKELEBMRB24S

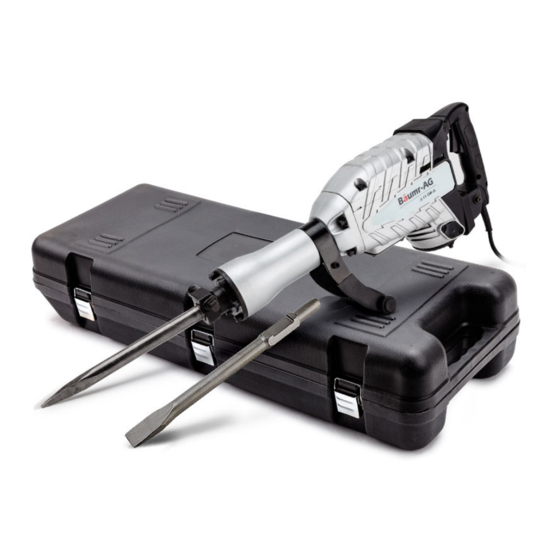

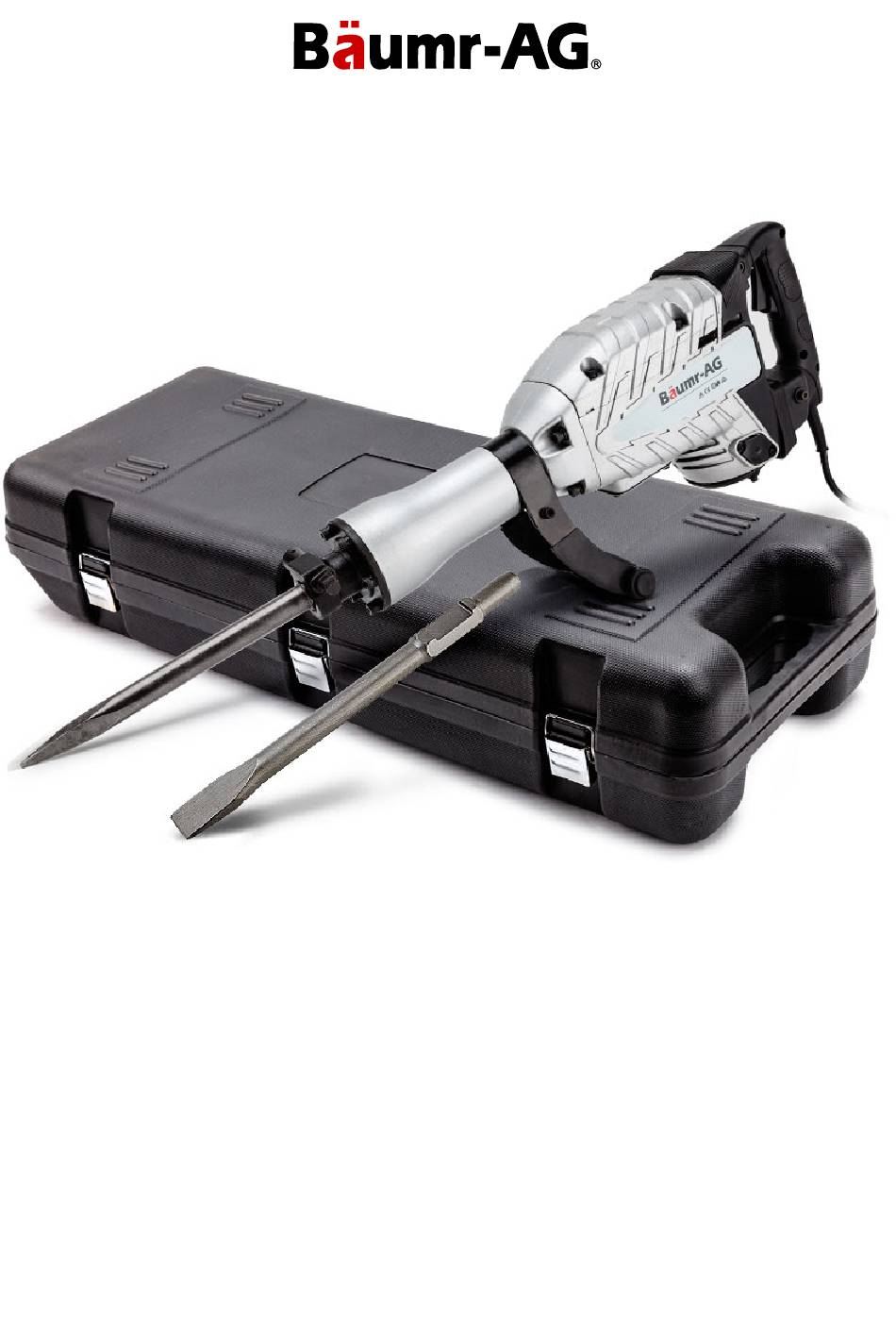

- Page 1 Electric Jackhammer User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Electric Jackhammer Table of Contents Safety Information ............................ 1 Precautions on Using the Electric Jackhammer................. 3 Know your Jackhammer ..........................3 Product Diagram ............................3 Included items ............................... 4 Operation ................................ 4 Inserting/Removing Chisel Bits ........................4 Adjusting the Handle ............................. 5 Using the Jackhammer .......................... -
Page 3: Safety Information
Electric Jackhammer Safety Information WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 Electric Jackhammer b. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hardhat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Avoid accidental starting. Ensure the switch is in the OFF position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
-
Page 5: Precautions On Using The Electric Jackhammer
Electric Jackhammer Precautions on Using the Electric Jackhammer • Wear ear protections. Exposure to noise can cause hearing loss. • Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. • Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns. -
Page 6: Included Items
Electric Jackhammer Included items Please note, safety goggles and gloves are only intended for initial use. If extended use is intended, please purchase higher grade safety items. Also, oil is not included with bottle. Operation Inserting/Removing Chisel Bits 1. Pull locking bolt out 2. -
Page 7: Adjusting The Handle
Electric Jackhammer Adjusting the Handle Loosen the 6mm hex screw (circled in red, left – one on each side) with provided allen key. Turn handle to preferred side (left or right) Using the Jackhammer 1. Squeeze the trigger switch after applying the tip of the bit to the crushing position. In some cases, it is necessary to punch the tip of the bit against the crushing position forcibly in order to begin the striking motion. -
Page 8: Specifications
Electric Jackhammer 4. Refilling gear oil Ensure jackhammer is laid down fully flat. Remove cap with provided hex spanner. Recommended gear oil to use is 75W-90W SAE grade. Depending on usage, this should be done after every 50 hours of usage. 5. - Page 9 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
Need help?
Do you have a question about the JHKELEBMRB24S and is the answer not in the manual?
Questions and answers

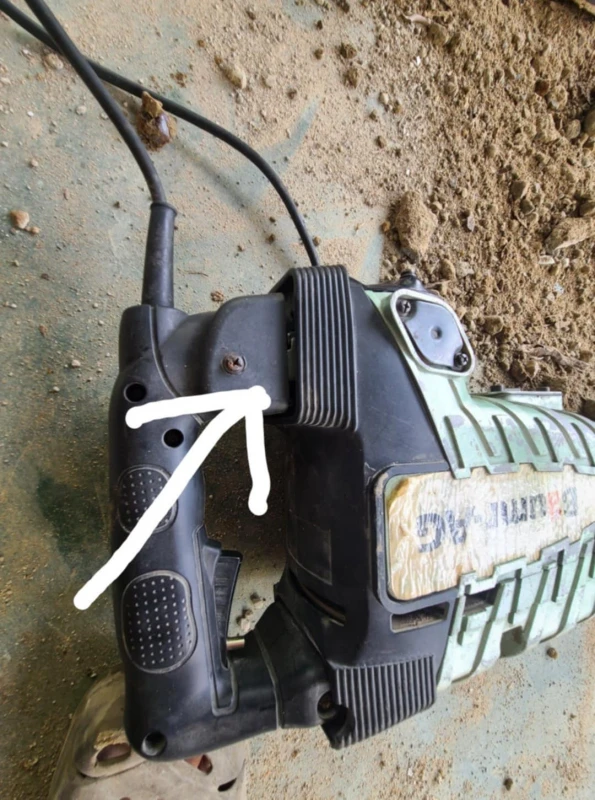

Where can I buy spare parts for the JHKELEBMRB24S jack hammer? The dampener connecting the handle to the unit has separated and damages the wiring to the trigger as it seperates. I need a new lower dampener.
