Snow Dispenser Ice-maker (NSD-151MW)
l In order to use this product properly, read this manual carefully.
l Before using the product, be sure to read and follow the "Warnings and Cautions
for Safety" in the manual.
l Keep this manual in a place where it can be easily seen by users.
l The instruction manual contains a warranty card.
l The performance and design of this ice maker as described in the manual may be
changed without prior notice.
l For sanitary management, be sure to clean and sterilize the product immediately
after each use.
after each use.
l Keep this manual in a safe place for future reference (A/S history record management).
Instruction Manual
Advertisement
Table of Contents
Summary of Contents for ICT NSD-151MW

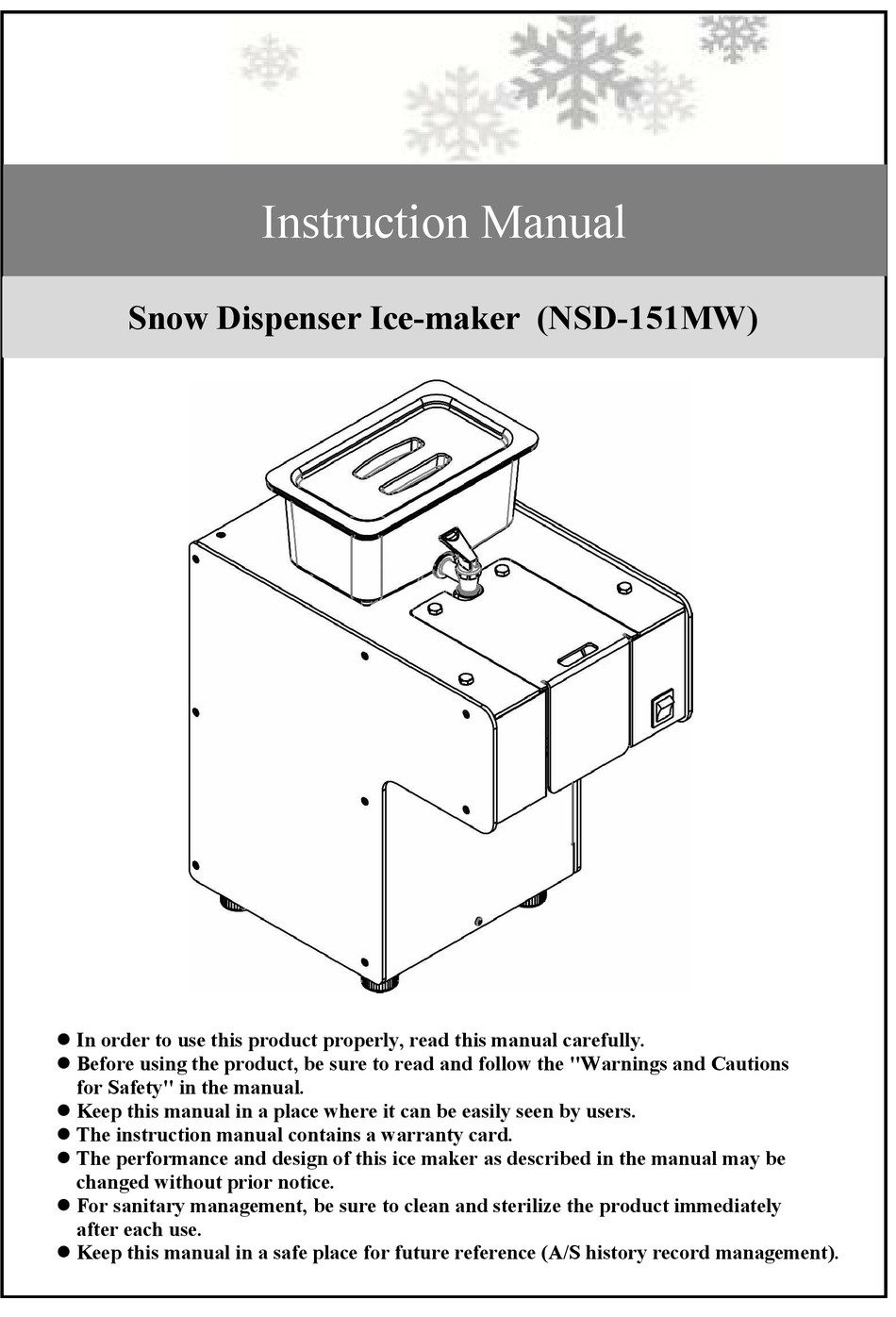

- Page 1 Instruction Manual Snow Dispenser Ice-maker (NSD-151MW) l In order to use this product properly, read this manual carefully. l Before using the product, be sure to read and follow the "Warnings and Cautions for Safety" in the manual. l Keep this manual in a place where it can be easily seen by users.
-
Page 2: Table Of Contents
［ ］ Safety Instruction In order to use the product safely and properly, be sure to read and familiarize yourself with the contents. ［Contents］ 3~ 4 1-1. Safety precautions ---------------------------------- 1. Preparation 1. Preparation 1-2. How to install the product ------------------------ 1-3. -
Page 3: Safety Precautions
Preparation 1-1. Safety precautions Meanings of 【Warning】 and 【Caution】 signs Warning signs indicate a dangerous situation that may lead to injuries including a serious one Warning if the signs are ignored and proper attention is not paid. Caution signs indicate a dangerous situation that is likely to lead to injuries including serious ones Caution and property damage if the signs are ignored and proper attention is not paid. - Page 4 Preparation 1-1. Safety precautions Caution This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: How To Install The Product
Preparation 1-2. How to install the product The rated voltage of this product is AC 220V. Warning - When using the product, insert the power plug into AC 220V electrical outlet. - Use an electrical outlet with 15A or more. - In order to prevent electric shock on person and product damage, install proper ground wire as specified in the electric safety rule. -
Page 6: Names Of Parts
Preparation 1-3. Names of parts Material container cover Material container Material container valve Ice-making drum Power switch Cutter blade Front cover Foot Material container valve Valve lever O-ring (P16) Valve Pressure body adjusting valve Cooling water Power IN O-ring (P14) Cooling water Valve rod Accessories... -
Page 7: How To Install The Drum Plate And
2-1. How to install the drum plate and Operation ice-making material container Drum plate installation ① Lift the drum plate from the drum by ② While aligning the drum plate with the pushing it along the diagonal line. drum, push all the way inside. ③... -
Page 8: How To Start The Ice-Making Operation
Operation 2-2. How to start the ice-making operation Open the valve of the cooling water supply pipe connected to the product. l Water is supplied to the product. l Check the cooling water hose connection, etc. for water leak. Insert the power plug into a properly grounded AC 220V electrical outlet. -
Page 9: Method Of Safe Keeping
2-3. How to start the ice-making operation Operation method of safe keeping Ending the ice-making operation Stop the material feeding by lowering the lever on the material container. l Lower the lever for two or three seconds before the desired ice-making quantity is completed. -
Page 10: How To Wash And Clean On A Daily Basis
Management 3-1. How to wash and clean on a daily basis Washing the ice maker (daily) After the ice-making operation, wash the drum surface, material container, drum plate, etc. on a daily basis. (Failure to do so may cause bacterial growth and bad smell due to the spoilage of the ice-making material.) u Before performing the cleaning operation, be sure to unplug the power plug from the electrical outlet. - Page 11 Management 3-1. How to wash and clean on a daily basis How to remove the material container Structure of the material Structure of the container valve material container Material Valve lever container lid O-ring (P16) Material container Valve body Material container valve O-ring (P14) Valve rod...
-
Page 12: Troubleshooting
Management 3-2. Troubleshooting Symptom Identification Action-taking Is the power switch not pressed? Press the power switch. Is the power plug disconnected from an electrical Insert the power plug into the outlet? electrical outlet. The drum does not operate. Is the fuse damaged? Contact the A/S center. -
Page 13: Electrical Circuit Diagram
4-1. Electrical circuit diagram specifications Product 4-2. Performance and specifications specifications Manufacturer Manufacturer ICT Nakajo Co., Ltd. ICT Nakajo Co., Ltd. Product name / Brand Product name / Brand SNOW DISPENSER-TYPE ICE-MAKER / SNOW VAN SNOW DISPENSER-TYPE ICE-MAKER / SNOW VAN Model name... -
Page 14: Warranty Card
Product 4-3. Warranty card specifications Warranty card Product name Snow Dispenser-type Ice-Maker Warranty period Model name NSD - 151MW 1 year Manufacturing no. ▶ This product was shipped to the market after undergoing thorough quality control and strict tests and inspection. ▶... - Page 15 MEMO Product repair history Name of Date Details of malfunction Details of repair Phone no. technician...
- Page 16 Manufacturer ICT Nakajo Co., Ltd. 65, Yongdu-ro, Daegot-myeon, Gimpo-si, Gyeonggi-do (postal code) 415-837 Tel.: 031-998-0645, Fax: 031-998-0644 Seller Nakajo International Co., Ltd. 709, Seoulsup IT valley, 77, Seongsuil-ro, Seongdong-gu, Seoul Tel.: 1644-7204, Fax: 02-6965-7373 Tel.: 1644-7204, Fax: 02-6965-7373...
