Getting Started with Wink
Learning Wink's Basic Operation
Before you get started, please have a read over this quick guide to get started working
with your Wink robot.

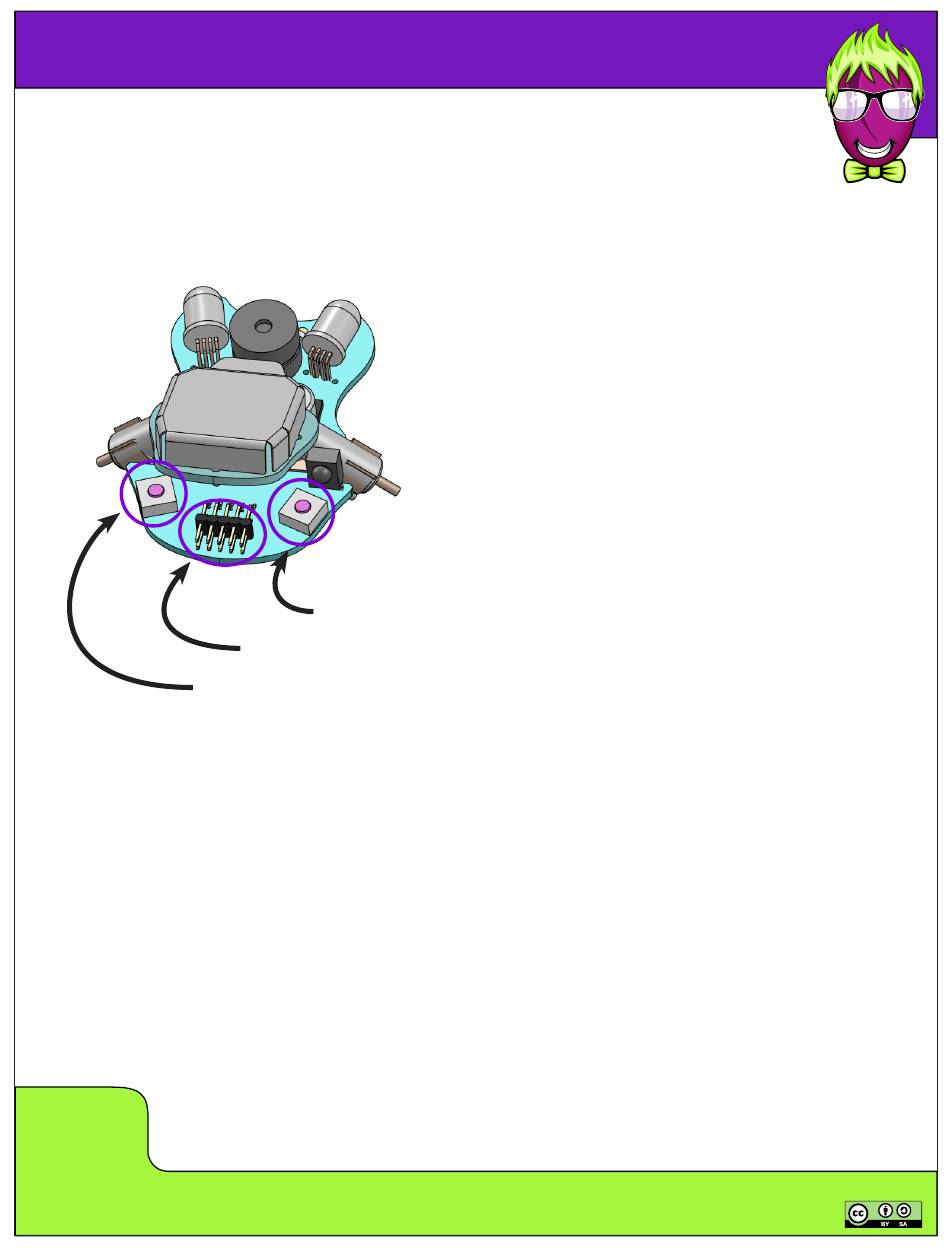

Power Button
User Button
The user button can be used to index between the pre-loaded behaviors shipped with Wink.
The button can also be read by your code and used to make the robot carry out or change
behaviors. Have a look at Learn to Code Lesson 4 to see how to use the button.
1
SKILL
LEVEL
User Button
Programming Port
Power Button
Press the Power Button labeled "PWR" for
about 1/2 second to turn on Wink's power.
A power indicator LED just forward of the
power button will light and remain lit while
the power is on.
To turn the power back off, press the Power
Button again for a brief time. The power
indicator LED will turn off.
The power must be on to sucessfully upload
code to Wink.
Programming Port
Connect the ribbon cable from the
programming adapter to these pins.
BE SURE TO CONNECT TO ALL 10 OF
THE PINS.
It is easy to accidentally connect to just the
top row of pins.
Uploading new code can be started at
any time, even while other code is already
running on the robot. The programmer
automatically resets the robot before loading
new code.
Learn to Code - Ch01 Rev01.3 ~ Plum Geek
