Summary of Contents for LAPIS Semiconductor MK715x1 Series
- Page 1 FEXK715x1_RC_Quick_Guide-01 MK715x1 Remote Controller Application Quick Reference Guide Issue Date: November 30, 2020...
- Page 2 MK715x1 Remote Controller Application Quick Reference Guide Notes 1) The information contained herein is subject to change without notice. 2) When using LAPIS Technology Products, refer to the latest product information (data sheets, user’s manuals, application notes, etc.), and ensure that usage conditions (absolute maximum ratings, recommended operating conditions, etc.) are within the ranges specified.
-
Page 3: Preface
MK715x1 Remote Controller Application Quick Reference Guide Preface ® This document is the quick reference guide for the remote controller application for Bluetooth 5 compatible Bluetooth low energy module MK71511 and MK71521 made by Lapis Technology. The following related documents are available, so please refer to them if necessary. •... -
Page 4: Notation
MK715x1 Remote Controller Application Quick Reference Guide Notation Category Notation Description ● Value 0xnn Represents a hexadecimal number. 0bnnnn Represents a binary number. ● Address 0xnnnn_nnnn Represents a hexadecimal number. (indicates 0xnnnnnnnn) ● Unit Word, WORD 1 word = 32 bits Byte, BYTE 1 byte = 8 bits Mega, M... -
Page 5: Table Of Contents
MK715x1 Remote Controller Application Quick Reference Guide Table of Contents Notes ....................................i Preface .................................... ii Notation ...................................iii Table of Contents ................................iv 1. Overview .................................. 1 2. Operating Procedure ..............................2 2.1. Installing Software ............................. 2 2.2. Starting Application ............................2 3. -
Page 6: Overview

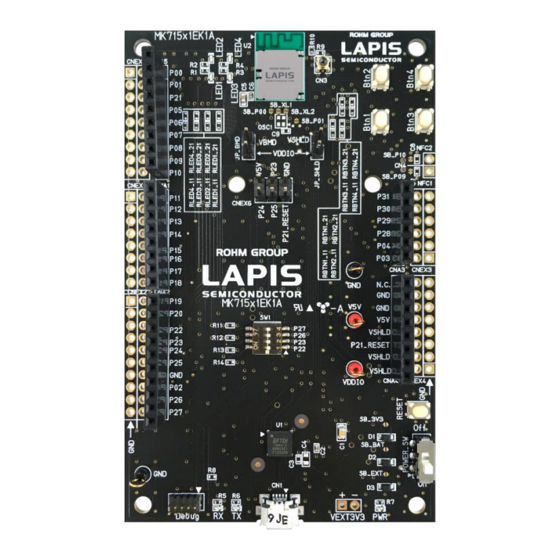

MK715x1 Remote Controller Application Quick Reference Guide Overview 1. Overview The remote controller application employing the beacon function of Bluetooth Low Energy allows users to transmit button pressing information to other devices wirelessly. This application can be implemented effortlessly using the switches, buttons, and LEDs on the MK715x1 evaluation kit (MK715x1EK1A). -
Page 7: Operating Procedure
MK715x1 Remote Controller Application Quick Reference Guide Operating Procedure 2. Operating Procedure 2.1. Installing Software Write the software of the remote controller application to the MK715x1 evaluation kit. For more information on the software installation, refer to Chapter3 Environment Settings. The figure shows the board functions after installation. (4) Data reception indicator LED1-LED4... - Page 8 MK715x1 Remote Controller Application Quick Reference Guide Operating Procedure Communication enabled Receiver 1 Transmitter Communication disabled Receiver 2 STEP (4) Data transmission Press the buttons (Btn1-4) on the transmitter. The LED (LED1-4) on the receiver corresponding to the buttons will light up. The LED will turn off after two seconds. Btn1 is pressed LED1 lights up Transmitter side...
-
Page 9: Environment Settings
MK715x1 Remote Controller Application Quick Reference Guide Environment Settings 3. Environment Settings This chapter explains how to set up the environment for running the MK715x1 remote controller application. This document describes the write procedure using nRF Connect Programmer. 3.1. Installing nRF Connect Programmer Go to the following URL and install nRF Connect for Desktop. - Page 10 MK715x1 Remote Controller Application Quick Reference Guide Environment Settings LAPIS Technology's support site: https://www.lapis-semi.com/cgi-bin/MyLAPIS/regi/login.cgi (English) https://www.lapis-semi.com/cgi-bin/MyLAPIS/regi/login_J.cgi (Japanese) ZIP file of MK715x1 Software Development Kit: mk715x1_sdk_rc_verXXX.zip * XXX indicates a version number. Hex file storage folder: .¥mk715x1_sdk_rc_verXXX¥software¥examples¥lapis¥mk715x1_rc¥hex Remote controller application code: mk71511ek1a_rc_rYYY.hex (for MK71511EK1A/MK71511EK1AP) mk71521ek1a_rc_rYYY.hex (for MK71521EK1A/MK71521EK1AP) * YYY indicates a revision number of the code.
-
Page 11: Log Function
MK715x1 Remote Controller Application Quick Reference Guide Log Function 4. Log Function The log can be displayed by connecting a PC to the transmitter or the receiver. Start the terminal software such as TeraTerm and set the serial port as follows: Setting item Setting value Port... - Page 12 MK715x1 Remote Controller Application Quick Reference Guide Log Function Message during transmission Transmitter side <info> app: seq=0x00 bat=100% gid=0x00 cid=0x01 (1) Transmitted data Sequence number Remaining battery level Group ID value Control ID value Receiver side <info> app: Save Adrs 0xYYYYYYYYYYYY to list <info>...
-
Page 13: Revision History
MK715x1 Remote Controller Application Quick Reference Guide Revision History Page Document No. Issue date Remarks Before After revision revision FEXK715x1_RC_Quick_ Nov. 30, 2020 1st edition. Guide-01 FEXK715x1_RC_Quick_Guide-01...
