- Page 1 neos DIGITAL REF. 751822 REF. 751812 SISTEMA NO-COAX COAXLESS SYSTEM Bringing people together...
-
Page 2: Descripción Description

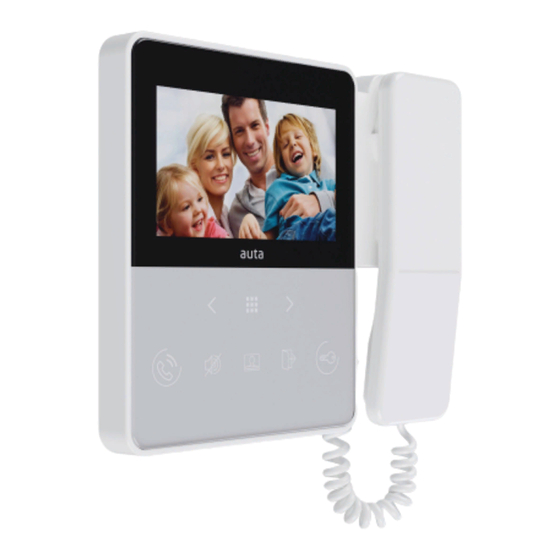

COAXLESS digital monitor. It can be installed, using 6 wires, on any Auta COAXLESS digital system. It incorporates a widescreen LCD COLOUR 4.3 ”, touch technology, DUAL audio (hands-free and handset), auxiliary multi-function outputs, selection of melodies, special functions. - Page 3 neos Bringing people together Montaje Mounting (clack) Soporte NO INCLUIDO Bracket NOT INCLUDED Instalación Installation Monitor como principal Monitor as main Monitor como secundario Monitor as secondary 2ºA 2ºB 2ºA COD. 7 COD. 8 COD. 7 COD. 7 Manual de instalación VIDEO NO-COAX Installation manual VIDEO COAXLESS Configuración Configuration Configuración del sistema digital...
- Page 4 El monitor dispone de 1 pulsador que permiten realizar maniobras auxiliares, como el accionamiento de puertas de garaje, encendido de luces, riego, etc... Para ello se usará un relé auxiliar Auta conectado al circuito de maniobra que se desee controlar.
-
Page 5: Privacy Function
Validate the selection by pressing the button external functions The monitor has 1 push-button that allow auxiliary functions, such as garage doors, lights, irrigation, etc ... To do this, an Auta auxiliary relay must be connected to the control circuit we want to control. - Page 6 Monitor configured as secondary shows image automatically during the call. Valores de fábrica Factory settings Re-armado: Presionar , presionar 4 segundos. Validar presionando (activado, parpadeo lento) Re-enable: Press , press for 4 seconds. Validate by pressing (activated, slow blink) auta.es Bringing people together HI-713 _ V 1.2...
