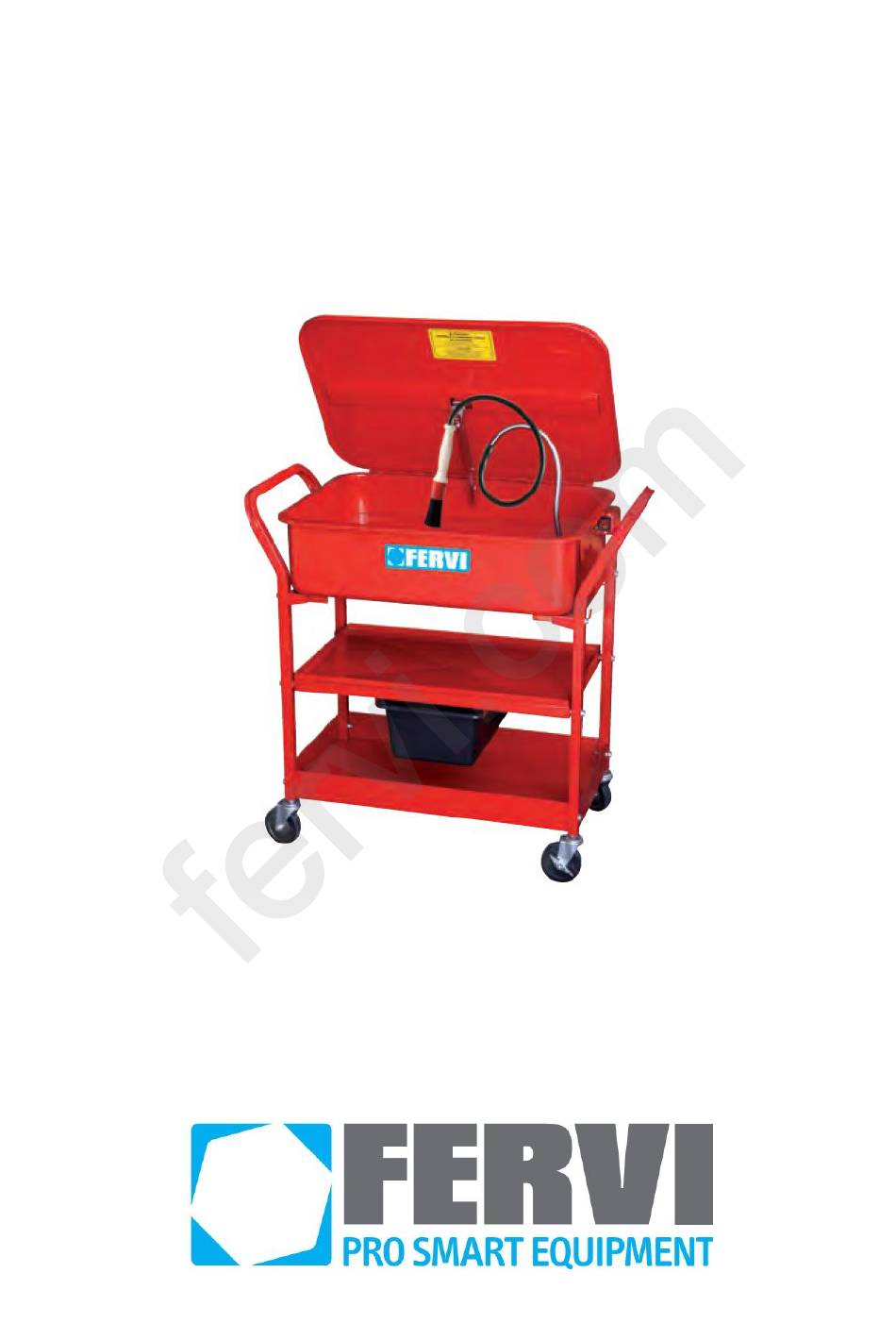

- Page 1 OPERATION AND MAINTENANCE MANUAL Degreaser cleaning tank with wheels Art. 0232 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the machine may also be subject to important technical changes in the future, without the Manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 2 November 2013...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS INTRODUCTION ..................4 Preface..........................4 SAFETY WARNINGS .................. 5 General safety rules for machine tools ................5 Safety regulations for the electrical system ..............6 Technical support......................7 Other provisions ......................7 TECHNICAL SPECIFICATIONS ..............8 DESCRIPTION OF THE EQUIPMENT ............9 Description of the main parts.................. -
Page 4: Introduction
This manual is designed to provide the knowledge required for the use and maintenance of the Degreaser cleaning tank with wheels Art. 0232 and to provide the operator assigned to the device with a sense of responsibility and knowledge of its possibilities and limitations. -
Page 5: Safety Warnings
MACHINES AND ACCESSORIES 2 SAFETY WARNINGS 2.1 General safety rules for machine tools Risks associated with using the equipment DO NOT underestimate the risks associated with using the machine and concentrate on the work in progress. Risks associated with using the equipment Despite the implementation of all the safety devices for safe use of the equipment, it is necessary to take note of all the accident prevention requirements highlighted in various parts of this manual. -
Page 6: Safety Regulations For The Electrical System
MACHINES AND ACCESSORIES 4. Use only specific chemical products for cleaning mechanical parts as stated by the manufacturer and use them according to the indications provided. 5. Used cleaning liquids must be disposed of in accordance with current standards regarding environmental hygiene. 6. -
Page 7: Technical Support
MACHINES AND ACCESSORIES 3. The power cable must be checked regularly, taking care not to come into contact with hot objects, wet or oiled surfaces, and / or sharp edges. 4. Do not use the power cord to remove the plug from the socket or move the equipment. 2.3 Technical support For any problems or concerns, please contact, without hesitation the Customer Service Department of your dealer, who has competent and specialized staff, specific equipment and... -
Page 8: Technical Specifications
MACHINES AND ACCESSORIES 3 TECHNICAL SPECIFICATIONS Model Art. 0232 Weight (kg) External dimensions 970 x 540 x 930 h Tank capacity - liquid level (l) Power supply (V / Hz) 230 / 50 Power (W) Pump flow rate (l/min) Level of IP protection... -
Page 9: Description Of The Equipment
MACHINES AND ACCESSORIES 4 DESCRIPTION OF THE EQUIPMENT The cleaning tank was constructed for the cleaning of small mechanical parts and motor components in general, using a liquid detergent. Type of Detergent Do not use corrosive or flammable detergents that can release toxic and/or harmful vapours into the atmosphere. -
Page 10: Description Of The Main Parts
MACHINES AND ACCESSORIES 4.1 Description of the main parts Figure 1 – Main parts Art. 0232. Tank cover Cleaning tank Cover locking latch Drying shelf Pump nozzle Collection tank Piece-holder grill Support shelf Handle for movement Swivel wheel with brake... -
Page 11: Identification Plate
MACHINES AND ACCESSORIES 4.2 Identification plate On the cleaning tank there is an identification plate bearing the CE marking and the following data: The name and address of the manufacturer; Article code; Lot number; Year of construction; ... -
Page 12: Equipment Safety Devices
MACHINES AND ACCESSORIES 5 EQUIPMENT SAFETY DEVICES 5.1 Submersible pump The equipment is supplied with a submersible pump with an IP X8 degree of protection, this means that it can be left immersed in liquid, without danger. Cleaning liquids The pump is guaranteed against water infiltration. If you use different liquids you must make sure that they do not damage the power cord, the seals and the plastic casing of the pump. -
Page 13: Commissioning Of The Tank
MACHINES AND ACCESSORIES 6 COMMISSIONING OF THE TANK 6.1 Assembly For the references inside the figures, see section 9.2 of this manual. Proceed as follows to assemble the equipment: 1. Attach the handle (4) to the left side of the lower shelf (13), using the bolts (2) and (3) provided. - Page 14 MACHINES AND ACCESSORIES 9. Tighten all the bolts. 10.Lie the tank down, resting it on its back and mount the spring lock washer (39) and the swivel wheel (1) under the right side of the handle. Figure 8 – Close-up of the swivel wheel.
-
Page 15: Electrical Connection
MACHINES AND ACCESSORIES Pump start-up Before operating the submersible pump check that the water level in the tank is higher than the level of the pump feed. 13.Insert the drip tray into the guides on the intermediate shelf. Figure 11 – Close-up of the tank. 6.2 Electrical connection In order to use the Cleaning Tank it is necessary to connect the equipment to the power supply 230 V / 50 Hz, fitted with a protective conductor and a grounding system. -
Page 16: Operation
MACHINES AND ACCESSORIES 7 OPERATION 7.1 Instructions for Use Before starting work perform a control of the Tank, and in particular: check that the power cord is intact and properly connected; check that the tank's drain plug is in place and properly tightened; ... -
Page 17: How To Empty The Tank
MACHINES AND ACCESSORIES 7.3 How to empty the tank 1. Turn off the pump and disconnect the power cord from the power outlet. Figure 14 - close-up of the button. 2. Place a drip container of suitable capacity under the drain plug located on the left side of the tank, resting it down on the intermediate shelf. -
Page 18: Maintenance
MACHINES AND ACCESSORIES 8 MAINTENANCE 8.1 Routine maintenance Maintenance Every time maintenance is carried out or the replacement of parts, disconnect the power supply cable. To ensure the safe operation of the Cleaning tank it is necessary to regularly perform the following control and maintenance operations. -
Page 19: Spare Parts
0232/15 Electric cable 0232/35 Hex nut M5 0232/16 Cable sleeve 0232/36 Flat washer 0232/17 Switch box. 0232/37 Screw M5x20 0232/18 Screw 0232/38 Drain plug 0232/19 Flat washer Ø 4 0232/39 Spring lock washer 0232/20 Switch 0232/40 Washer Page 19 of 21... -
Page 20: Troubleshooting
MACHINES AND ACCESSORIES 10 TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Add more water Liquid does not Little liquid in the tank Clean the pump filter. comes out of the Pump filter clogged Clean the flexible hose and the tube. Nozzle is blocked pump filter The liquid does not Remove sediment from the... -
Page 21: Disposal Of Materials
MACHINES AND ACCESSORIES 11 DISPOSAL OF MATERIALS If the equipment is to be scrapped, its parts must be disposed of separately. Respect the environment! Contact a specialist centre for the collection of metallic materials. Separate the materials according to their nature, with the assistance of specialist companies authorized for waste disposal, in compliance with the requirements of the law.
