C-TEC CAST CA738 Installer's Manual

CA738 CAST 1-CHANNEL SOUNDER CONTROLLER
INSTALLER'S GUIDE
THIS EQUIPMENT MUST BE INSTALLED AND MAINTAINED BY A SUITABLY SKILLED AND
TECHNICALLY COMPETENT PERSON. ENSURE ALL POWER IS REMOVED BEFORE INSTALLATION.
Product Description

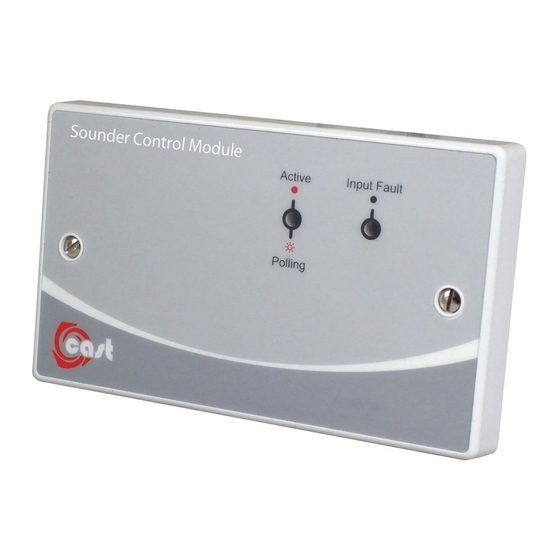

The CA738 is CAST protocol addressable sounder
controller with one conventional sounder circuit,
designed to control a small group of sounders /
VADs. It is compatible with CAST ZFP/XFP panels
and other 'CAST' compatible fire panels. It mounts
on a standard 35mm deep UK double-gang back
box being short circuit proof and monitored per BS
5839-1.
Features
• Compatible with C-TEC's CAST ZFP / XFP panels.
• Compatible with C-TEC's ActiV range of conventional sounders and VADs.
• Loop powered and allocated a single loop address by the fire panel.
• Sounder activation and deactivation controlled by the fire panel.
• Sounder circuit wiring monitored for open or short circuit faults.
• On-board, bi-directional, short-circuit isolator.
• Standard 35mm deep UK double-gang back box mounting.
Technical Specification
Description:
Sounder Circuit Load:
Operating Voltage:
Quiescent Current:
Alarm Current:
Monitoring:
Communication Protocols:
LED Indicators:
Dimensions (mm):
Weight:
Operating Temp.:
CAST Range
CA738 CAST 1-Channel Sounder Controller
50mA max. @ 20V
22 to 40Vdc
530µA
3mA
27K EOL. S/C and O/C monitored.
C-TEC's CAST / CAST-PRO.
Active (Steady Red LED) - Sounder circuit activated.
Polling (Flashing Red) LED - Communication check with the CIE.
Fault (Steady Yellow) LED - Wiring fault (open or short circuit) detected on the
monitored sounder circuit.
147 (W) x 87 (H) x 25 (D) Body Material:
115g
-10 C to +55 C
o o
Approved Document No. DFU0007380 Rev 1
Read these instructions before installation and operation
IP Rating (EN 60529): IP40 (indoor use only)
Humidity:
PVC
Max. 95% RH (non-condensing)
1 of 2
