Summary of Contents for EefaCo.Store PROTEAK 701

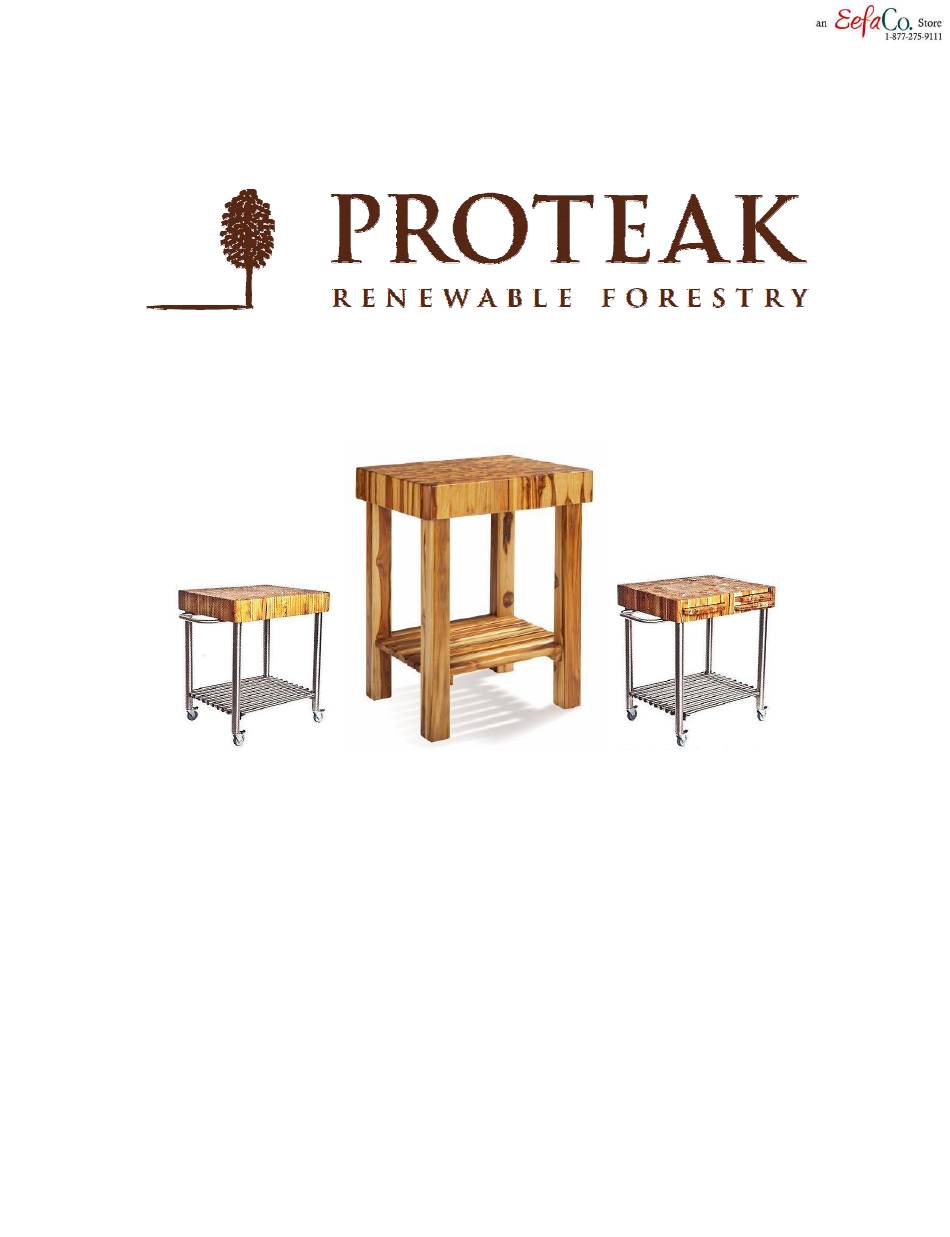

- Page 1 Butcher Block Cart Assembly Instructions Applies to all 2010 models Wood or Stainless Steel bases with or without wheels 701 – 703 – 705 – 707 – 710 – 711 – 713 – 715...
- Page 2 Congratulations on the purchase of your new ProTeak Butcher Block Cart! With proper assembly, use, and care, we are certain you will find many years of enjoyment with our product. Tools required for assembly: #2 Phillips screwgun or electric drill with a #2 Phillips tip standard #2 Phillips screwdriver Hex key or hex bit, size 5/32”...
- Page 3 STEP 2 Attaching the legs The legs and top of your cart model may be numbered. (fig 2.1) Match the correct leg to the appropriate position. If the legs are not numbered on your cart model then they can be attached at any corner HOWEVER take note below. Each leg has a hole punched near the floor end.
- Page 4 STEP 4 Attaching the Shelf The shelf will slide down between the legs and may be a somewhat tight fit. Also, be aware of the top-bottom orientation of the shelf (fig 4.1) so that the shelf is in the correct position when the cart is turned upright. The underside of the shelf should be “up”...
