Summary of Contents for SCI PEM-HG

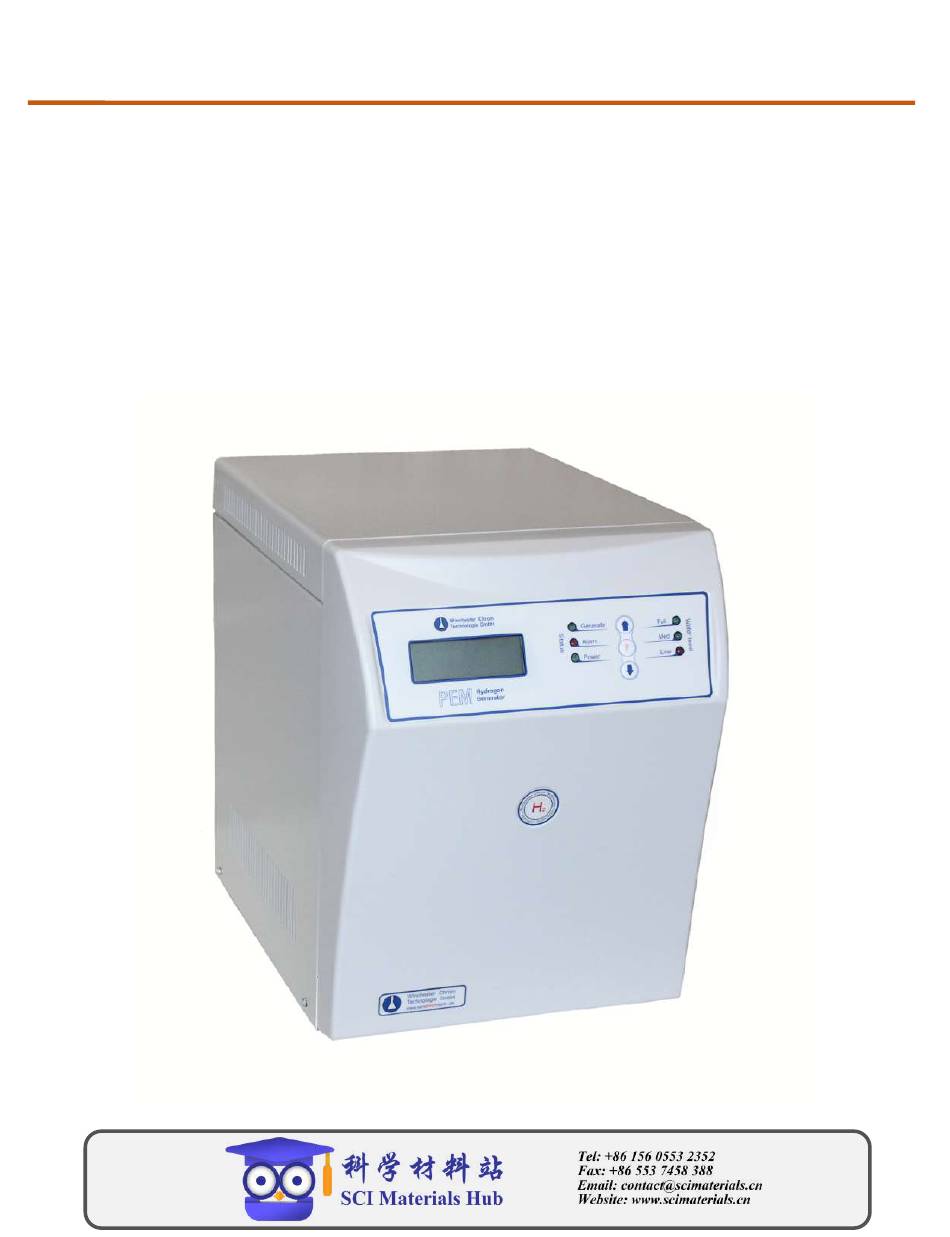

- Page 1 PEM Hydrogen generator quick instruction manual Quick Instruction manual PEM-HG PEM Hydrogen Generator...
- Page 2 PEM Hydrogen generator quick instruction manual Technology: This hydrogen generator use PEM membrane and electrolysis of pure water to produce pure hydrogen up to 99.9995% PEM Hydrogen generator structure Drain 1‐ Silica gel filter Water Tank 2‐ M‐Sieve filter Water Quality Distillated water H2 out 300 0.5 micro Water ml/min ...
- Page 3 PEM Hydrogen generator quick instruction manual Key board and LCD Increase Set Value Function Key to toggle Decrease Set between Pressure and Value Overflow LCD at normal mode Line 1: Winchester chrom technologie GmbH Line 2: H2 generation flow (ml/min) Line 3: H2 output pressure (PSI) Line 4:...
-
Page 4: Status Led
PEM Hydrogen generator quick instruction manual Generate Light: shows the hydrogen generation and intensity of LED light depend on amount of generation Alarm Light: if blink it shows one alarm and beep began to sound every 10 second and the alarm message appear at line 4 LCD (refer to Alarm section) -
Page 5: Alarm Message
PEM Hydrogen generator quick instruction manual Alarm message Line 4 LCD error list: Water empty error Cause: the water tank is empty Action: H2 generation stop, alarm Light blinks and buzzer sound every 10 second Trouble shooting: fill water tank with distillated water ... - Page 6 Use only de ionized pure water less than 0.5 micro Siemens /cm or more than 2 Mega ohm/cm PEM-HG maximum H2 generation is 300 ml/min and at continuous consumptions use 70% of maximum capacity 210 ml/min...
- Page 7 PEM Hydrogen generator quick instruction manual Filter There are 3 filters at output of electrolyses cell 1- Water trap that automatically remove more water from produced hydrogen. 2- Silica gel filter with blue color that absorb more water vapor and it’s color change to pink when it is saturated 60% (Pink color) must be regenerate in oven at 120 °...
-
Page 8: How Does It Work
PEM Hydrogen generator quick instruction manual Optional security H2 overflow consumption control H2 Flow Control Out put 3 port Hydrogen valve (H2) GC or other hydrogen consumer Neutral (N2) How does it work: There is an event output that is controlled by SET Flow, when real flow exceed the set flow more than 60 second then system realize an overflow (it may be of broken column in GC oven or any other leak in the stream of hydrogen) - Page 9 PEM Hydrogen generator quick instruction manual AC 220 volt 50 Hz 150 Watt – Fuse 5 A glass Body and setup of the instrument At following condition the guaranty service is not free of charge users do not operate the generators according to the operational manual ...
