Summary of Contents for Insportline 2043

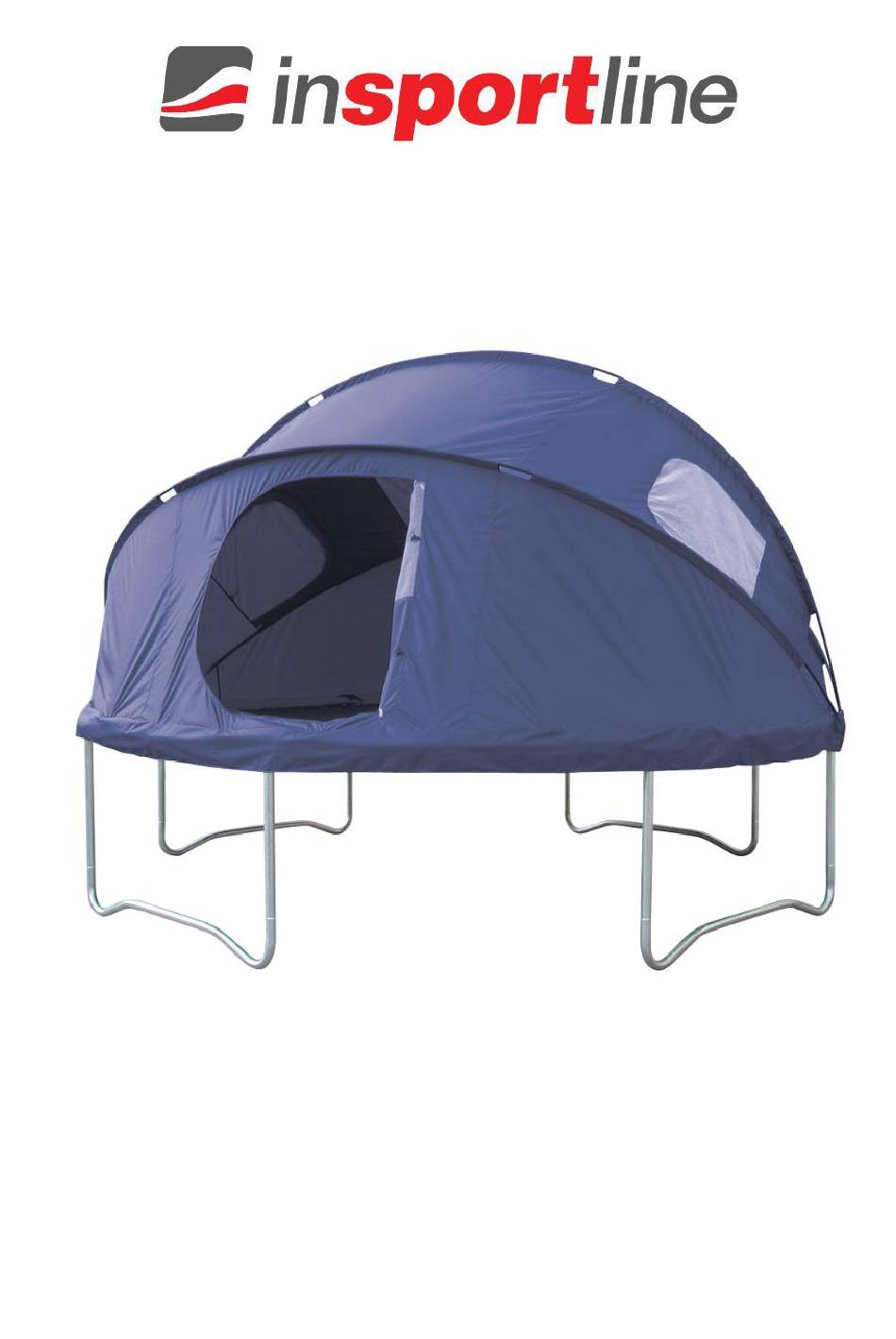

- Page 1 USER MANUAL – EN IN 2043, 2045 Trampoline Tent – 224 cm, 366 cm...
- Page 2 CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................3 ASSEMBLY ............................. 4 FOLDING ..............................6 STORAGE ............................... 7 ENVIRONMENT PROTECTION ......................7 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ........... 7...
- Page 3 SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future references. • Read the manual carefully before assembly. • Assembly can me only done by adult person. • The tent can be used only under adult supervision. • Keep away any heat sources and keep away from open fire and flames.
- Page 4 Tent Tube Φ42 Tube Φ38 ASSEMBLY STEP 1 Assemble the three fiberglass poles by joining the three sections with connectors on the poles. Inside a pole is an elastic cord to keep them together. The poles should have the same length. Be careful not to squeak your fingers into the moving parts.
- Page 5 STEP 2 Now place the tent on the trampoline and decide where will the entrance face. Entrance is marked by “D” and has a zipper on the outside and inside. This will be the main entrance. Make sure that there are 3 sleeves that divide the tent into 4 parts and sleeves are up against the top frame (the curved parts of tent are against the mat) Now slide the poles through the sleeves.
- Page 6 Φ38 Locate two opposite legs of the trampoline. Place the tubes to thicken the trampoline legs. Place the brackets onto the trampoline frame, place the curved part onto the frame. Make sure it is placed from inside out and is placed against the trampoline leg. Then attach the pole holders to the bracket and connect them with the screw.
- Page 7 STORAGE Make sure that the tent is dry. Follow the assembly steps in reverse. The tent brackets do not need to be removed. Store the tent in dry and shade place. ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard.
- Page 8 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
