Variotech ENA3 Manual

Ucm safety control in accordance with en81-20 5.6.7 - to prevent an unintended car movement
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual and data sheet for

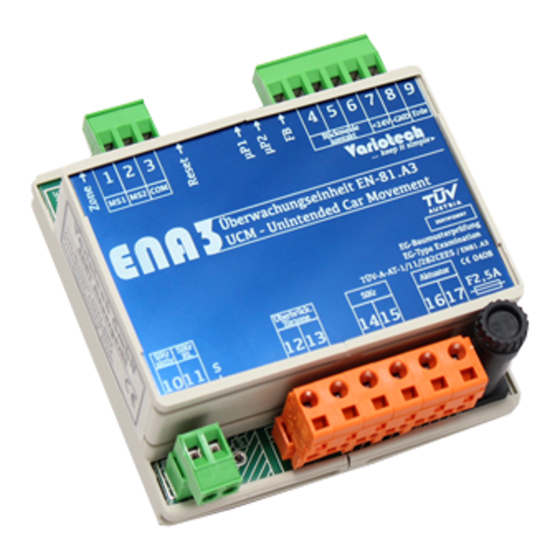

ENA3 UCM Control
Manual
UCM safety control in accordance
with EN81-20 5.6.7 - to prevent an
unintended car movement
Manual: ENA3 Version 1.3
All rights to this manual are owned by company Variotech GmbH.
Copies for internal purposes may be made.
In preparing this manual we have used the utmost care, but we cannot guarantee the accuracy of
this manual, because mistakes cannot be avoided 100%.
The contents of this manual can be changed anytime without notice. For improving information we
will be grateful.
This safety control is designed exclusively for use in a lift control system and may be used only as
specified in this manual.
This description contains the information necessary for the intended use of the controller.
Knowledge about the safety of the operating field 'Lift' is assumed.
These skills are fundamental for the understanding of this description.
ENA3 UCM Control Manual Version 1.3
Date:
page 1 of 12
21.04.2017
Variotech GmbH, Gewerbeweg 5, 2230 Gänserndorf, Tel +43 2282 60310, https://variotech.com
