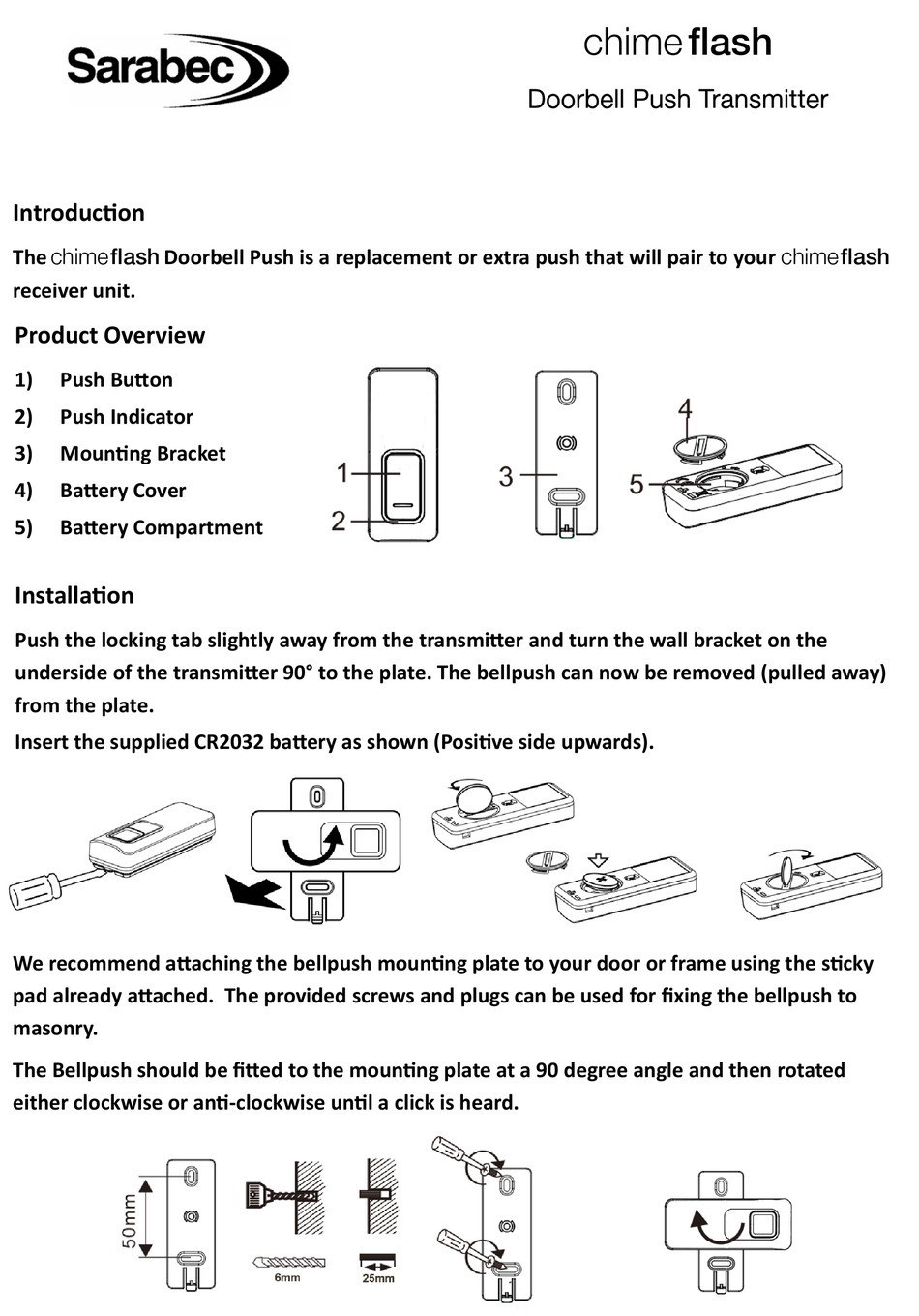

Introduc on
The
Doorbell Push is a replacement or extra push that will pair to your chime flash
chime flash
receiver unit.
Product Overview
1) Push Bu on
2) Push Indicator
3) Moun ng Bracket
4) Ba ery Cover
5) Ba ery Compartment
Installa on
Push the locking tab slightly away from the transmi er and turn the wall bracket on the
underside of the transmi er 90° to the plate. The bellpush can now be removed (pulled away)
from the plate.
Insert the supplied CR2032 ba ery as shown (Posi ve side upwards).
We recommend a aching the bellpush moun ng plate to your door or frame using the s cky
pad already a ached. The provided screws and plugs can be used for fixing the bellpush to
masonry.
The Bellpush should be fi ed to the moun ng plate at a 90 degree angle and then rotated
either clockwise or an ‐clockwise un l a click is heard.
chime flash
Doorbell Push Transmitter
Advertisement
Related Manuals for Sarabec chime flash 150-021
Summary of Contents for Sarabec chime flash 150-021
- Page 1 chime flash Doorbell Push Transmitter Introduc on Doorbell Push is a replacement or extra push that will pair to your chime flash chime flash receiver unit. Product Overview 1) Push Bu on 2) Push Indicator 3) Moun ng Bracket 4) Ba ery Cover 5) Ba ery Compartment Installa on Push the locking tab slightly away from the transmi er and turn the wall bracket on the underside of the transmi er 90° to the plate. The bellpush can now be removed (pulled away) from the plate. Insert the supplied CR2032 ba ery as shown (Posi ve side upwards). We recommend a aching the bellpush moun ng plate to your door or frame using the s cky ...
- Page 2 Once the desired melody is selected press the setup bu on to exit the setup mode. Sarabec Ltd Sarabec Ltd declares that chimeflash complies with all relevant UK 15 High Force Road Statutory Instruments. Middlesbrough United Kingdom Sarabec Ltd declares that chimeflash complies with all relevant EU TS2 1RH direc ves. Telephone: 01642 247789 email: mail@sarabec.co.uk Sarabec’s EU authorised representa ve: HUMANTECHNIK GmbH, website: www.sarabec.com Im Wörth 25, D‐79576 Weil am Rhein , Germany. Full system instruc ons available on our website. The full declara on of conformity for the Chimeflash is available This item carries a 1 year guarantee, please contact from Sarabec Ltd. your point of sale in the event of any issues. The Wheelie bin logo is the industry wide symbol for this type of product. The symbol, when appearing on electronic product, indicates that the item should NOT be treated as ordinary household waste when due for disposal. chimeflash Doorbell Push Tx Issue 1 May 2021...
