EN
Continuous Clocking

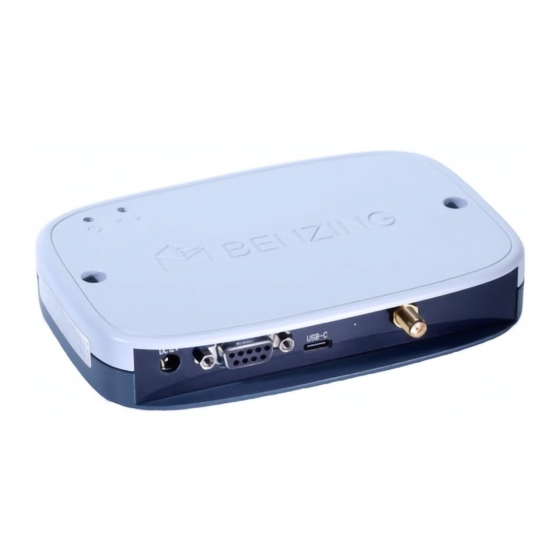

The BENZING Live Smart Hub is a network node
that is also equipped with its own internal
memory. If the BENZING clock is separated from
the BENZING Live Smart Hub, the BENZING Live
Smart Hub will switch to the continuous
clocking function and begin to register the arrival
of pigeons. This takes about 15 seconds to
activate and will store the arrivals up to 6 hours
from when the BENZING Clock was disconnected.
There are different LED status to show the state
of the BENZING Live Smart Hub.
Continuous Clocking with BENZING M3
In the System Info screen you can see if the
continuous clocking function (BENZING INN) is
available on your device. The continuous clocking
function requires that the latest firmware version of
the BENZING Live Smart Hub as well as the
BENZING M3.
Continuous Clocking with BENZING M1
Please check the main screen if the continuous
clocking function (BENZING INN) is available on
your device. The continuous clocking function
requires that the latest firmware version of the
BENZING Live Smart Hub as well as the
BENZING M1 is installed.
BENZING M1 INN Info Menu
In the BENZING INN info menu you can also check
if the continuous clocking function (BENZING INN)
is available on your device.
Continuous Clocking with BENZING Express G2
John F.
15:28:12
Please check on the main screen if the continuous
clocking function (BENZING INN) is available on
003 19.08 12:30:05 1
your device. The continuous clocking function
DE 5512 18 1420
F
requires the latest firmware version of the
BENZING Live Smart Hub and the
002 935142 12:30:04
BENZING Express G2 is installed.
001
52143 12:30:03
00
I L
003
LED lights status
Continous clocking is active
System is ok
System is not ok
If a pigeon arrives, an acoustic
signal sounds.
BENZING

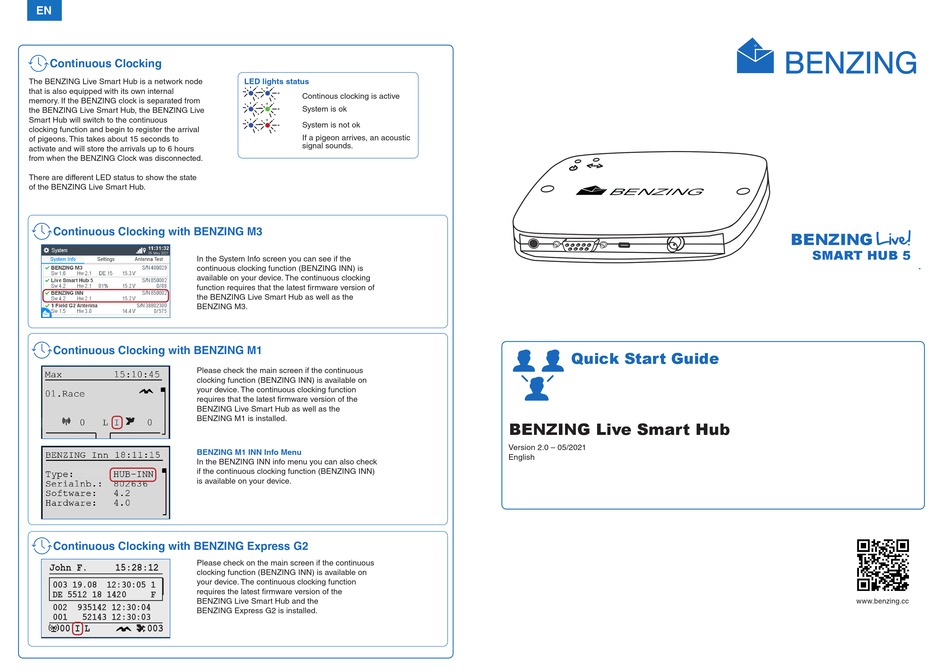

Quick Start Guide
BENZING Live Smart Hub
Version 2.0 – 05/2021
English
Live!
BENZING
SMART HUB 5
Live!
BENZING
SMART HUB 5
Live!
BENZING
SMART HUB 5
Live!
BENZING
SMART HUB
Live!
BENZING
SMART HUB
Live!
BENZING
SMART HUB
www.benzing.cc
