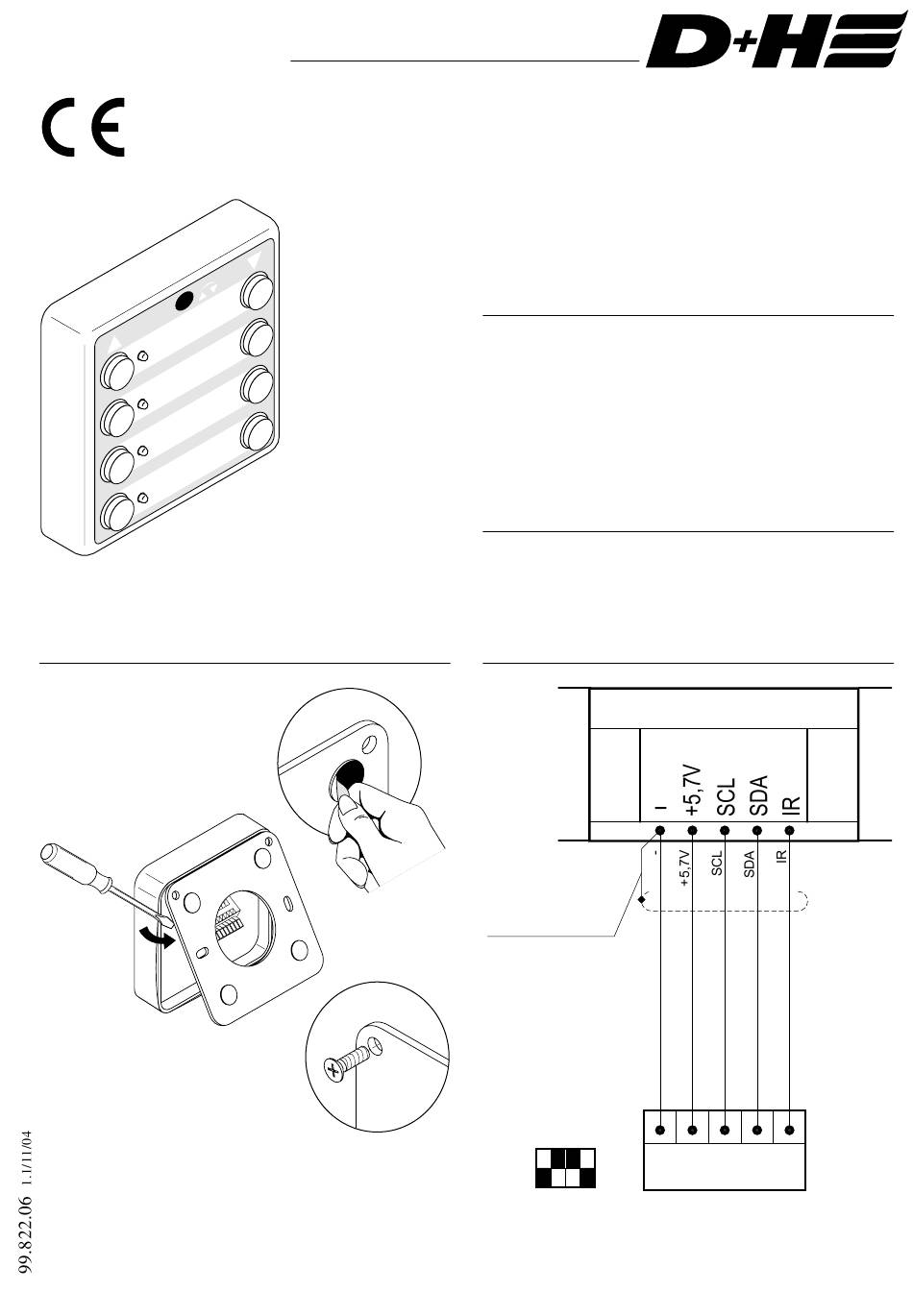

Instruction for use
Mounting on Wall
The upper part of the
wall control panel
must be removed for
mounting.
The lower part can be
fastened on the wall
either by means of the
adhesive pads (A) on the
back side, or it can be fastened with screws
(B).
The prepunched holes must be pushed
through for screwing, if necessary, using a
screw driver.
D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • D-22949 Ammersbek • Tel. +4940-60565219 • Fax +4940-60565264
Display Panel LF 10-4B
for Ventilation Control VCM 1004
Application
Wall control panel with integrated IR-receiver
and four control levels for operating of
ventilation control VCM 1004.
Mounting
Wall control panel including inscription set.
Connection
A
shield
(connect only in
central control)
B
Cable length:
max. 50m
Cable quality:
JY(ST)Y 3x2x0,8
factory-set
DIP-switch
2 3
1
4
look for instruction for use VCM 1004
VCM 1004
1
2
3
4
5
LF 10-4B
Control panel quadruple
Advertisement
Table of Contents
Summary of Contents for D+H LF 10-4B
- Page 1 Control panel quadruple (B). The prepunched holes must be pushed look for instruction for use VCM 1004 through for screwing, if necessary, using a screw driver. D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • D-22949 Ammersbek • Tel. +4940-60565219 • Fax +4940-60565264...
- Page 2 The LED lightens. If a Variostat is connected, the radiator valve will remain closed. The LED is extinguished. If a Variostat is connected, the radiator valve will completely close again. The yellow LED in the Variostat will lighten again. LF 10-4B Rev.:1.1...
- Page 3 Absenkung EIN Guarantee You will get 2 years guarantee for all D+H products from date of verified handing over of the system up to maximal 3 years after date of delivery, when mounting and starting has been carried out by a D+H authorized distributor.
- Page 4 All sizes in millimetre • Rights to technical modifications reserved. • Reprinting and phototechnical LF 10-4B Rev.:1.1 reproduction also in extracts has to be expressively authorized by D+H Mechatronic AG.
