PRODUCT NO.
BASE MODEL NO.
FFU20FC6CW1
FFU20FC6CW
MARKET
North America
WIRING DIAGRAM - # 216857700
OWNER'S GUIDE - # 216802800 / ENERGY GUIDE - # 216795507
SERVICE DATA SHEET - # 216857700
ELECTROLUX HOME PRODUCTS, INC.
P.O BOX 212378, AUGUSTA , GA 30917
FACTORY PARTS CATALOG
SERIES
COLOR
134A
white
Publication No.
5995396156
030917
-EN/SERVICE /MLR
365
FREEZER
VOLTS
115

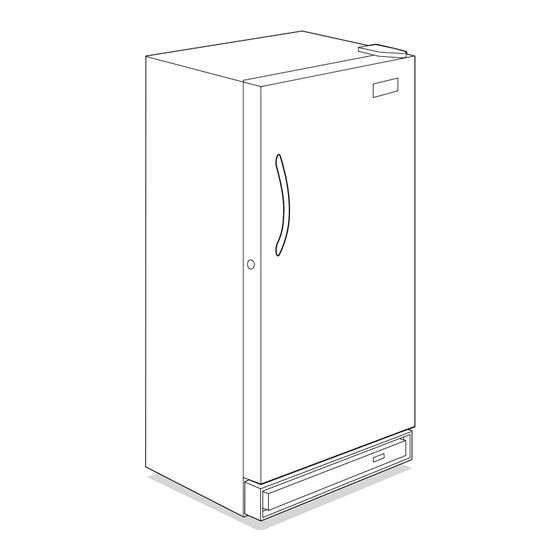

UPRIGHT FREEZER
Model number:
FFU20FC6CW
©2003 Electrolux Home Products, Inc.
All rights reserved

Advertisement

loading

Related Manuals for Frigidaire FFU20FC6CW

Summary of Contents for Frigidaire FFU20FC6CW

  • Page 1 PRODUCT NO. BASE MODEL NO. FFU20FC6CW1 FFU20FC6CW MARKET North America WIRING DIAGRAM - # 216857700 OWNER’S GUIDE - # 216802800 / ENERGY GUIDE - # 216795507 SERVICE DATA SHEET - # 216857700 ELECTROLUX HOME PRODUCTS, INC. P.O BOX 212378, AUGUSTA , GA 30917...
  • Page 2 Publication No FFU20FC6CW1 5995396156 DOOR 09/03...
  • Page 3 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FFU20FC6CW1 DOOR PART NO DESCRIPTION 216522312 Gasket-door,white 5303925107 Lock Assy 216702900 Key,lock 216528113 Panel-inner door,frzr 216531215 Panel-outer door,white 216892800 Nameplate 08016354 Door Stop 5303313518 Washer,sealing 216893400 Handle 218755503 Screw-shoulder,#10 AB ,handle mounting 5303269745 Nut-anchor,door hdl screw 08005520...
  • Page 4 Publication No FFU20FC6CW1 5995396156 CABINET 09/03...
  • Page 5 POS. NO 13 # 66 # 77 # # = Fast-moving Parts * = Non-Illustrated Parts FFU20FC6CW1 CABINET PART NO DESCRIPTION 216503100 Screen-drain 216325600 Fan Blade 216604100 Breaker Kit w/corners 216603600 Breaker Kit w/corners,lock catch 216603300 Breaker Kit w/corners,32" ,top or bottom 216914200 Motor,fan ,115 V 216822900...
  • Page 6 Publication No FFU20FC6CW1 5995396156 SYSTEM 09/03...
