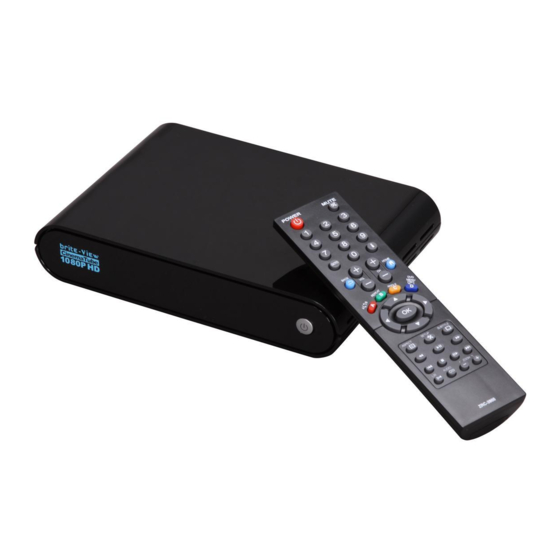

Brite View BV-5005HD User Manual
  1. Manuals
  2. Brands
  3. Brite View Manuals
  4. Media Player
  5. BV-5005HD mini
  6. User manual

Brite View BV-5005HD User Manual

Hide thumbs Also See for BV-5005HD:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BV-5005HD and is the answer not in the manual?

Questions and answers

Related Manuals for Brite View BV-5005HD

Summary of Contents for Brite View BV-5005HD

  • Page 2 Safety Instructions This product has been engineered and manufactured to assure your personal safety. However, improper use can result in potential electric shock or fire hazards. In order not to defeat the safe-guards incorporated in this instrument and its accessories, please adhere to the following instructions when installing, operating and servicing.
  • Page 3 Usage Warning  To reduce the risk of electric shock, do not remove the cover or attempt to disassemble this product. There are no user-serviceable parts inside. Please refer all servicing to qualified service personnel.  Protect this product from foreign objects. Never push object of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION Ⅰ The Contents of Package Specifications Front View Back View Remote Control SETTING UP FOR BV-5005HD Ⅱ Connections Connect to the Internet Connect to USB Devices Power On Turn On BV-5005HD Select the Video Output/Resource NETWORK CONNECTIONS Ⅲ...

  • Page 5: The Contents Of Package

    You can plug in your USB devices to BV-5005HD to play music, movies and pictures on TV by following the user-friendly on-screen display (OSD) menu. You can also access the shared folders of the remote PCs through the intranet (local area network) and play the digital media files there on your TV.

  • Page 6: Specifications

    Specification Interfaces HDMI、YPbPr、Composite Video Video Output Audio L/R、S/P DIF (Optical) Audio Output USB x 2、Ethernet Port Data Transfer General Specifications MPEG1 (DAT/MPG/MPEG) MPEG2 (MPG/MPEG/VOB/ISO/IFO/TS/TP)/M2TS MPEG4 (MP4/AVI/MOV) DivX 3/4/5/6、Xvid (AVI/MKV) H.264/AVC (TS/AVI/MKV/MOV)/M2TS Video VC-1 (TS/AVI/MKV/WMV)/M2TS WMV9 (WMV) Support Media Real Video 8/9/10 (RM/RMVB) Format MP3、MPEG Audio、Dolby Digital、DTS 、...

  • Page 7: Front View

    Connects to the HDMI jack on the display, using a single cable to transmit both audio and video data. ⑤ S/PDIF Connects the BV-5005HD to a display that has an optical digital audio port, using an optical digital audio (also called S/PDIF) cable. ⑥ AUDIO L/R/ VIDEO...

  • Page 8: Remote Control

    REMOTE CONTROL...
  • Page 9 REMOTE CONTROL POWER Turn on and off in the stand-by mode. ① MUTE Press to mute the sound. ② Number Keys for selection. ③ GOTO Video/movie chapter selection. ④ INFO Display the information of media files ⑤ while in play mode. BACK Return to the previous display.

  • Page 10: Ⅱ Setting Up For Bv-5005Hd

    For composite video (yellow) and stereo audio (white and red) Y/Pb/Pr (RGB) For component video output S/PDIF For audio output Step2: Connect the BV-5005HD to the home network through wired LAN (Option A) or wireless LAN (Wi-Fi 802.11 b/g/n) (Option B)
  • Page 11 BV-5005HD to the network wirelessly using Wi-Fi 802.11 b/g/n. You need to plug the USB dongle into one of the USB port on the front panel of the BV-5005HD and connect to the internet through wireless IP sharing router. You may need to know your wireless AP, name of the router, and encryption keys in order to set up correctly.
  • Page 12 Step3: Connect USB devices Step4: Power cord connection Plug one end of the power cord into the back of the BV-5005HD and the other end into a power outlet. BV-5005HD will start automatically without pressing any other button once the power is connected.
  • Page 13 (Access Point), uses DHCP to assign IP address, by default the BV-5005HD will automatically request the IP and other related information to set up BV-5005HD over the network in DHCP mode (under Setup> Network >Wired). If your network does not have DHCP server, switch to the Static IP mode (under Setup>...
  • Page 14 Select “Wired” on the Network menu. Select “DHCP”. Step 3: Select Yes to implement DHCP network setting. BV-5005HD will automatically receive its IP address from a DHCP sever that is built into the access point or IP sharing router. > Static IP...
  • Page 15 Select “Wireless setup” Network menu. Step 2: Select Connection 1/2/3. BV-5005HD provides you multiple profiles for use across multiple networks. Note: BV-5005HD supports WPA-PSK and WPA2-PSK encryption mode only.  Please use brite-View approved WI-FI dongle for wireless network. ...

  • Page 16: Connections

    > Infrastructure (AP) BV-5005HD performs a list of current wireless network connections- “SSIDs”. Along with its security protocols (WEP/WPA/WPA 2 key) and signal strength. Step 1: Select your preferred wireless network connection. Step 2: If an access key is required for the network connection, the keyboard will pop up.

  • Page 17: Wireless

    > Ad-Hoc Setup Rename SSID Rename your wireless network connection. Wireless Security Set your wireless network as an open system or WEP key will be needed for connection.

  • Page 18: File Sharing Configuration

    To activate this feature, please make sure:  The BV-5005HD is connected to the network;  The network is properly set up. For more information on this part, please refer to “Step 2” in “Setting up BV-5005HD” section, and “Network” under “Setup Menu”.
  • Page 19 To allow the BV-5005HD to access folders on your computer, you need: 1) BV-5005HD already connected to the network 2) to designate the folders/files on your PC as shared resources. Please refer to Microsoft’s official website: http://www.microsoft.com/windowsxp/using/networking/setup/home net.mspx to see the initial and detailed process of Home Network Setup in Windows XP.
  • Page 20 (2) Click the down arrow to the right of File Sharing to expand it. (3) Click Turn on file sharing and then click Apply. You may also refer to Setup menu on the OSD screen of BV-5005HD to select wired or wireless connection.
  • Page 21 USB interface automatically. > PC Media Connect BV-5005HD to your PC using a USB 2.0 cable. By connecting your PC in the Local Area Network, you can play the media files from the remote PCs. Please confirm the network settings and sharing files setup have been finished successfully.
  • Page 22 HDD. You can configure any sequence of music, photos, and video files to create a playlist. Remote Description Add to Playlist Select/cancel the files which will be added. Edit Rename/delete file. Note: For the files added to the playlist, BV-5005HD will separate the media files by video/music/photo tags.

  • Page 23: Video Playback

    VIDEO PLAYBACK Remote Description Enter Play Media > Video Playback . Navigate the media file you want to play. The preview window will show the highlighted video. Edit Rename /Delete file. Add to Playlist Add selected file to Playlist. Back Return to previous display.

  • Page 24: Music Playback

    Volume Increase/decrease the volume. Mute Mute the sound. GOTO Video/movie chapter selection. Subtitles Switch subtitle files. Info Display the infor of media files in play mode. Audio Switch audio outputs. Enable/disable Left/Right speaker. Stop playback and leave full screen mode. MUSIC PLAYBACK...

  • Page 25: Photo Playback

    Remote Description Enter Play Media > Music Playback Navigate the media file you want to play. The preview window will show the file details of highlighted file. Edit Rename /Delete file. Add to Playlist Add selected file to Playlist. Back Back to previous display.
  • Page 26 Remote Description Enter Play Media > Photo Playback Navigate the media file you want to play. The preview window will show the file details of highlighted file. Edit Rename /Delete file. Add to Playlist Add selected file to Playlist. Thumbnail mode. Back Back to previous display.

  • Page 27: Web Service

    Rename the selected file. Delete Delete the selected file. Add to Playlist Add selected file to Playlist. WEB SERVICE YouTube YouTube is a video sharing website for users to upload and share videos. BV-5005HD lets you browse your favorite videos on TV screen...
  • Page 28 By selecting the categories and tags, BV-5005HD will leave the videos selected from specific category. Search: You can key in the Keyword to search your interested ...

  • Page 29: Bt Download

     The BV-5005HD is connected to the network; The network is properly set up. For more information on this part,  please refer to “Step 2” in “Setting up BV-5005HD” section, and “Network” under “Setup Menu”. BitTorrent is the leading and the most common peer-to-peer file-sharing communications protocol.
  • Page 30 First, you need to prepare at least one USB hard drive with at least 20GB of free capacity, in the format of NTFS or EXT-3, and connect it to the USB port on the front panel of the BV-5005HD. Caution: Please do not download illegal files or contents.

  • Page 31: Setup Menu

    Note: When you remove the HDD/USB device, a window will pop up and show message “Warning! BT HDD has been removed, the system will restart”. SETUP MENU...

  • Page 32: Audio

    AUDIO Remote Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Item Options Night Mode On/Off HDMI LPCM Digital Output HDMI RAW SPDIF LPCM SPDIF RAW Change Audio L/R VIDEO Remote Description Enter “Audio”...

  • Page 33: System

    Select the item for adjustment. Confirm the change. Return to previous display. Item Options Pan Scan 4:3 Aspect Ratio Letter Box 4:3 16:9 Full Screen HDMI Auto Resolution NTSC 480P 576P 720P 50HZ 720P 60HZ 1080i 50HZ 1080i 60HZ 1080P 50HZ 1080P 60HZ SYSTEM Remote...

  • Page 34: Other

    Select the item for adjustment. Confirm the change. Return to previous display. Item Options English Menu Language Traditional Chinese Español Français Simplified Chinese Unicode (UTF 8) Text Encoding Simplified Chinese (GBK) Traditional Chinese (BIG5) Subtitle Size Moderate Small System info Online Update Software USB Update...
  • Page 35 Remote Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Item Options Off/2,5,10,30 Seconds/1,2 Minutes Slide Show Timer Transition Effect Off/Cross Fade/Left to Right/Top to Bottom/Waterfall/Snake/Dissolve/Str ip Left Down/All Effect Shuffle Off/On Background Music Off/On Screen Saver...
  • Page 36 Use an Ethernet not displayed. LAN cable to connect from the Network jack of the BV-5005HD to the network router or Access Point. Or check the setting between your external USB wireless dongle and IP sharing.
