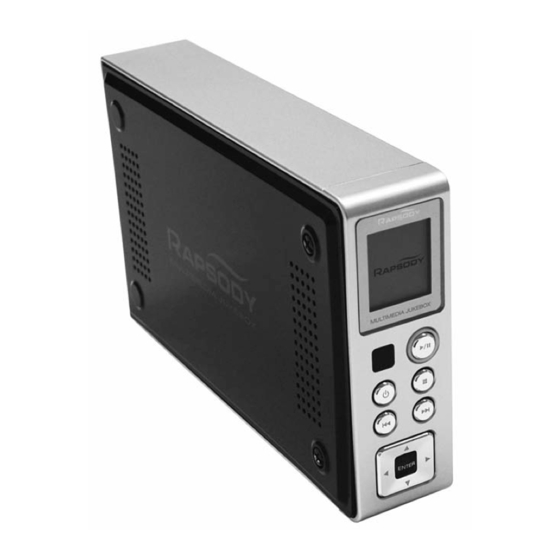

Summary of Contents for Rapsody RSH-300

  • Page 1 www.rapsody.ch...

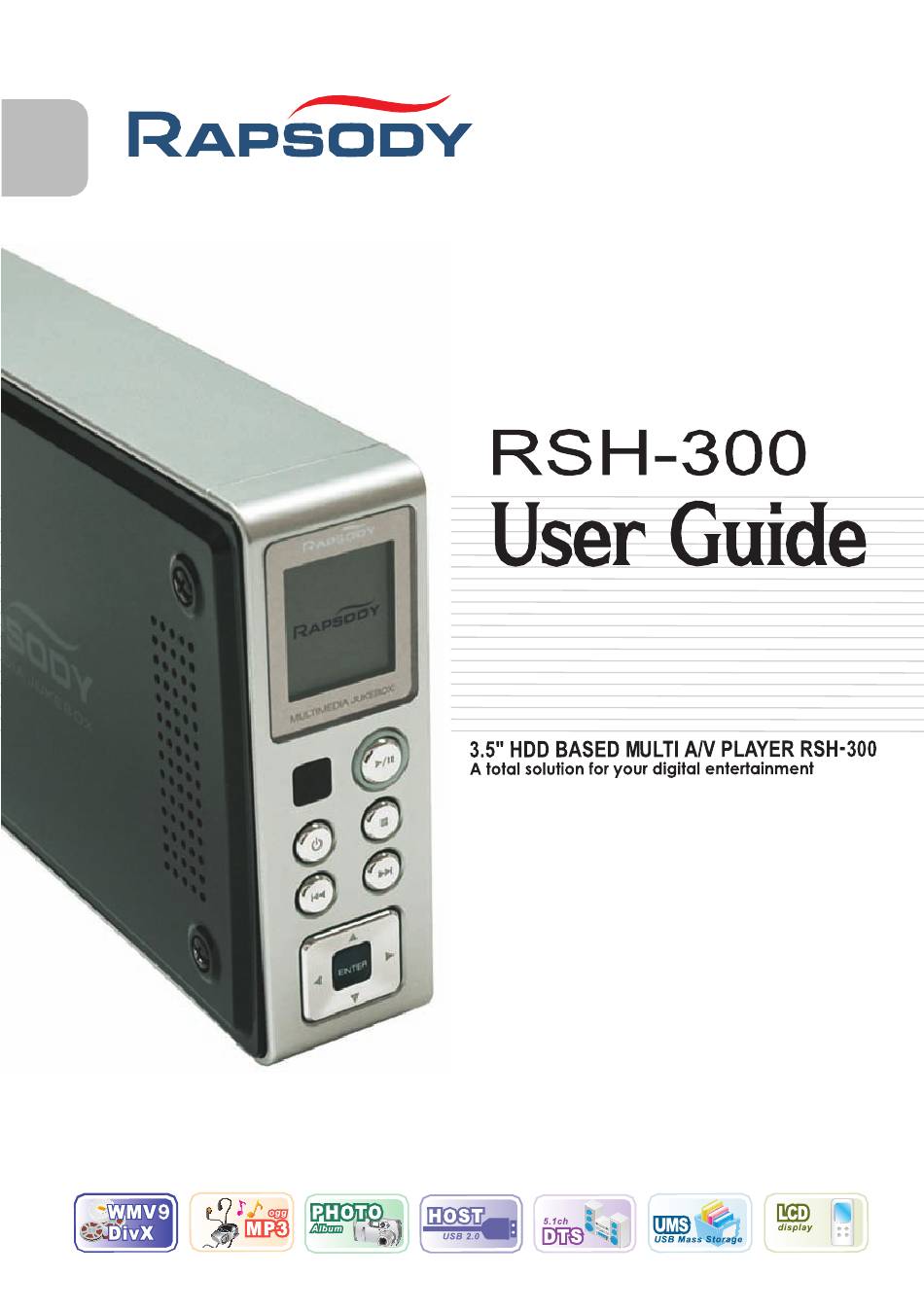

  • Page 2 USER GUIDE...
  • Page 3: Table Of Contents

    Table of Contents Product features / Online Remote Controller 17~20 Registration and Customer Setup Menu Setting 21~22 Service Main Menu Screen 23~24 Safety and Other Instructions Movie Play Product Specification Photo Play Product Contents and Music Play Descriptions Virtual DVD HDD Installation Firmware Upgrade HDD Partition Setup and...
  • Page 4: Product Features / Online Registration And Customer Service

    Product Features www.rapsody.ch RSH-300 is a new type of entertainment device with 3.5” hard disk mounted inside. You can play various multimedia data including video, music and image files saved in a PC by connection this device to PC with USB cable.
  • Page 5 Safety Precautions www.rapsody.ch Please note the following precautions before use. Also, please pay special attention to additional cautions marked [Caution] in this User Guide. P P r r o o p p r r i i e e t t a a r r y y D D a a t t a a this product.
  • Page 6 Rapsody is registered trademark of Dacos Technologies Co., Ltd. Microsoft Windows 98, windows 98SE, Windows ME, Windows 2000, Windows XP are registered trademarks of Microsoft Corporation.
  • Page 7: Product Specification

    Product Specifications www.rapsody.ch System Requirements (for PC) www.rapsody.ch ▶P P C C R R e e q q u u i i r r e e m m e e n n t t s s f f o o r r U U S S B B C C o o n n n n e e c c t t i i o o n n - USB 2.0/USB 1.1 Interface (USB 2.0 recommended)
  • Page 8: Product Contents And Descriptions 7~8

    Product Contents & descriptions www.rapsody.ch R R S S H H - - 3 3 0 0 0 0 R R e e m m o o t t e e B B a a t t t t e e r r y y ( ( A A A A A A × × 2 2 ) )
  • Page 9 128 X 128 Full Graphic 4 Gray LCD. Displays Connect red audio cable to this output jack. information of currently played music file even when RSH-300 is not connected to TV. 1 1 3 3 A A u u d d i i o o L L R R e e m m o o t t e e C C o o n n t t r r o o l l S S e e n n s s o o r r Left audio output of 2 channel audio.
  • Page 10: Hdd Installation

    O O p p e e n n b b o o t t h h c c o o v v e e r r s s f f r r o o m m R R S S H H - - 3 3 0 0 0 0 . . As shown in the picture, hold the RSH-300...
  • Page 11: Hdd Partition Setup And 10~14

    N N e e w w l l y y p p u u r r c c h h a a s s e e d d h h a a r r d d d d i i s s k k s s a a r r e e n n o o t t n n o o r r m m a a l l l l y y f f o o r r m m a a t t t t e e d d . . Connect RSH-300 to a PC using a USB cable.
  • Page 12 Partitioning and Formatting Hard Disk(windows 2000/XP) www.rapsody.ch 1 1 2 2 Enter the desired partition size in [Partition When [Completing the New Partition Wizard] size in MB] and click [Next] to continue. appears, click [Finish]. 1 1 3 3 A new NTFS partition was created .
  • Page 13 Partitioning and Formatting Hard Disk(windows 2000/XP) www.rapsody.ch 1 1 9 9 In the Format Partition window, select 1 1 6 6 Select [Primary Partition(P)] and click [Next] [Format this partition with the following to continue. settings] and N N T T F F S S , and then check [Perform a quick format] box.
  • Page 14 Partitioning and Formatting Hard Disk(windows 2000/XP) www.rapsody.ch C C a a u u t t i i o o n n Drives formatted with NTFS file system are detected on Windows 2000/XP, but not detected on Windows 98/ME. Do NOT select to use [Compressing Files and Folders] option.
  • Page 15 N N o o t t e e [ [ A A u u t t o o M M o o u u n n t t ] ] It is assumed that RSH-300 is detected as After booting, log in as a root user.
  • Page 16: Video Cable Connection

    TV, and the other end of the cables to the of your TV. Audio signals should be same colored jack of the RSH-300. Turn on connected separately using analog audio the TV, and select the appropriate input. cable.
  • Page 17: Audio Cable Connection

    Connect red and white audio cables from For those audio devices which has digital RSH-300 to same colored input jack of TV or optical input jack, RSH-300 makes you to U U s s e e o o f f s s u u p p p p l l i i e e d d a a u u d d i i o o c c a a b b l l e e s s audio device.
  • Page 18: Remote Controller 17~20

    Remote Controller www.rapsody.ch _ _ 1 1 7 7...
  • Page 19 Remote Controller www.rapsody.ch contains more than two languages, click the Power Button button 3 times and select a subtitle language Used to turn the power on or off using the UP and DOWN arrow. Then click on the OK button.)
  • Page 20 Remote Controller www.rapsody.ch _ _ 1 1 9 9...
  • Page 21 Remote Controller www.rapsody.ch They are used for navigating and selecting Playback Mode Selection menu items. In case of a movie playback, do Selects a playback mode for playing music or the following functions. movie files (see the icon descriptions below)
  • Page 22: Setup Menu Setting 21~22

    SETUP Menu Setting www.rapsody.ch The figure below is RSH-300 s SETUP screen. For each menu item, possible options are described below. (4 Available Resolutions: 576i, 576p, 720p, 1080i) SYSTEM (Erupe, China, etc.) TV OUT NTSC C/S : Video signals through the composite TV Form output terminal (Korea, USA, Japan, etc.)
  • Page 23 SETUP Menu Setting www.rapsody.ch 16:9 Image output in the aspect ratio of 16:9 Audio Output Analog / DPCM Analog 2 channel audio output Encoded Digital Digital audio signals through the optical or coaxial output terminal (no analog output) PROGRAM Language Selection Display by a selected language.
  • Page 24: Main Menu Screen 23~24

    Main Menu Screen www.rapsody.ch The figure below is RSH-300 s MAIN screen. Icons and Screen Components HDD Selection If you select the icon of HDD Disk Selection, You can play a media file of Movie, Music and Picture. USB Disk Selection...
  • Page 25 RHS-300 system setting Movie Play www.rapsody.ch RSH-300 can play the following files: AVI, MPG, MPEG, DAT, VOB, TP, TRP, WMV, MP5, ISO, etc. Playback order and method are determined by a selected repeat mode. Buttons and functions for movie playback...
  • Page 26: Movie Play

    Movie Play www.rapsody.ch _ _ 2 2 5 5...
  • Page 27: Photo Play

    Photo Play www.rapsody.ch JPG files can be played. RHS-300 also provides a slideshow function. The display duration for each picture can be set in the SETUP menu by seconds. When 0 second is given, the system keeps displaying a specific picture until the [SKIP] or [STOP] button is pressed.
  • Page 28: Music Play

    Music Play www.rapsody.ch During playing music files, the system is in the music playback mode. In the middle of playing music files, you can search folder and files. After selecting a new file and pressing the [OK] button, the selected file will be played.
  • Page 29: Virtual Dvd

    Virtual DVD www.rapsody.ch Virtual DVD is a function that rips a DVD disk, saves the contents in the HDD, and plays the saved contents as if playing the same DVD. With this function, you can prevent any damages of original disks and can easily play movies without swapping disks.
  • Page 30: Firmware Upgrade

    Firmware Upgrade www.rapsody.ch The upgrade version of firmware for RSH-300 is released occasionally with functional updates and bug fixes depending on the development situation by customer demands. Check your firmware version at the upper right corner of the screen. Download the latest firmware file from Wait for firmware upgrade to be completed.
  • Page 31: Firmware Recovery

    After successful completion of firmware file to RSH-300.( ( E E v v e e n n t t h h o o u u g g h h t t h h e e m m a a i i n n...
  • Page 32: Troubleshooting

    W W i i n n d d o o w w s s E E x x p p l l o o r r e e r r a a f f t t e e r r c c o o n n n n e e c c t t i i n n g g t t h h e e Please make sure that RSH-300’ s hard d d e e v v i i c c e e t t o o P P C C .
