Nano Shutter user guide.
Modified on: Mon, 1 Jun, 2020 at 7:04 PM

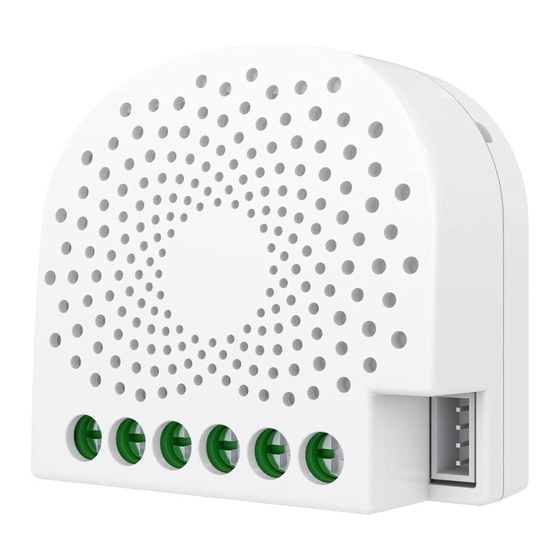

Aeotec Nano Shutter.
Aeotec Nano Shutter
(https://aeotec.com/z-wave-motor-shutter-curtain-control)
sockets and switches using Z-Wave Plus
(http://aeotec.com/z-wave-gen5)
To see whether Nano Shutter is known to be compatible with your Z-Wave system or not, please reference our Z-Wave
gateway comparison
(http://aeotec.com/z-wave-gateways)
(https://aeotec.freshdesk.com/solution/articles/6000198818-nano-shutter-technical-specifications-)

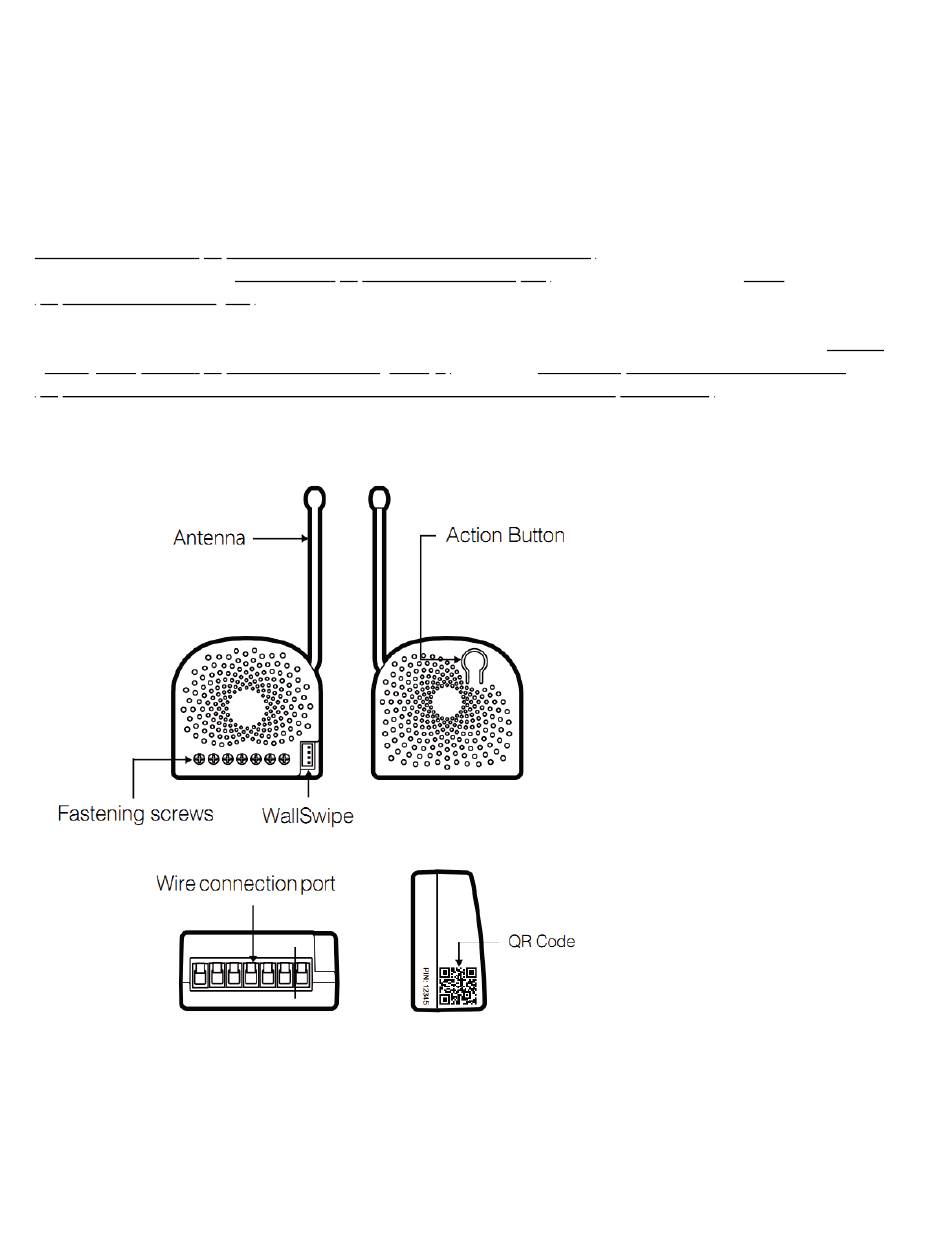

Familiarize yourself with your Nano Shutter.
Important safety information.
Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may
be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held
responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.
https://aeotec.freshdesk.com/support/solutions/articles/6000198854-nano-shutter-user-guide-
Nano Shutter User Guide : Aeotec Help Desk
(http://aeotec.com/z-wave-plus)
technology.
has been crafted to power connected
. It is powered by Aeotec's Gen5
listing. The technical specifications of Nano Shutter
can be viewed at that link.
1/15
Advertisement
Summary of Contents for Aerotec Nano Shutter
- Page 1 . It is powered by Aeotec’s Gen5 (http://aeotec.com/z-wave-plus) technology. (http://aeotec.com/z-wave-gen5) To see whether Nano Shutter is known to be compatible with your Z-Wave system or not, please reference our Z-Wave gateway comparison listing. The technical specifications of Nano Shutter (http://aeotec.com/z-wave-gateways) can be viewed at that link.
- Page 2 Only a licensed electrician with knowledge and understanding of electrical systems and safety should complete the installation. The maximum amperage rating for Nano Shutter is 2.5A for each slot and 5A for both when connecting a motor load: (COSφ=0.4, L/R=7ms) Keep product away from open flames and extreme heat.
- Page 3 4/28/2021 Nano Shutter User Guide : Aeotec Help Desk N – Power input for neutral. L – Power input for live. IN – Input for load power supply. OUT1 – Output for Motor direction 1. (Down) OUT2 – Output for Motor direction 2. (Up) S1 –...
- Page 4 Note: This is the physical connection diagram for 120/230VAC power input. 1. Mounting the gang box. 2. Position all wires to provide room for the device. Place the Nano Shutter inside the gang box towards the back of the box.
-
Page 5: Quick Start
Adding your Nano Shutter to a Z-Wave network. After your Nano Shutter is installed and powered on, you are now able to manually control the Nano Shutter to open and close your motor connected directly via pressing your Nano Shutters Action Button. It is now time to add your Nano Shutter to the Z-Wave network. -
Page 6: Button Behavior
1 to 4 if this happens. With your Nano Shutter now working as a part of your smart home, you’ll be able to configure it from your home control software/phone application. Please refer to your software or gateway user guide for further instructions on configuring Nano Shutter to your needs. - Page 7 4/28/2021 Nano Shutter User Guide : Aeotec Help Desk Click Action 1. Send Node Info for Adding: 1. Active and stop the motor Button/S1/S2 once Flashing blue LED: for no longer than 30s or The motor moves in a forward - stop - reverse - before adding succeeds.
- Page 8 4/28/2021 Nano Shutter User Guide : Aeotec Help Desk Click Action 1. Enter Shutter Calibration Mode 1. Enter Shutter Calibration Mode Button/S1/S2 3x times in Orange light flashing when calibrating. Orange light flashing when calibrating. 2 seconds. 1. Press the Button/S1/S2 once when 1.
- Page 9 2. Venetian Mode Nano Shutter in Venetian Mode can be set to open the blinds up/down, as well as the angle of rotation of the blinds separately. There is a switch on Venetian to change the Controlling Channel for blind lifting and blinds rotation, the switch needs manual operation by the user.
- Page 10 H) The blind blades will stop rotation now, which indicates the blade rotation calibration is complete. The Nano Shutter records the run time between points A and B, and turn time between reference points C and D which are curtain trip time and blade turn time (the recorded time can be read and modified from the Configuration Parameter 0x22 (34) and 0x23 (35)).
- Page 11 4/28/2021 Nano Shutter User Guide : Aeotec Help Desk Determine motor run direction for Shutter mode and Venetian Mode Shutter mode/Venetian mode: Out 1= Up moving/ Multilevel switch = 99%, Out 2= Down moving/ Multi level switch = 0% Shutter mode: Out 1= Down moving/ Multi level switch = 0%, Out 2= Up moving/ Multilevel switch = 99%.
-
Page 12: Advanced Functions
To automatically detect and set the mode to the appropriate type of manual switch wired into Nano Shutter, toggle the button on the manual switch once and wait 2 seconds for the Nano Shutter to detect the type of manual switch. -
Page 13: Touch Panel Control
Touch panel control. As you can see that the Nano Shutter’s surface has a pin port, this port is used to connect the Touch panel. When you have already connected it to the Nano Shutter, you will be possible to control the Nano Shutter through the Touch panel directly. - Page 14 To do this, press and hold the Action Button for 20 seconds and then release it. Your Nano Shutter will now be reset to its original settings, and the green LED will be solid for 2 seconds and then remain the colorful gradient status as a confirmation.
- Page 15 4/28/2021 Nano Shutter User Guide : Aeotec Help Desk https://aeotec.freshdesk.com/support/solutions/articles/6000198854-nano-shutter-user-guide- 15/15...
