Summary of Contents for DIAMOND DRYERS DIAMOND PLUS GWHD22

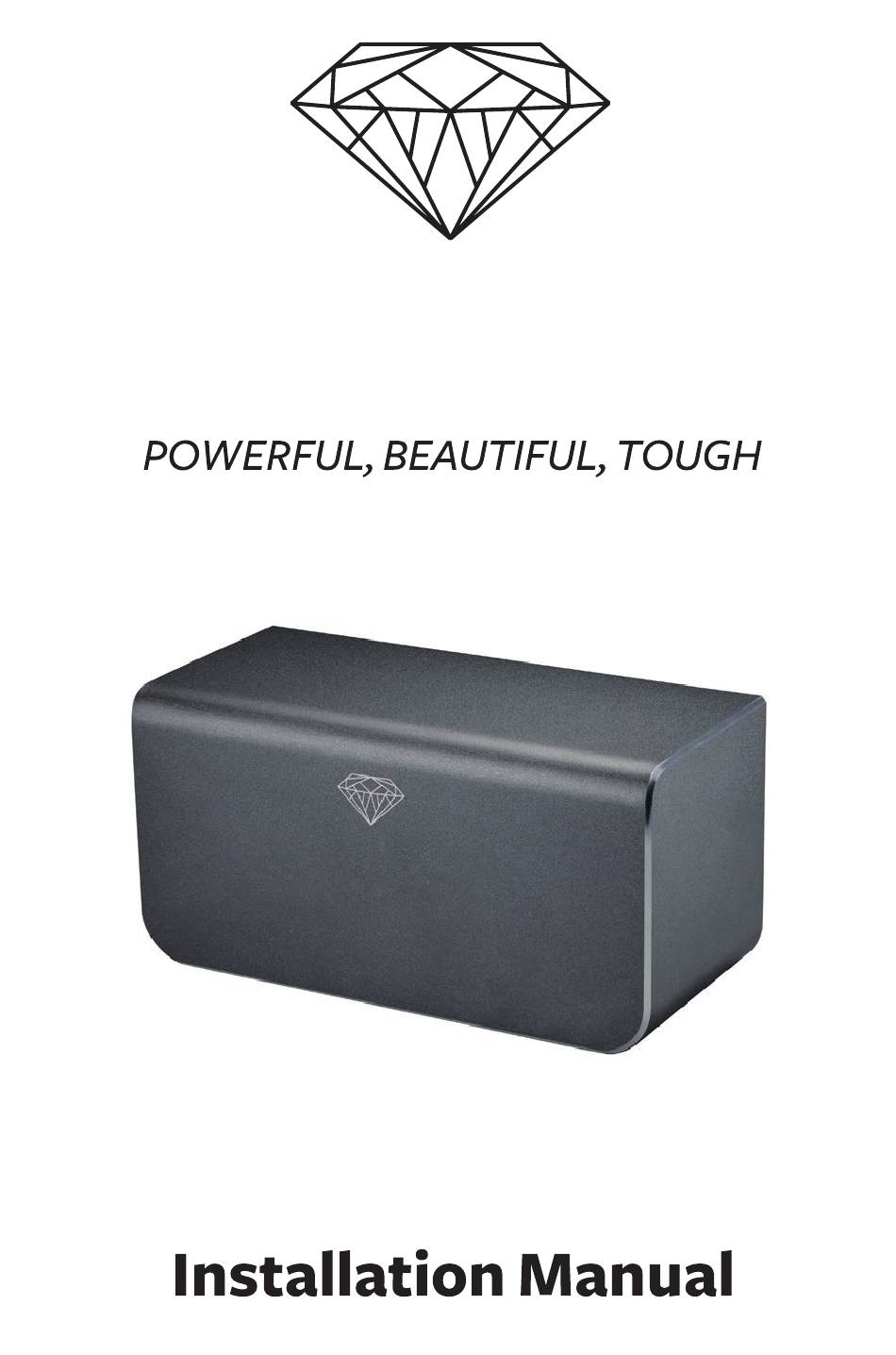

- Page 1 DIAMOND PLUS...
- Page 2 TECHNICAL SPECIFICATIONS Item Category Performance Date Operating Voltage AC 220~240 V, 50 Hz / AC 110~120, 60Hz 220~240 V 320 W (Heater off)/ 720 W (Heater on) Standard mode 110~120 V 320 W (Heater off)/ 820 W (Heater on) Power 220~240 V Q mode 'ON' , 130 W(Heater off) / 530 W (Heater on) 110~120 V...
- Page 3 UNPACKING 1. Remove all packing material. Recycling is recommended. 2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance. 3.Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing or damaged parts.
- Page 4 2. Positioning CAUTION: Before installation decide if the cable entry is to be from the rear or the above. Follow the relevant instructions. Do not use the backplate as a guide when drilling. 2.1 Mark the location on the wall with a pencil. Use the Installation Template to mark the locations for the four fixing points (fig.
- Page 5 3. Installing Power cable & Connection terminal block WARNING: ENSURE POWER NOT CONNECTED 3.1 Pull the cable through the the grommet. Ensure the cable is long enough to route correctly through the backplate to the terminal block (fig 6). 3.2 The cable must sit in the dedicated channel. 3.3 As shown, connect cable to terminal block and screw in terminal block.
- Page 6 Note: Ensure the LED light on the front of the unit is OFF before opening the front cover, if the LED light is still ON, wait until the light goes off. The unit has a built in UV-C lamp, avoid exposure to direct germicidal UV rays. Do not open the front cover before power off.
- Page 7 CLOSE OPEN Filter Filter Cover WARNING - If the dryer has been fitted with a filter, it will need to be replaced after 60,000 operations but will continue working for a further 15,000 operations but without the benefits of the HEPA filter. At approximately 75,000 operations the red LED will be flashing on the window positioned at the front of the cover and the unit will stop working until a replacement filter is fitted.
- Page 8 1. No touch operation. 2. Shake excess water from hands. 3. Place hands under the outlet to start operation (fig. 12). 4. Slowly move hands back and forth under the outlet at the bottom of the dryer. 5. The blue hand location LED situated by the dryer outlet starts with the drying operation.
