MSD IAQ Detector -User Manual

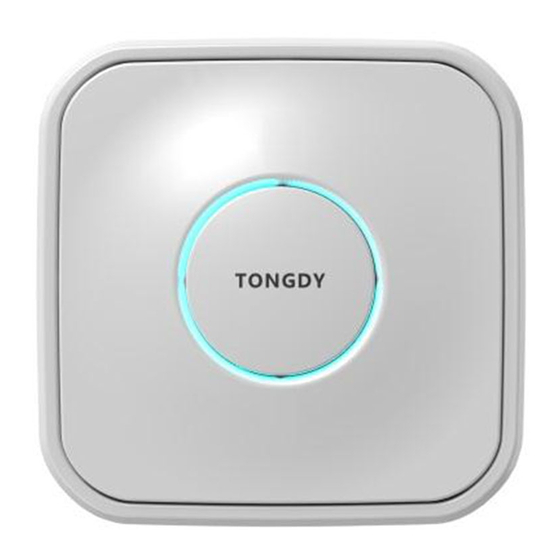

MSD Indoor Air Quality Detector
—
Commercial Grade IAQ products
Over 10-year experience in IAQ products design and production, long-term
exportation to Europe and America, powerful strength guaranteed.
Rigorous design, professional test and calibration for the commercial grade indoor
air quality detectors.
High cost performance, be able to replace expensive professional instruments,
coordinate well with data collection and analysis systems, making multipurpose real
time monitoring placements easier to be achieved.
Suitable for intelligent buildings, intelligent house systems, and air quality data
collection systems, green building evaluation systems, as well as ventilation
systems.
V.1912
1 / 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tongdy MSD
Summary of Contents for Tongdy MSD
- Page 1 V.1912 MSD IAQ Detector -User Manual MSD Indoor Air Quality Detector — Commercial Grade IAQ products Over 10-year experience in IAQ products design and production, long-term exportation to Europe and America, powerful strength guaranteed. Rigorous design, professional test and calibration for the commercial grade indoor air quality detectors.
- Page 2 V.1912 MSD IAQ Detector -User Manual Dimension and Mounting Holes Installation 1. To separate the backboard and the detector, rotate the backboard clockwise according to the direction of the arrow (Pic.1&Pic.2). 2. Use a screwdriver to pry the threading hole on the backboard, and remove the cover of the threading hole (Pic.
- Page 3 V.1912 MSD IAQ Detector -User Manual 5. Contact the cable to the terminal block (Pic.7&Pic.8), then tightly lock the mounting screw (Pic.7-3&Pic.8-3) Note: When the wireless communication model is added, the communication extension port RS485 (default) or TTLis added, which is reserved for the customer to adjust the device parameters. When the customer installs, they can be disconnected.
- Page 4 V.1912 MSD IAQ Detector -User Manual 7. Aim the dot located in the middle of two arrows on the side of the detector with the vertical lines on the backboard (Pic.9). Then rotate detector following the „FIX‟ direction until it‟s tight (Pic.10).
- Page 5 “CONFIG” position of the housing inside of the equipment, and the corresponding labels of three locations on the box. The format is "MSD-XXXXXXXX”. X represents the value, the 8-digit number has a uniform format requirement and cannot be modified, which is corresponding to the serial number on the MyTongdy platform.
- Page 6 V.1912 MSD IAQ Detector -User Manual WIFI Settings(MQT Version) 1. Download and Install APP 1) Login URL www.mytongdy.com 2) Click the "Login" button in the upper right corner of the website interface. 3) In the account password interface, use IE to scan and download the mobile app (for Android). Or after the phone logs into the webpage.
- Page 7 V.1912 MSD IAQ Detector -User Manual Picture 1 Picture 2 Picture 3 1）Login account Open the newly installed MyTongdy APP, enter your account, password, and log in. Available account: CONFIG, password: 8899, see Picture 1. If it is only used for WIFI configuration, click “Distribution Network”.
- Page 8 When used in new construction, it should be installed after the renovation project is completed and cleaned and cleaned. If the room where the MSD has been installed needs to be renovated, the MSD should be ■...
- Page 9 2 hours before powering up. Avoid excessive temperature difference and cause condensation or equipment damage. Never use other pigments to apply the MSD casing to avoid clogging the inlet and outlet, and ■ the pigment entering the MSD chamber.
- Page 10 Fault phenomenon Reference reason PM2.5 data abnormal Check for foreign objects inside the MSD housing. The air inlet and outlet are deviation is too large, the free of foreign matter or dust. After a long-term use, it may be necessary to value is too high or too low return to the factory for recalibration.
