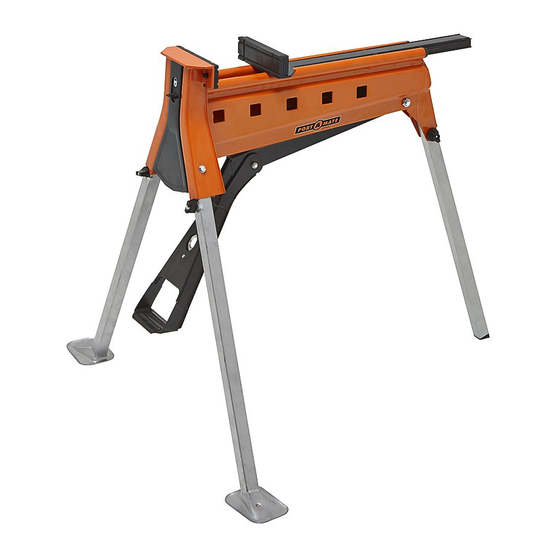

MegaVise II
P O R T A B L E V I S E S TA N D
V I S E P O R T A B L E S T A N D
S TA N D P O R T Á T I L V I S E
PM7060
OPERATORS MANUAL
Assembly • Operation • Parts List • Warnings • Warranty
Caution: Read all instructions carefully.
SAVE THESE INSTRUCTIONS. Refer to them often and use them to instruct others.
MANUEL DE L 'UTILISATEUR
Assemblage • Fonctionnement • Liste de pièces • Avertissements • Garantie
Mise en garde : Lire attentivement l'ensemble des instructions.
CONSERVER CES INSTRUCTIONS. Les consulter souvent et les utiliser pour éduquer les autres.
MANUAL DEL OPERADOR
Ensamble • Operación • Lista de Partes • Advertencias • Garantía
Precaución: Lea cuidadosamente todas las instrucciones.
GUARDE ESTAS INSTRUCCIONES. Refiérase a las instrucciones y úselas para enseñarle a otras personas.
Advertisement
Related Manuals for Portamate MegaVise II
Summary of Contents for Portamate MegaVise II
- Page 1 .PORTAMATE. MegaVise II P O R T A B L E V I S E S TA N D V I S E P O R T A B L E S T A N D S TA N D P O R T Á T I L V I S E...
- Page 2 Safety Setting up Operation Maintenance Warranty Thank you for purchasing this Portamate MegaVise II workclamp. These instructions contain information necessary for safe and effective operation of this product. For product updates or accessories please visit us at www.Portamate.com SPECIFICATIONS PM-7060...
- Page 3 FEATURES 1. Moving jaw 10. Rear leg locking knob 2. Fixed jaw 11. Moving jaw 3. Body locking tab 4. Lock / release 12. Fixed jaw facing switch 13. Moving jaw 5. Foot pedal facings 6. Front legs (2 pieces) 7.
- Page 4 • Keep hands clear of all moving instructions will be considered a parts. case of misuse. • Ensure MegaVise II is set up on firm The manufacturer shall not be liable ground in a stable manner. for any damage or injury resulting •...
- Page 5 (10) and slide firmly in position. the rear leg from 5. Rotate the moving jaw locking tab (11) to the horizontal position and MegaVise II is now ready for use. FOLDING Folding is the reverse procedure its storage position. Pivot the leg of above.
- Page 6 OPERATION CLAMPING RELEASING 1. Check that the 1. Slide the lock/release switch (4) up moving jaw to the “release” position. locking tab 2. Push on the foot pedal then allow (11) is set to it to return up and release the the horizontal workpiece.
- Page 7 When working along the line of the material width of 141cm (55”) jaws, place your foot on the foot • Pull the sliding jaw right off the plates (15) to prevent MegaVise II body. from moving. • Engage the the small square bar of...
- Page 8 The backing is filed. face can then be removed, • Any damage to MegaVise II should allowing the front to be pulled be repaired and carefully inspected off the moving jaw. before use, by qualified repair personnel.
- Page 9 ONE YEAR LIMITED WARRANTY Warrantor warrants to the original purchaser that the PortaMate PM7060 will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of original purchase.
- Page 10 GARANTIE LIMITÉE DE UN AN Le garant garantit à l’acheteur d’origine que le PortaMate PM7060 sera exempt de défaut de matériaux et de fabrication dans des conditions d’usage et d’entretien normal pendant une période de un (1) an à partir de la date de l’achat d’origine.
- Page 11 GARANTÍA LIMITADA DE UN AÑO El fiador le garantiza al comprador original que el PortaMate PM7060 estará libre de defectos de materiales y mano de obra bajo uso y servicio normales durante un período de un (1) año a partir de la fecha de la compra original.
- Page 12 Customer Service Department Service clientèle Departamento de Atención al Cliente 800-624-2027 www.portamate.com .PORTAMATE. Distributed in Australia by: Global Power Brands International Pty. Ltd. Contact: info@globalpowerbrands.com ©2011 HTC Products, Inc. Part # M180...
