  • Page 1 MCK 2200 SOLID CONTROL COMPUTER FOR SPRAYERS INSTRUCTIONS FOR USE NR.ST2621-EN REV. 3...
  • Page 2 SOLID CONTROL MCK 2200 This product meets the EMC standards as determined in the 2004/108/EC directive and subsequent amendments and reference to the applied EN ISO 14982 standard Manufacturer : MC elettronica S.r.l. Address : Via E. fermi, 450/486 Fiesso Umbertiano (ROVIGO) - ITALY Tel.

  • Page 3: Table Of Contents

    SOLID CONTROL MCK 2200 Contents 1. General description ....................4 2. Description of the panel and electrical connections ..........5 3. Mechanical dimensions and materials ..............7 4. Operation ........................ 8 4.1 Display ......................8 4.1.1 Number of partial plants (REF. O5) ............8 4.1.2 Number of total plants (REF.

  • Page 4: General Description

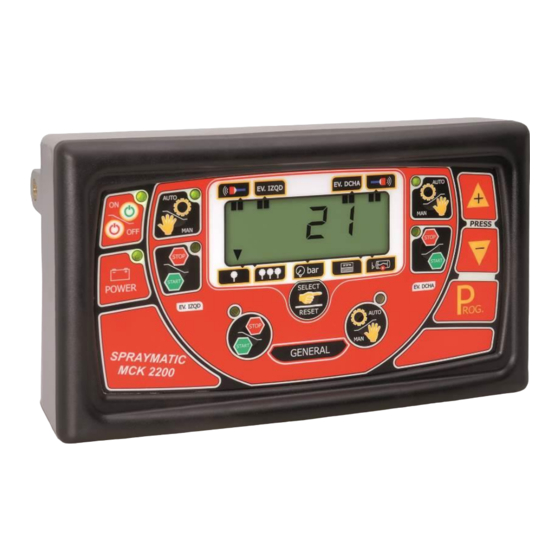

    SOLID CONTROL MCK 2200 1. General description The MCK 2200 computer is designed for use on a sprayer machine, and in the automatic mode, it uses ultrasonic sensors mounted on the sides of the machine to allow the plant to only be sprayed when it is detected by the sensor: this guarantees optimisation of product consumption and less operator fatigue.

  • Page 5: Description Of The Panel And Electrical Connections

    SOLID CONTROL MCK 2200 2. Description of the panel and electrical connections EV. DCHA EV. IZQD INput / OUTput Connector Description signal type reference General ON-OFF key with green LED. Left AUTO/MAN key with green LED “POWER SUPPLY ” green LED Left START/STOP key with red LED Gen.
  • Page 6 SOLID CONTROL MCK 2200 INput / OUTput Connector Description signal type reference Right AUTO/MAN key with green LED 5-digit LCD display with green LED back- lighting to view: Number of total plants Number of partial plants IN (4  20mA) Working pressure (only full opt.

  • Page 7: Mechanical Dimensions And Materials

    SOLID CONTROL MCK 2200 3. Mechanical dimensions and materials EV. DCHA EV. IZQD 57.8 Rotazione MAX 170° Front keyboard in screen printed polyester. Self-extinguishing ABS box closing black frame Self-extinguishing ABS grey container Connector for signals and power supply. Fastening knobs.

  • Page 8: Operation

    SOLID CONTROL MCK 2200 4. Operation Once the MCK 2200 computer has been connected to the power supply, the green LED (ref.C) "CHARGED BATTERY" will light up. Pressing the ON/OFF key (ref.A) will allow you to turn on the computer, which will perform a 2-second operating test, while keeping all segments of the display and the LEDs on.

  • Page 9: Number Of Total Plants (Ref. O6)

    SOLID CONTROL MCK 2200 (REF. O6) 4.1.2 Number of total plants The number of total plants is displayed by pressing the "SELECT" key (ref. F) when the arrow indicator appears in line with the "n° of total plants" symbol. Contrary to the previous totaliser, this data cannot be reset.

  • Page 10: Solenoid Valve Status (Ref. O2 And O3)

    SOLID CONTROL MCK 2200 4.1.7 Solenoid valve status (ref. O2 and O3 After perceiving the signal from the sonar, and after the delay time set a priori (see paragraph 4.6), the computer will activate the outputs for the corresponding solenoid valves: that on the left for the left sonar and that on the right for the right sonar.

  • Page 11: General S.v. Start/Stop Key

    N.B. Only in the case of the "full opt" art. 4494 MCK 2200 model and during work (out of the programming mode), can an output be controlled by using the keys (ref. M) and –...

  • Page 12: Totalisers Full Scale Range

    SOLID CONTROL MCK 2200 To enter programming (preferably with the machine stopped), press the "PROG" key ref. (H) for 3 SECONDS. The first constant to " Minimum detection time for solenoid valve opening " will appear; to change the value, simply press the two "+" and "-" keys ref.(M) and (L).

  • Page 13: Manual Mode

    SOLID CONTROL MCK 2200 Once the count is complete, the power supply to the solenoid valve is disconnected and the product output is blocked. Each time the solenoid valve is opened, the 2 bars at the top of the SV.DCHA display (ref.

  • Page 14: Technical Features

    SOLID CONTROL MCK 2200 In the second case, it is therefore that one of the two sections works in automatic mode and the other in manual mode. In manual mode, the sensor signal relating to the section running in manual mode is ignored and the relative solenoid valve is continuously activated and can be switched off or reactivated by the operator using the keys ref.
  • Page 15 SOLID CONTROL MCK 2200 CAUTION!! DO NOT WASH USING A POWER WASHER WITH PRESSURE JET WARNING: THIS PRODUCT CONTAINS TIN AND LEAD. IT MUST BE DISPOSED OF AT THE END OF ITS LIFE CYCLE AT THE DESIGNATED DISPOSAL FACILITIES OR DELIVERED DIRECTLY TO MC ELETTRONICA SRL (ITALY).
