Summary of Contents for Total Tools TTi TTIVP1000V

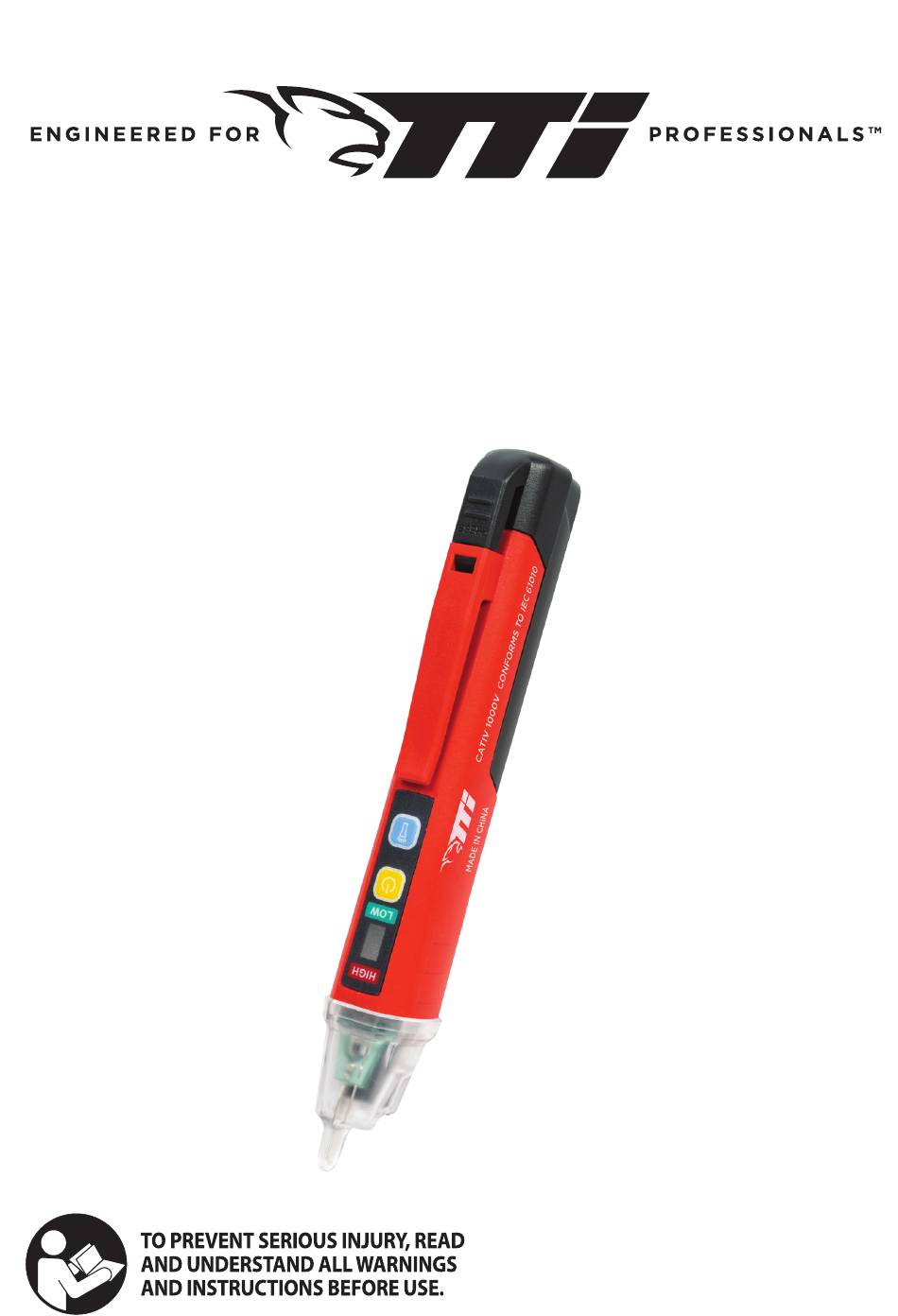

- Page 1 24/90 1000V VOLTAGE DETECTOR PART NO: TTIVP1000V (..151479) OPERATING INSTRUCTIONS...
- Page 2 CONTENTS INTRODUCTION ......................3 • Intended Use ........................3 GENERAL SAFETY ......................3 SAFETY INSTRUCTIONS ....................4 • Safe Operation and Standards ..................4 • Electrical Symbols ......................5 EXTERNAL OVERVIEW ......................6 TECHNICAL SPECIFICATIONS ..................6 OPERATING INSTRUCTIONS ..................7 WARRANTY INFORMATION ..................8 24/90 1000V VOLTAGE DETECTOR...
- Page 3 INTRODUCTION The TTIVP1000V voltage detector is a non-contact voltage detector with a built-in flashlight and visual and audio alarm. The CAT IV 1000V safety class ensure users’ safety. INTENDED USE The voltage detector is to be used only for electrical inspection within the specifications the device is rated for.
- Page 4 SAFETY INSTRUCTIONS SAFE OPERATION AND STANDARDS Anyone using this instrument should be knowledgeable and trained about the risks involved with measuring voltage, especially in an industrial setting, and the importance of taking safety precautions and of testing the instrument before and after using it to ensure that it is in good working condition.
- Page 5 • The detector may not detect any voltage if: a. The operator does not hold the detector. b. The operator is wearing gloves. c. The wire under test is partially buried or in a grounded metal conduit. d. The magnetic field generate by the voltage source is blocked, suppressed or interfered with. e.
- Page 6 EXTERNAL OVERVIEW NCV Sensor Flashlight Signal sensing LED Mode status indicator (red/low, green/high) Power button Flashlight button Pocket clip End of the detector (slide off to install/ remove battery TECHNICAL SPECIFICATIONS 90~1000V AV (red indicator) AC Voltage range 24~1000V AV (green indicator) Frequency Range 50Hz/60Hz Alarm Mode...
- Page 7 OPERATING INSTRUCTIONS TURNING ON THE DETECTOR Press of the power button to turn the device on. The buzzer will beep twice, and a red light will appear on the status indicator - the device is now ready for use. The default AC voltage detection range is 90-1000V.
- Page 8 Total Tools place of purchase during the warranty period specified above. If your warranty claim is accepted, we (or the Total Tools store that handles the claim on our behalf ) will, at our discretion, repair or replace the product, or refund money to you and take...
