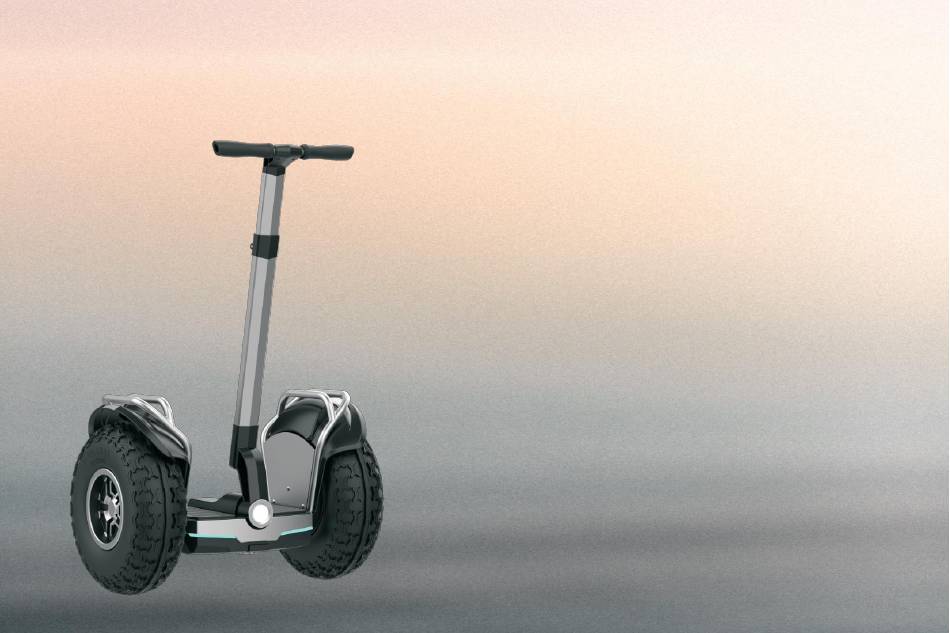

- Page 1 EcoRider X User Manual Self Balancing Scooter...
-
Page 3: Table Of Contents
5. App Guide ..........................................8 5.1 Downloading the App ..................................8 5.2 App Control Panel ....................................9 5.3 How to connect the X62 to your Smartphone using the app ................10 6. Overview ..........................................11 7. Assembling the X62 ......................................12 7.1 Check the Accessories... - Page 4 8.2 Power Button, USB Port and Charge Port ......................... 17 8.3 Charging Method ....................................18 8.4 How to use the parking stand ..............................19 9. Guide for safe riding the X62 ..................................20 9.1 Awareness ........................................20 9.2 Safety Compliance ....................................... 20 9.3 General Safety Instructions...
- Page 5 Contents 13. Main technical specifications ..................................36 14. Warranty Record ......................................... 39 15. Service Record ........................................40 5 of 42...
-
Page 6: About This User Manual
1. About this User Manual To learn to ride the X62 safely, you must read and follow all instructions and warnings in this manual, and watch the safety video (where applicable). It is importan t that you follow all the safety warnings and cautions that appear throughout this manual, and that you use good judgement when you ride your X62. -
Page 7: Introduction To The X62
This calculates the appropriate command to drive the motor to achieve the balancing effect. As X62 is a new type of personal transporter, it is difficult to define the type of the traditional classification; some think X62 should be a wheeled version of the unicycle, others think it is a kind of dynamic scooter. -
Page 8: App Guide
Introduction to the X62 The X62 uses the principle of dynamic balance, when the body moves, the center of gravity of the body action will change continuously to achieve the correct balance. With wheels instead of the foot, it replaces the high precision balance of the human being, is low-cost to run, non-pollutant, quiet and convenient. -
Page 9: App Control Panel
Installing the app 5.2 App Control Panel 9 of 42... -
Page 10: How To Connect The X62 To Your Smartphone Using The App
Open the iRobot app on your phone. In the top left hand corner there is an icon d. Press this icon, and it will pair your phone to the X62 WARNING: If there is more than 1 machine, turn on and pair only one machine at a time,... -
Page 11: Overview
Overview 6. Overview General View 11 of 42... -
Page 12: Assembling The X62
Assembling the X62 Assembling the X62 7.1 Check the Accessories After carefully unpacking, take out the leansteer assembly, the packing parts for the handle bar, and X62 mainframe in order. 12 of 42... -
Page 13: Checking The Package
Assembling the X62 7.2 Checking the package X62 contains the following parts, please check after opening the package. If there is anything missing, please contact your dealer. X62 main body LeanSteer Handgrip Charger Tool Screws User manual Warranty card 13 of 42... -
Page 14: Preparation Before Assembly
Assembling the X62 7.3 Preparation before assembly Before the assembling the X62 you should first locate the Phillips screwdriver supplied with the product in the package. This should be stored in a safe place for future maintenance. It is compliant with the metric standard, so you may interchange it with one either in your toolbox or from a tool store. -
Page 15: Install The Battery Pack (Battery Pack Replacement)
7.5 Install the battery pack (battery pack replacement) Lay X62 mainframe on it's back, exposing the underside of the battery housing. Install the battery pack using the M6 x 20 hexagon socket cap head screws, using a 5mm hexagonal allen key. -
Page 16: Function Introduction
Function Introduction 8. Function Introduction 8.1 OLED Display 16 of 42... -
Page 17: Power Button, Usb Port And Charge Port
8.2 Power Button, USB Port and Charge Port At the back of the mainframe of the X62, there is a USB charging port which supports standard USB equipment and provide 5V/1A current. You can charge the mobile phone or other USB devices with input <150mA charging. -
Page 18: Charging Method
Function Introduction 8.3 Charging Method 1st step: Find the charging port at the back of X62 mainframe, open the coverto the charging port, and check that the charging port is dry 2nd step: Connect the charging port with the charger (100~240V, global common), then plug it into the power AC supply. -
Page 19: How To Use The Parking Stand
Function Introduction 8.4 How to use the parking stand To release the parking stand: use the front of your shoe to strike the button on the front of the body of the vehicle. The parking stand will automatically release To retract the parking stand: use the front of your shoe, push the parking stand to the upmost parking position. 19 of 42... -
Page 20: Guide For Safe Riding The X62
When riding the X62, you should be cautious and keep a reasonable and safe distance from other people and other types of transport. This is because even though your handling of your X62 on the road or in a public surrounding is in compliance with the Guide for Safe Riding, you may be subject to the risks resulting from improper driving or operation of transport by other people. -
Page 21: General Safety Instructions
Guide for safe riding and handling d. Check your X62 to make sure that there are no loose, missing or damaged parts, and there are no abnormal sounds or continuous warnings displayed on the machine. e. Do not ride when under the influence of alcohol, sedative agent or stimulant at least 6 hours before. - Page 22 Do not take the X62 on the motorway Do not ride the X62 with more than one passenger, especially not a small child or for the rider to carry a baby in a baby harness Do not take both hands off the steering bar at the same time ...
- Page 23 Make sure that the X62 is switched off completely before carrying it, as injury may be caused by the quick rotation of the wheels. It is suggested that the vehicle be carried by 2 people...
-
Page 24: Automatic / Intelligent Safety
Depending upon the programme mode, (beginner mode 8km/hr, and skillful mode 20km/hr), if the speed is exceeded, the leansteer bar of the X62 will generate a pushback force to push the rider slightly backwards to stop the vehicle from accelerating. When this happens, the rider must adjust their body to the leansteer bar, keeping at least a fist's distance from the leansteer bar. - Page 25 Automatic / Intelligent Safety Additionally, if the rider remains on a steep slope for a long time, the footplate will recline to remind the rider to get off rather than overload and strain the motor. Other similar situations that would trigger this response would be on a steep slope, in a deep pit, and the weight of the rider (if he were very heavy).
-
Page 26: Critical Battery Power
10.2 Critical Battery Power If the X62 is showing critical battery power (usually less than 10%) the footplate will recline to prompt the rider to get off the unit. If the rider ignores this and continues to ride, the unit may stop suddenly. -
Page 27: Learning To Ride The X62
Having fully charged the vehicle, unplug the X62 from the mains b. Turn on the power switch on the body of the X62, and you will hear an audible welcome to start using the smart scooter – the light on the Signal Indicator will come on, which means the vehicle has started normally c. - Page 28 Learning to ride the X62 g. Lean your body forward very slowly, and feel the X62 move forward h. Recover your posture slowly to the upright position, and feel the vehicle decelerate and stop Practice items (g) and (h) until you are comfortable with moving and stopping...
-
Page 29: Stopping The Vehicle
Bring your buttocks downward (as though you are going to sit down) After the X62 stops, distribute your weight evenly on the footplate to achieve balance NOTE: IF YOU CONTINUE TO TILT BACKWARDS, THE VEHICLE WILL MOVE BACKWARDS... -
Page 30: Turning Left And Right
11.3 Turning Left and Right If you turn the steering bar in the left or right direction, the X62 will turn in the corresponding direction. Keep your knees slightly bent and tilted toward the direction in which you want to turn – the angle should be that of the leansteer bar (similar to skiing). -
Page 31: Getting Off The X62
Learning to ride the X62 11.4 Getting off the X62 Getting off the X62 is similar to walking down the stairs. For the first few attempts, ask your instructor to hold the leansteer bar. Keeping the X62 balanced by holding the leansteer bar with both hands, take your feet off the footplate one foot at a time ... -
Page 32: Assistance Mode
Learning to ride the X62 11.5 Assistance Mode Once you are no longer on the X62, and using your smartphone app, you can turn the vehicle from the standby mode to assistance mode. In this programme, you can manoeuvre the vehicle manually using the leansteer bar. -
Page 33: Locking The X62
11.6 Locking the X62 When not using your X62, open the smartphone app, and lock the vehicle using the padlock icon. After locking the X62, you will hear a voice prompt 'Locked'. Locking the vehicle itself cannot stop theft by it being carried away. -
Page 34: Maintenance
12.1 Cleaning the X62 To keep your X62 in good condition, clean it after each use. The X62 can be washed with a shower hose or garden hose with water pressure less than 1MPa (or 145PSI) to flush the mudguards. Pressure washing or soaking in water is not advised as this will cause serious damage to the X62. -
Page 35: Battery Maintenance And Transportation
6. If the X62 is left unused, the battery will continue to consume power from the battery, the refore: for storage of less than 30 days, keep the battery fully charged... - Page 36 Technical Specifications 13. Main technical specifications Technical Parameters MagnesiumAlloy + Aluminum Alloy + ABS + Rubber Material Main Material 12 - 60 Recommended Age Riding 130 – 200cm Recommended Height Requirements Max Speed 20KM/H Max Mileage① 35 – 40Km 75 - 80Km Max Load 150Kg 0°...
- Page 37 Technical Specifications Motherboard Parameters Double System Battery SAMSUNG18650 Lithium lon Battery 57.6V Rated Voltage 67.2V Max Charging Voltage Battery Rated Capacity（Ah) 7.8Ah 15.6Ah Over voltage Protection / Under voltage Protection Parameters Intelligent BMS /Short circuit Protection / Overheating protection, Automatic sleep /Wake Max Sustained Discharge Power③...
- Page 38 Technical Specifications Voice USB Charging (5V/1A) Bluetooth Music White / Silver / Space gray /Champagne gold Colour Option 38 of 42...
- Page 39 Technical Specifications Warranty Record WARRANTY RECORD Purchase Date Customer Name Contact Address Invoice Number Product Model Serial Number Distributor 39 of 42...
- Page 40 Technical Specifications Service Record SERVICE RECORD Repair Date Repair Details Remarks 40 of 42...
- Page 42 Greentouch Technologies (UK) Limited Unit 2, Greaves Industrial Estate Leighton Buzzard LU7 4UB Tel: 01525 376916 email: greentecgroup@outlook.com web: www.off-roadelectric.com...
