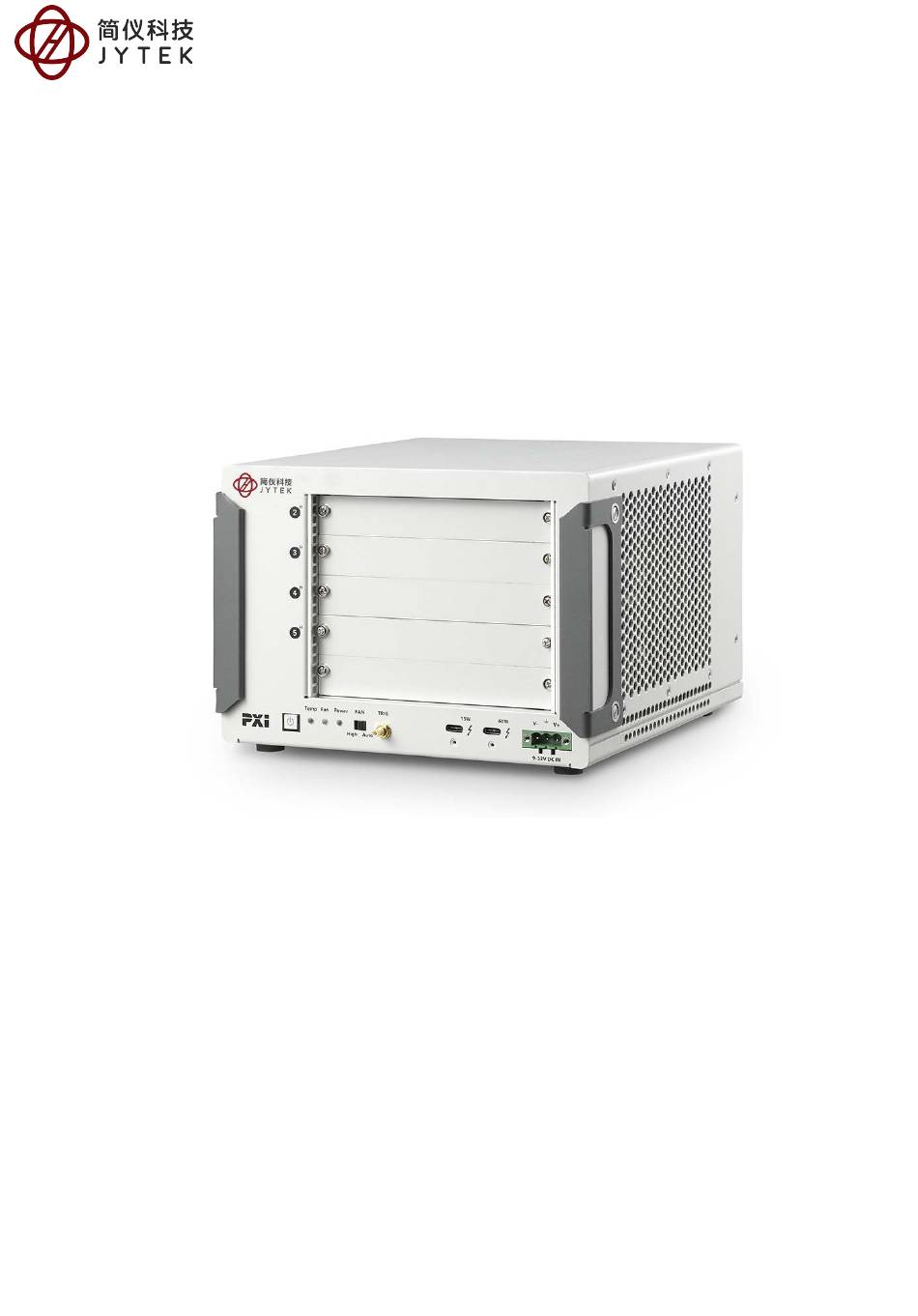

- Page 1 PXIe-62314T Compact 4-slot Thunderbolt™ 3 PXI Express Chassis Rev. 1.0 Manual Rev.: November 3, 2020 Revision Date:...
- Page 2 Revision History Revision Release Date Description of Change(s) 2021-3-1 Initial release Revision History...
-
Page 3: Preface
Restriction of Hazardous Substances (RoHS) directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental protection is a top priority for JYTEK. We have enforced measures to ensure that our products, manufacturing processes, components, and raw materials have as little impact on the environment as possible. - Page 4 California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Diox- ane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...
-
Page 5: Table Of Contents
2.5.1 Operation - Power on sequence....... 26 2.5.2 Operation - Power off sequence....... 27 PXIe-62314T Software Resources ........28 2.6.1 JYTEK PXI Platform Services (APPS)....28 2.6.2 MAPS Core............... 28 3 System Management & Configuration ......29 ChassisWatch..............30 3.1.1 Chassis Status Monitor.......... - Page 6 3.1.2 Smart Fan ..............31 A Appendix: Maintenance.............33 Installation Problems............33 FAQ ................... 33 Basic Troubleshooting ............36 Maintenance ..............37 A.4.1 Handling the Chassis..........37 A.4.2 Cleaning the Exterior ..........37 A.4.3 Power Requirements ..........37 Important Safety Instructions..........39 Getting Service ..............
-
Page 7: List Of Figures
List of Figures Figure 1-1: Backplane PCI Express Bus Topology......5 Figure 1-2: Top View............... 8 Figure 1-3: Left View............... 9 Figure 1-4: Front View ..............9 Figure 1-5: RightView ..............10 Figure 1-6: Rear View ..............10 Figure 1-7: Bottom View ............... - Page 8 This page intentionally left blank. viii List of Figures...
-
Page 9: List Of Tables
List of Tables Table 1-1: DC Power Output Specifications ........3 Table 1-2: Backplane Slot DC Power Current ........3 Table 1-3: PXI 10 MHz Reference Clock .......... 3 Table 1-4: PXI Express 100 MHz System Reference Clock ..... 4 Table 1-5: Backplane Slots &... - Page 10 This page intentionally left blank. List of Tables...
-
Page 11: Introduction
Introduction The JYTEK PXIe-62314T is a compact 4-slots PXI Express chas- sis equipped with high-performance PXI Express backplane and Thunderbolt 3 ports for uplink to a host PC or notebook computer. The chassis' modular design ensures easy maintenance and a high level of flexibility for a variety of applications using PXI sys- tems. -
Page 12: Specifications
1.2 Specifications PXI-5 PXI Express hardware specification Rev.1.0 compli- Dual Thunderbolt™ 3 ports (USB Type-C connectors, support USB PD 5V, 9V, 15V and 20V up to 60W/15W and daisy-chain capability) Thunderbolt™ 3 bidirectional data bandwidth transfers up to 40 Gb/s. -
Page 13: Table 1-1: Dc Power Output Specifications
DC Power Input Rated Input 9-32 VDC DC Power output Operation Ambient Temperature Maximum Total DC Output 0°C to 50°C (32°F to 122°F) 160W (DC input 16V-32V) 120W (DC input 9-12V) Voltage Maximum Total Load Regulation Maximum Ripple Noise Rail Current +12V ±5%... -
Page 14: Table 1-4: Pxi Express 100 Mhz System Reference Clock
PXIe 100 MHz System Reference Clock (PXIe_CLK100) Item Description Maximum slot-to-slot skew 100 ps Accuracy ±1 ppm max, 0°C to 55°C (32°F to 131°F) Maximum jitter 2.41 ps RMS phase-jitter (12kHz–20MHz) Duty-factor for PXIe_CLK100 45% to 55% Absolute differential voltage 400 to 900 mV (when terminated with a 50Ω... -
Page 15: Figure 1-1: Backplane Pci Express Bus Topology
Backplane Slots & Functionality Slot Type of Slot Number PXI Express Hybrid Slots 2 and 3 support PCIe x1 Gen2 Peripheral Slot link, and PCI 32-bit (33MHz 5VIO). 2,3,4,5 Slots 4 and 5 support PCIe x4 Gen3 link, and PCI 32-bit (33MHz 5VIO). Table 1-5: Backplane Slots &... -
Page 16: Table 1-6: Operating Temperature
Operating Temperature Peripheral Module Power Operating Environment Consumption Temperature When all installed peripheral modules 0°C to 50°C require less than 38W cooling (32°F to 122°F) capacity. Indoor use only When any peripheral module requires 0°C to 40°C more than 38W and less than 58W (32°F to 104°F) cooling capacity. -
Page 17: Table 1-7: Cooling
Cooling Item Detail Chassis Rear Fans Forced air circulation through one 136 (for peripheral modules) CFM fan Module slot airflow direction From bottom to top of module Module airflow intake Left side of chassis (when facing chassis) Module airflow exhaust Right side of chassis (when facing chassis) Peripheral Module Slot cooling... -
Page 18: Figure 1-2: Top View
Mechanical Dimensions and Weight Item Detail Height 148.4mm / 5.84" Width 207.9mm / 8.19" Depth 220.5 mm / 8.68" Net Weight 3.8KG, 8.38 lbs Gross Weight (with package, power cable, and filler 5.5KG, 12.13 lbs panels) Table 1-8: Mechanical Dimensions and Weight (All dimensions in millimeters) Figure 1-2: Top View Introduction... -
Page 19: Figure 1-3: Left View
220.50 235.20 Figure 1-3: Left View 207.90 200.40 Figure 1-4: Front View Introduction... -
Page 20: Figure 1-5: Rightview
Figure 1-5: RightView Figure 1-6: Rear View Introduction... -
Page 21: Figure 1-7: Bottom View
2-164 18.20 Figure 1-7: Bottom View Introduction... -
Page 22: Table 1-9: Pxi Express Slot Pin Definitions
A software package that provides PXI-2/PXI-6/PXI-9 software services, drivers, sample programs, and utilities for JYTEK PXI Express/PXI system modules and chassis. Please refer to the JYTEK PXI Platform Service user manual for more infor- mation. Measurement Automation and Platform Service (MAPS) A software package including JYTEK DAQ drivers and JYTEK PXI Software Service. -
Page 23: Table 1-10: Environmental Specifications
Environmental Specifications Item Detail Storage Ambient temperature: -40°C to 71°C (-40°F to 159.8°F ) Relative humidity: 10 to 90%, noncondensing Operating Ambient temperature: 0°C to 50°C (32°F to 122°F) Relative humidity10 to 90%, noncondensing Functional shock 30 G, half-sine, 11 ms pulse duration Random Vibration Operating: 5 to 500 Hz, 0.3 Grms, 3 axes Nonoperating: 5 to 500 Hz, 2.46 Grms, 3 axes... -
Page 24: Connectors, I/O And Controls
1.3 Connectors, I/O and Controls 1.3.1 Front Panel Figure 1-8: PXIe-62314T Front Panel Introduction... - Page 25 Front Panel Power & Status Item Feature Description Power Button Powers the chassis on/off. In order to avoid abnormal disconnection, the power button is locked when host PC is connected and powered on. Power off host PC and disconnect Thunderbolt 3 connection to unlock power button. There is a reserved 2-pin power button connector located on the bottom side of the PXIe-62314T, inside a cover.
-
Page 26: Table 1-11: Front Panel Power & Status
Item Feature Description Thunderbolt 3 Port Thunderbolt 3 compliant with USB power 5V up to Thunderbolt 3 Port Thunderbolt 3 compliant with USB PD 5V, 9V, 15V and 20V up to 60W DC Input Wide range 9-32V DC input, maximum 160W. Number of positions: 3, pitch: 5.08 mm Reference connector models: •... -
Page 27: Rear Panel
1.3.2 Rear Panel Ground Stud Cable Tie Anchors Figure 1-9: PXIe-62314T Rear Panel 1.3.3 Positions of Backplane Thermal Sensors Positions of thermal sensors. Thermal sensor 1 Thermal sensor 2 Thermal sensor 3 Figure 1-10: PXIe-62314T Backplane Thermal Sensor Positions For details about chassis temperature detection, please see “Chassis Status Monitor”... -
Page 28: Pci Express
1.3.4 PCI Express PCI Express Link Capability The PXIe-62314T backplane provides a PCIe Gen3 switch fabric, allowing PCI Express bus data streams between the Thunderbolt 3 ports and all peripheral slots. Connector pin assignments of the PXI Express Hybrid Periph- eral Slots, comply with the default pin assignments as defined in PXI-5 PXI Express hardware specification Rev.1.1. -
Page 29: Figure 1-11: 3U Pxi Express Peripheral Module
PXI Express Hybrid Peripheral Slots Four PXI Express hybrid peripheral slots are provided on the PXIe-62314T. Slots 2 and 3 are connected by a PCIe Gen2 x1 link. Slots 4 and 5 are connected by a PCIe Gen3 x4 link. All slots share the same PCIe uplink to the host PCIe controller via Thunderbolt 3 port. -
Page 30: Figure 1-12: 3U Hybrid Slot Compatible Pxi-1 Peripheral Module
Figure 1-12: 3U Hybrid Slot Compatible PXI-1 Peripheral Module Local Bus The local bus on a PXI backplane is a daisy-chained bus that connects each peripheral slot with adjacent peripheral slots to the left and right. The quantity of local bus lines is decreased from thirteen to one (PXI_LBL6 and PXI_LBR6) on a PXI Express backplane. -
Page 31: Figure 1-13: Trigger Bus And Bus Bridges
Trigger Bus There is one trigger bus segment on the PXIe-62314T back- plane with each trigger bus segment containing 8 trigger lines connecting all slots on the same segment, providing inter-mod- ule synchronization. PXI and PXI Express modules can exchange trigger or clock signals through the trigger bus, allowing precisely timed response to asynchronous external events. - Page 32 Reference Clock The PXIe-62314T backplane supplies a single-ended 10MHz reference clock (PXI_CLK10) and differential 100MHz clock (PXIe_CLK100) to each peripheral slot for inter-module syn- chronization. The independent buffers drive the clock signal to each peripheral slot. These common reference clock signals can synchronize multi- ple modules in a PXI Express chassis.
-
Page 33: Getting Started
Getting Started This chapter describes procedures for installing the PXIe-62314T and making preparations for its operation. Please contact JYTEK or authorized dealer if there are any problems during the installation. Diagrams and illustrated equipment are for reference only. Actual system configuration and specifications may vary. -
Page 34: Power Supply Budget Considerations
2.2 Power Supply Budget Considerations Please review the power consumption of all modules and devices connected to the Thunderbolt 3 ports on the PXIe-62314T (e.g. notebook, USB devices). The total maximum consumed power shall not exceed 80% of the rated power output of the DC power supply connected to the PXIe-62314T. -
Page 35: Installation
3. Download and install the required drivers for each installed peripheral modules on the host PC/notebook. 4. Download JYTEK PXI Platform Services from the PXIe-62314T product web page. Install the software package on the host PC/notebook by running setup.exe and following the on screen instructions. -
Page 36: Operation - Power On Sequence
2.5.1 Operation - Power on sequence 1. Connect the PXIe-62314T to a host PC/notebook using a Thunderbolt 3 cable (the PXIe-62314T 60W port sup- ports USB Power Delivery for charging). 2. Connect Thunderbolt 3 peripheral devices to the other port of the PXIe-62314T if required. 3. -
Page 37: Operation - Power Off Sequence
2.5.2 Operation - Power off sequence 1. Power off the host PC/notebook. 2. Disconnect the Thunderbolt 3 cable from the PXIe-62314T and the host PC/notebook. 3. Press the power button on the PXIe-62314T front panel to power off the chassis. Not following the correct power on and power off sequences may result in events that cannot be properly handled by the host PC/notebook, BIOS, operating sys-... -
Page 38: Pxie-62314T Software Resources
The following software resources are available for various applica- tion requirements. JYTEK PXI Platform Services (APPS) 2.6.1 JYTEK PXI Platform Services is a software kit consisting of a util- ity and a group of software services and drivers. JYTEK ChassisWatch ... -
Page 39: System Management & Configuration
The PXIe-62314T chassis provides advanced system monitoring and controlling. Chassis conditions, including internal tempera- ture, fan speed, and DC voltage can all be monitored via JYTEK ChassisWatch — a Windows based utility for JYTEK PXIe chas- sis monitoring and configuration. -
Page 40: Chassiswatch
3.1 ChassisWatch The PXIe-62314T chassis provides advanced system monitoring and controlling via the JYTEK ChassisWatch utility. Related func- tions such as status monitoring, configurable PXI trigger bus bridges, and Smart Fan are introduced in the following sections. For more information about ChassisWatch, please refer to the JYTEK PXI Platform Services user manual. -
Page 41: Smart Fan
3.1.2 Smart Fan When the fan switch on the rear panel is set to AUTO, fans run at different speeds based on the measured temperature. Target Temperature indicates the temperature at which fans run at 100%. Using the default 50°C as an example, fans run at 40% when all temperature readings are less than 25°C, and begin ramp-up when any reading exceeds 25°C. -
Page 42: Table 3-1: Target Temperature Parameters Legend
Mark Temperature Event 0°C / 32°F Lowest chassis temperature at which fan speeds commence ramping up for final 25° temperature mark (see E) 45°C / 113°F Highest chassis temperature at which fan speeds commence ramping up for final 70° temperature mark (see C) 70°C / 158°F Highest chassis temperature at which fan speeds... -
Page 43: A Appendix: Maintenance
Appendix A - Maintenance This Appendix describes basic maintenance and troubleshooting instructions for the PXIe-62314T chassis. A.1 Installation Problems Inability to start the system frequently results from incorrect instal- lation of the peripheral modules, and other components. Before starting the system, please ensure that: The host PC/notebook is properly connected via a certifi- ... - Page 44 Q: Where can I find a Thunderbolt 3 host PC/notebook and cables? A: A list of Thunderbolt 3 PCs/notebooks/cables can be found in Thunderbolt 3 official website: https://thunderbolttechnology.net/products Q: How do I identify a Thunderbolt 3 port on a PC/notebook? How do I identify a certified Thunderbolt 3 cable? A: The Thunderbolt 3 logo can be used to identify certified Thun- derbolt 3 ports and cables.
- Page 45 Q: Can existing PXIe/PXI/cPCI peripheral modules and drivers be used with a Thunderbolt 3 PXIe chassis such as the PXIe-62314T? Are there any required modifications? A: The existing drivers based on PCI/PCI Express software framework are natively supported by Thunderbolt 3 host PCs and PXIe chassis.
-
Page 46: Basic Troubleshooting
A.3 Basic Troubleshooting Problem Ensure that: The power cord is securely plugged into the chassis power connector and wall socket/power System fails to strip power up The wall socket/power strip is live The power button on the chassis ... -
Page 47: Maintenance
Problem Ensure that: Airflow from the outlet apertures is unobstructed and steady; if not, ensure that adequate clearance for the intake apertures is pro- vided Temperature LED Over threshold event of tempera- (amber) is blinking ture is triggered. If the temperature of exhausted air is normal (70°C is the default threshold setting) but the temperature LED is still blinking, contact your dealer for further... - Page 48 This page intentionally left blank. Maintenance...
-
Page 49: Important Safety Instructions
Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures ou des dommages. - Page 50 A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. Risque d’explosion si la pile est remplacée par une autre de CAUTION: type incorrect.
-
Page 51: Getting Service
Getting Service Customer satisfaction is our top priority. Contact us should you require any service or assistance. Shanghai Jianyi Technology Co., Ltd. www.jytek.com Website Service Telephone No. +86-21-50475899 Fax No. Mailing +86-21-50475899 Address Room 201, Building 3, NO.300 Fangchun Road, Shanghai...
