Versa Technology VX-200M-X3 Quick Start Manual

Quick Start Guide
VX-200M-X3
Industrial Micro 1000Base-T to 1000Base SFP Ethernet Media Converter
This quick start guide describes how to install and use the Industrial Media Converter.
This is the Media Converter of choice for harsh environments constrained by space.

Overview

VX-200M-X3 is a micro media converter that supports external SFP modules and meets EN55022. It is an
industrial product whose operating temperature range is -10°C to 60°C. VX-200M-X3 supports 1000M Ethernet
port and 1000M SFP port. The Ethernet port supports both half-duplex and full-duplex mode. VX-200M-X3 is the
same at the transmitter or receiver sides. Users can use different type of SFP modules (single-mode/multi-mode
fiber, 1/2 core) as needed.The sleek design of the micro media converter occupies limited space and it's an ideal
solution for easy installation within most camera housings.
Disclaimer:
To ensure trouble free transportation and storage, all Versa Technology products must be thoroughly inspected,
tested and properly packed before delivery. Check the product upon receipt for any visible damage, which may
have been caused during shipment.

Package Content

• VX-200M-X3 Media Converter x 1
• Power Adapter x 1
• Quick Start Guide x 1

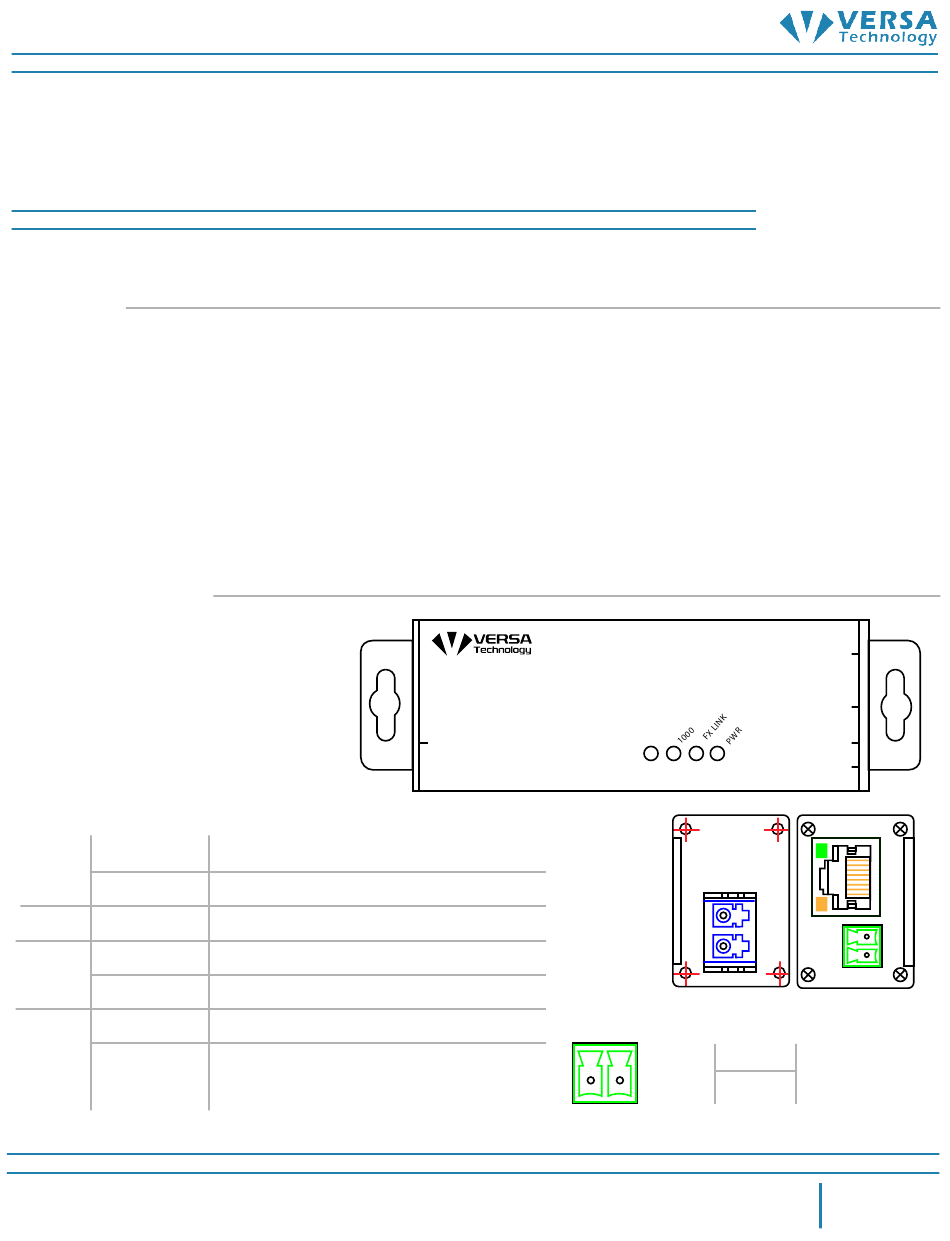

Physical Description
The Port Status LEDs
LED State
Green
PWR
Off
Green
1000
Green
SPD
Off
Steady
LINK/
Flashing
ACT
Indication
Power on
Power off
TX and RX Fiber link stable
1000Base-TX
Network not connected
A valid network connection established
Transmitting or receiving data
ACT stands for Activity
1000M Ethernet Media Converter
SFP
Front/Rear Panel
Power Connection
-
- GND
12VDC
+ 12V
+
USA: 800-989-2797
Worldwide: 909-591-8891
Fax: 909-591-6962
LINK/ACT
1000
SPD
+
DC
12V
-
Terminal Block
