Summary of Contents for ADI NX-FML4390
Page 1

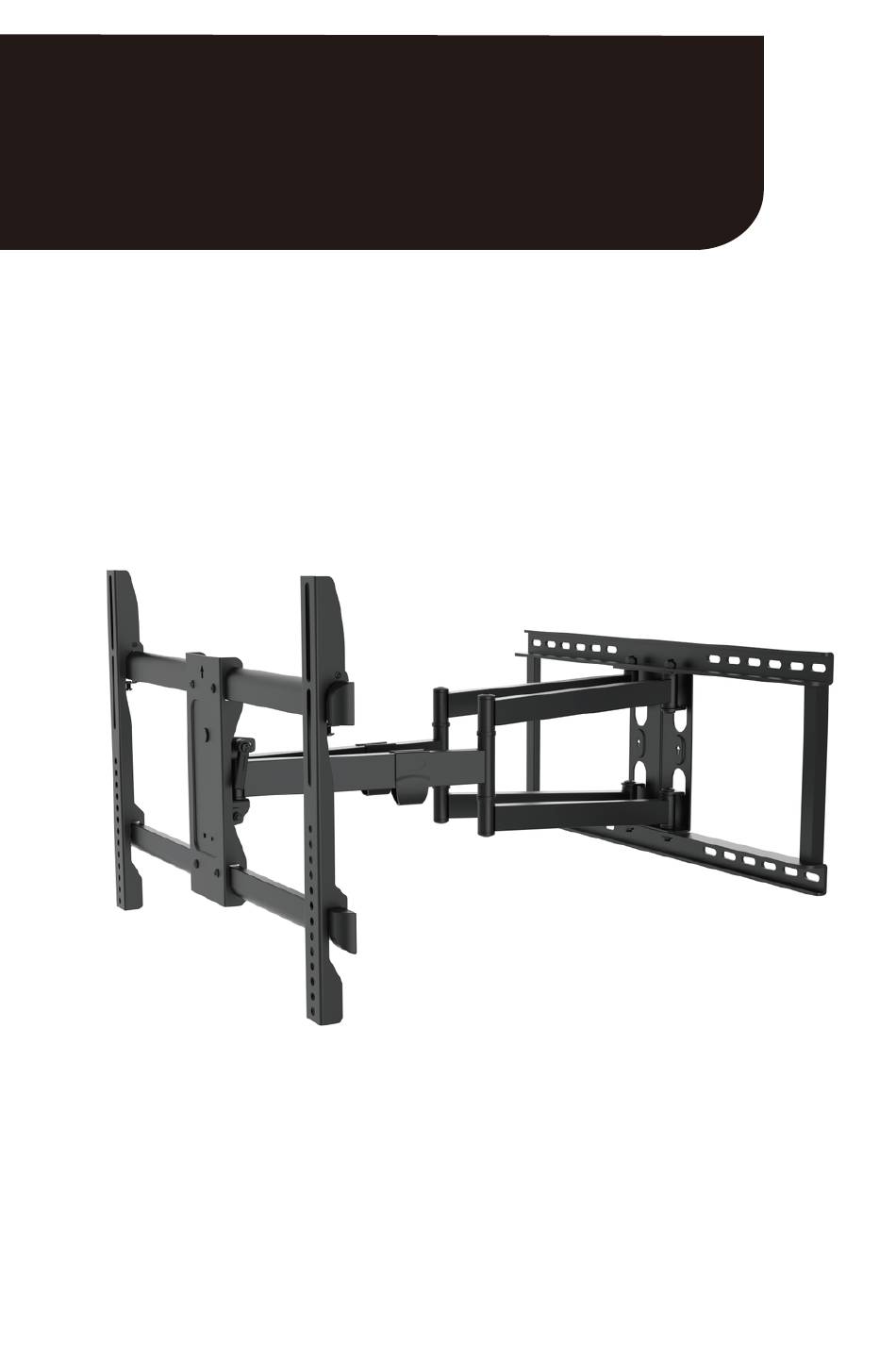

NX-FML4390 Full Motion Large TV Mount 43-90"/120lb...
Page 2
ADI only warrants those products branded for ADI and sold by ADI. Any other products branded by third parties are warranted by the third party manufacturer for a period as defined by the third party manufacturer, and ADI assigns to Buyer those warranties and only those warranties extended by such third party manufacturers or vendors for non-ADI branded products.
Page 3
Any suggestions by ADI or ADI’s agents regarding use, applications or suitability of the products shall not be construed as an express warranty or condition unless confirmed to be such in writing by ADI. ADI does not represent that the products it sells may not be compromised or circumvented; that the products will prevent any personal injury or property loss by burglary, robbery, fire or otherwise, or that the products will in all cases provide adequate warning or protection.
Page 4
If any ADI branded products are found to be in good working order or such product’s inability to function properly is a result of user damage or abuse, the product will be returned to Buyer in the same condition as received and Buyer shall be responsible for any return freight changes.
TOOLS NEEDED Herramientas Necesarias Outils Requis 7/32” 3/8” 5.5 mm 10 mm SYMBOLS 150lbs Socket Wrench Caution Tighten Pencil Mark Screwdriver Drill Level Heavy! Llave española Precaución Ajustar Marque con lápiz MW150F64 Destornillador Tres Lourd Agujerear Clé ouverte Attention Serrer Marque de crayon Tournevis Nivel...
Page 6
PRODUCT COMPONENT PARTS Universal Adapter Range Minimum: 200mm x 100mm (W X H) Maximum: 600mm x 400mm (W X H) Product Components Contents Description all Plate Vertical Rails Horizontal Bracket...
Page 7
CORNER MOUNTING INFORMATION The Large Full Motion Mount can be installed in a corner location when needed. Prior to installing the mount it is important to determine the appropriate corner wall to install the mount. Please see diagrams below to assist in determining the appropriate wall placement to use.
Page 8
STEP 1- CONNECT VERTICAL RAILS TO TV Connect Vertical Rails to TV Conecte el adaptador al TV Connectez l'adaptateur au moniteur STEP 1- IF MORE CLEARANCE IS NEEDED Connect Vertical Rails to TV Conecte el adaptador al TV Connectez l'adaptateur au moniteur...
Page 9
S TEP 2- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE HARDWARE KIT ARE TOO LONG OPTION OPTION OPTION...
Page 10
STEP 2A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3A) STEP 2B- Find stud, mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre DRILL BIT NOT INCLUDED STEP 2B –...
Page 11
STEP 3A – SOLID CONCRETE INSTALLATION Level Solid concrete Drill pilot hole STEP 3B – DRILL PILOT HOLES AND MOUNT WALL PLATE Insert wall anchors into concrete wall Secure lag bolts to wall bracket...
Page 12
STEP 4A - ATTACH HORIZONTAL BRACKET TO WALL PLATE PRE-ASSEMBLED HEXAGON SCREW P 12...
Page 13
STEP 4B - ATTACH VERTICAL RAILS TO HORIZONTAL BRACKET Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion Loosen screws then raise safety latches P 13...
Page 14
STEP 4C - SECURE THE VERTICAL RAILS Tighten screws after lowering safety latches...
Page 15
STEP 5 - ADJUST TILT TENSION/ POST INSTALLATION LEVEL To adjust the tilt in both sides, loosen both tilt levers and move TV to desired position. Tighten both tilt levers to hold desired tilt. Adjust tilt mechanism tension with ratchet handle levers (follow steps A-C below with both handles) a) Rotate handle clockwise as far as possible.
Page 16
NX-FML4390 CAUTION: DO NOT EXCEED MAXIMUM WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Max Loading Weight: 120 lbs 40049 30316 PN: NX-FML4390...
