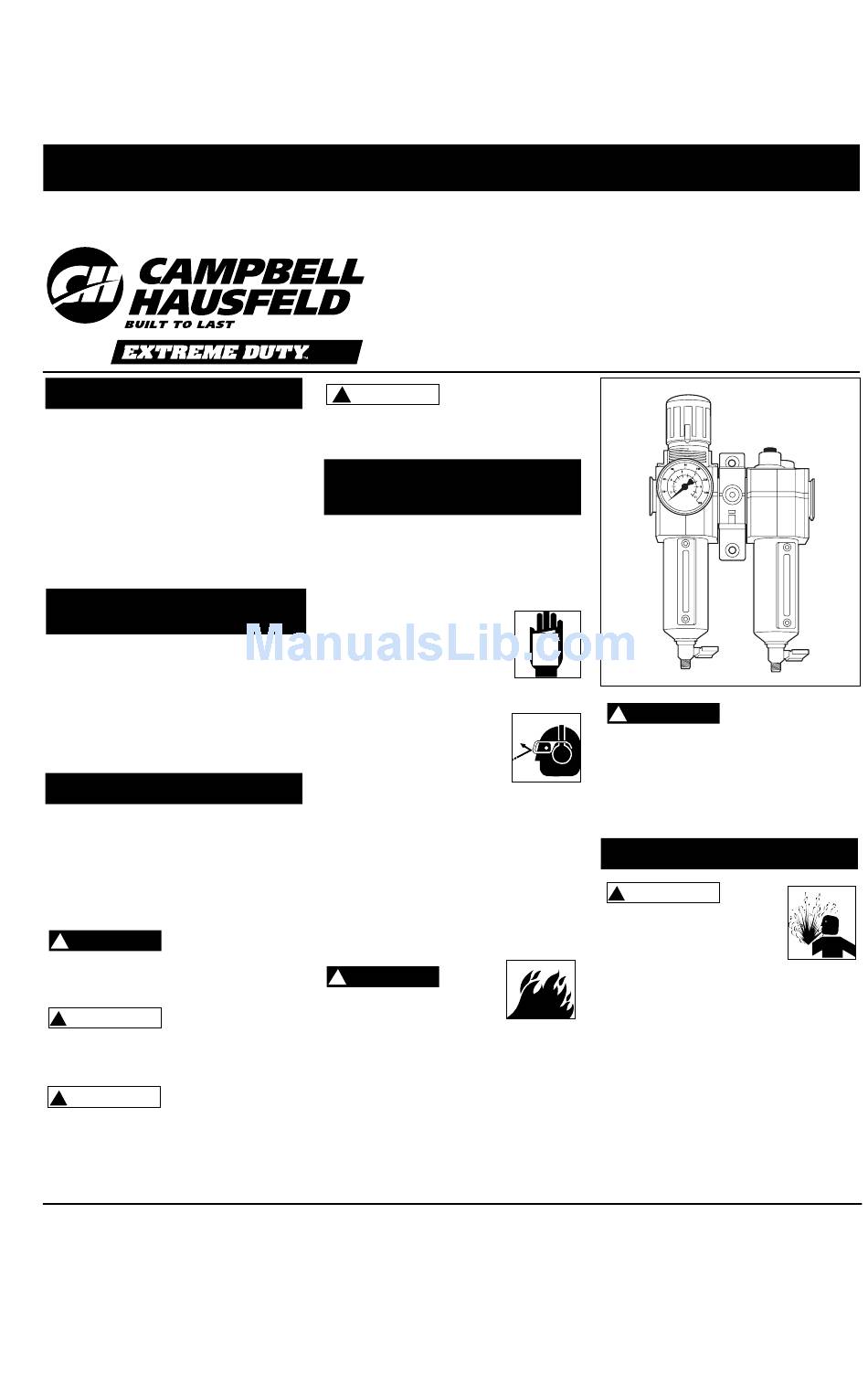

Campbell Hausfeld PA207802 Operating Instructions And Parts Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
The Campbell Hausfeld combination
filter/regulator/lubricator is a three part
system. The filter is designed to remove
most liquid and solid particles from the
air supply. The self-relieving pressure
regulator is used to adjust the outlet
pressure between 0 - 150 psi. The
lubricator provides oil to the air tool
and increases the life of the tool.
Specifications
Maximum
Input Max.
Pressure Temp.
250 psig 175˚ F
Unpacking
After unpacking the unit, inspect
carefully for any damage that may have
occurred during transit. Make sure to
tighten fittings, bolts, etc., before
putting unit into service.

Safety Guidelines

This manual contains information that
is very important to know and under-
stand. This information is provided for
SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
Danger indicates
DANGER
!
an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
Warning indicates
WARNING
!
a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Caution indicates a
CAUTION
!
potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
© 2000 Campbell Hausfeld
Filter • Pressure Regulator
• Lubricator
NOTICE
!
information, that if not followed, may
cause damage to equipment.
General Safety
Information
This product is a part of a high pressure
system and the following safety
precautions must be followed at all
times along with any other existing
Maximum
safety rules.
Output
Read this instruction manual
Pressure
before installing this device
150 psig
to the air supply system. Be
thoroughly familiar with
the controls and the proper
use of the equipment.
1. Safety glasses must be
worn during operation.
Always work in a well
ventilated area.
2. Do not exceed any pressure rating
of any component in the system.
3. Protect air lines from damage
and/or punctures.
4. Check air hoses for weak or worn
condition before each use. Make
sure all connections are secure.
5. Keep all nuts, bolts and screws tight
and ensure equipment is in safe
working condition.
DANGER
!
This product is specifically
designed for compressed
air service ONLY. Use with any other
material (liquid or gas) is a
misapplication and not permitted. Use
or injection of certain hazardous liquids
or gases in the system (such as oxygen,
alcohol or liquid petroleum gas) will
harm the unit and result in a
combustible condition or hazardous
external leakage. Misapplication will
void all warranties and manufacturer's
responsibilities.
For parts, product & service information
visit www.campbellhausfeld.com
Notice indicates
important
MANUAL

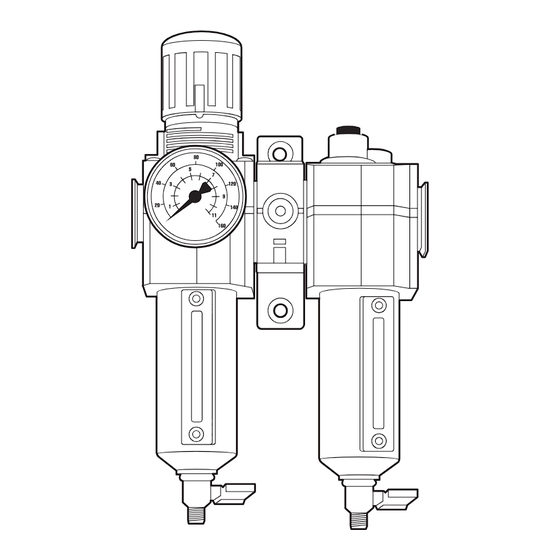

Figure 1
!
regulators is limited. Install additional
pressure relief devices to alleviate over
pressurized conditions. Written
approval must be obtained from
manufacturer if this device is to be
used for life support systems or other
non-industrial applications.
Installation
!
Disconnect power and
release all pressure from
the system before attempt-
ing to install, service,
relocate or perform any maintenance.
1. Install the gauge. Use Teflon
2. Remove plug from plastic bag. Use
3. Securely mount the filter /regula-
Model PA207802
The relief flow
DANGER
capacity of
WARNING
on all threads.
Teflon ® tape on the threads and
install securely in the port opposite
of the gauge (See Figure 2).
tor / lubricator in a vertical position
as close as possible to air tool
connection. The inlet port is marked
with an arrow on the body to
indicate the air flow direction.
IN242702 4/00
® tape
