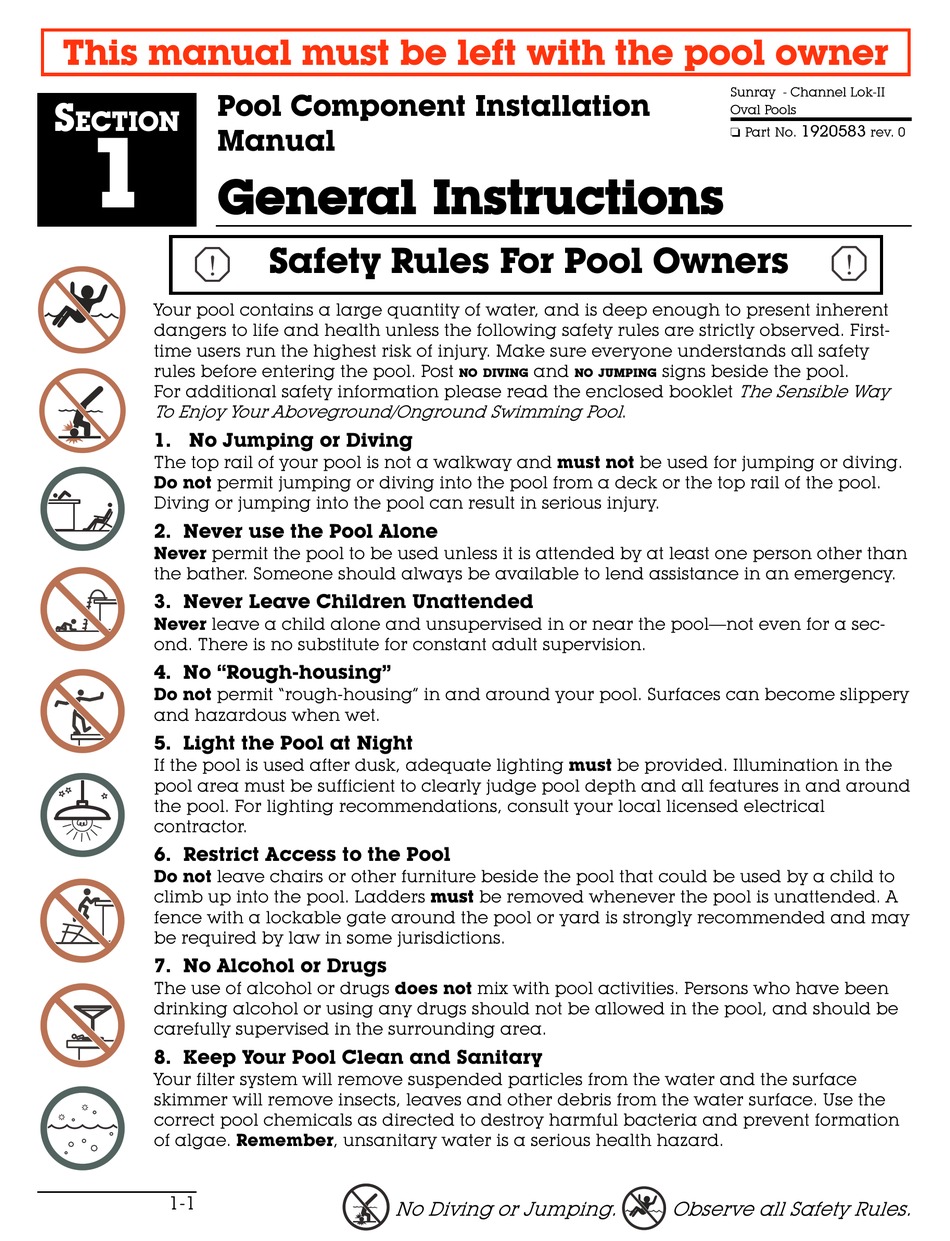

This manual must be left with the pool owner
Pool Component Installation
Manual
1
General Instructions
Your pool contains a large quantity of water, and is deep enough to present inherent
dangers to life and health unless the following safety rules are strictly observed. First-
time users run the highest risk of injury. Make sure everyone understands all safety
rules before entering the pool. Post
For additional safety information please read the enclosed booklet The Sensible Way
To Enjoy Your Aboveground/Onground Swimming Pool.
1. No Jumping or Diving
The top rail of your pool is not a walkway and must not be used for jumping or diving.
Do not permit jumping or diving into the pool from a deck or the top rail of the pool.
Diving or jumping into the pool can result in serious injury.
2. Never use the Pool Alone
Never permit the pool to be used unless it is attended by at least one person other than
the bather. Someone should always be available to lend assistance in an emergency.
3. Never Leave Children Unattended
Never leave a child alone and unsupervised in or near the pool—not even for a sec-
ond. There is no substitute for constant adult supervision.
4. No "Rough-housing"
Do not permit "rough-housing" in and around your pool. Surfaces can become slippery
and hazardous when wet.
5. Light the Pool at Night
If the pool is used after dusk, adequate lighting must be provided. Illumination in the
pool area must be sufficient to clearly judge pool depth and all features in and around
the pool. For lighting recommendations, consult your local licensed electrical
contractor.
6. Restrict Access to the Pool
Do not leave chairs or other furniture beside the pool that could be used by a child to
climb up into the pool. Ladders
fence with a lockable gate around the pool or yard is strongly recommended and may
be required by law in some jurisdictions.
7. No Alcohol or Drugs
The use of alcohol or drugs does not mix with pool activities. Persons who have been
drinking alcohol or using any drugs should not be allowed in the pool, and should be
carefully supervised in the surrounding area.
8. Keep Your Pool Clean and Sanitary
Your filter system will remove suspended particles from the water and the surface
skimmer will remove insects, leaves and other debris from the water surface. Use the
correct pool chemicals as directed to destroy harmful bacteria and prevent formation
of algae. Remember, unsanitary water is a serious health hazard.
1-1
Safety Rules For Pool Owners
No Diving or Jumping.
and
be removed whenever the pool is unattended. A
Sunray - Channel Lok-II
Oval Pools
1920583
Part No.
signs beside the pool.
Observe all Safety Rules.
rev. 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Channel Lok-II and is the answer not in the manual?

Questions and answers

Summary of Contents for Bespoke Channel Lok-II

  • Page 1 This manual must be left with the pool owner Sunray - Channel Lok-II Pool Component Installation Oval Pools 1920583 Part No. rev. 0 Manual General Instructions Safety Rules For Pool Owners Your pool contains a large quantity of water, and is deep enough to present inherent dangers to life and health unless the following safety rules are strictly observed.
  • Page 2 A. Introduction to Installing your Pool Read all instructions completely before you begin. These instructions explain how to install your pool. Simply follow the step- by-step directions. Start with this part, S 1 and use the other instruc- tions, S 2 to 4 to put together your entire pool.
  • Page 3 2. Things to Avoid Do not locate your pool near or on any of the following: • Overhanging tree branches. • Overhead wires, clotheslines. • Buried pipes and wires— contact your gas, electric and telephone utilities to find buried pipes and wires before you dig.
  • Page 4 12 x 18 Oval Pool Dimensions 72" (183 cm) 84" (213 cm) 36" (91 cm) M 36" (91 cm) 72" (183 cm) W 116" (295 cm) 72" (183 cm) 80-1/2" (204 cm) Centreline Centreline Centre Point Centre Point 121-1/2" (309 cm) Pool Wall Pool Wall Pool Area...
  • Page 5 18 x 33 Oval Pool Dimensions 108" (274 cm) 120" (305 cm) 90" (229 cm) M 30-1/2" (77 cm) N 59-1/2" (151 cm) 180" (457 cm) W 152" (386 cm) 108" (274 cm) 140-5/8" (357 cm) 176-5/8" (449 cm) Centreline Centreline Centre Point Centre Point...
  • Page 6 Pool Size Length of String 12' x 18' 84" (213 cm) 12' x 24' 84" (213 cm) 15' x 24' 102" (259 cm) 15' x 30' 102" (259 cm) 18' x 33' 120" (305 cm) c. Join the two pegs (A) and (B) with a piece of string.
  • Page 7 g. Mark areas along both straight sides of your oval. Use pegs and string as a guide for the can of spray paint to mark straight lines. Use the chart below to find the correct width W from the centreline of the pool. The ends of the side areas should line up squarely with stakes (A) and (B).
  • Page 8 c. Nail one end of the 2-by-4 to the top of the stake where the level of the pool foundation is lowest. Drill a hole for the nail in the centre of the top of the stake first and make the hole big enough so the nail is a little loose and can be re- moved without moving the...
  • Page 9 f. Do not fill in low areas. Filling will create an unsafe founda- tion for your pool. Holes from small stones and small dips and hollows may be filled in, but the soil must be hard- packed with a tamping tool. g.
  • Page 10 6. Prepare Patio Stones a. Locate the first patio stone by measuring the distance M Important Note: from the centre of stake (H) to If the pool is being the centreline of the stone. installed on a Use the chart below to find poured concrete the right distance M for your pad the...
  • Page 11 j. Carefully dig out each patio Hint: stone Crushed lime- 26“ (66 cm) to face trench. stone or equiva- of patio stone Painted centreline lent must be used Measure Concrete of trench instead of brick from the patio stone Pool Wall Line 12"...
  • Page 12 Parts List and Overview of Buttress Assembly Inside of Pool Key Part Name Part No. Qty. Key Part Name Part No. Qty. Upright (pool specific) Hardware Bag (Yellow) 1184292 Diagonal (pool specific) 1 per set of buttresses; each bag contains: Diagonal Bracket 1320152 1/4"-20NC serrated flange hex nut...

  • Page 13: Actual Size

    HARDWARE FOR CHANNEL LOK-II POOLS PART TOOL REQUIRED FOR DESCRIPTION ACTUAL SIZE NUMBER INSTALLATION PHILLIPS NUMBER 3 SELF TAPPING SCREWDRIVER SCREW 1183273 #12 x 1/2 INCH RED HANDLE #2 LONG ROBERTSON SCREWDRIVER SERRATED FLANGE 1184052 7/16 INCH WRENCH OR HEXAGON NUT...
  • Page 14 7. Strap Preparation for the Buttresses a. Gently flatten any kinks or bends out of the straps (key 8). b. Lay the strap across the lev- elled area for the pool as shown in diagram 30. Centre the strap over the patio stone as shown in diagram 30.
  • Page 15 8. Installing the Upright a. Using a straight edge (you can Use a hold down plate to drag the area to Use a hold down plate to drag the area to Use a hold down plate to drag the area to either side of the strap smooth and level either side of the strap smooth and level either side of the strap smooth and level...
  • Page 16 c. Fasten one upright (key 9) to the base plate using three 3/4" long bolts (key 21) and nuts (key 10). Make sure the bot- tom end of the upright is fastened to the base plate. Caution: The bottom end of the upright Failure to properly has three large holes which install and tighten...
  • Page 17 Very important: as you swing the diagonal down, make sure you apply constant upward pressure on the end of the diagonal brace with the tabs to ensure they stay fully locked in position in the slots. c. Fasten the bottom end of the diagonal brace to the diagonal bracket (key 16) with two 2-1/4"...
  • Page 18 Important: Make sure each hold down plate lies com- Hold down plate must lie pletely flat. The hold down completely flat on the ground plate must lie flat or it may lift and damage the pool liner after the pool is filled with water.
  • Page 19 Pool Component Installation Manual Assembling the Pool Base & Side Buttresses 1. Install the Curved Bottom Rails a. Each pool uses two, three or four different types of curved bottom rails (key 13). The rails are colour coded or stamped with a part number.
  • Page 20 b. The pool has been supplied with resin rail supports. If you have a 12 x 18 pool proceed Hint: to step (d). For all other pools When measuring Resin rail slide the resin rail support to support the distance to the face of each base the middle of the buttress plate, use a piece...
  • Page 21 Important: make sure you slide the rail into the notch so the closed, square part of the rail Note: is in the notch, not the open If you want, the groove part of the rail (see patio stones around the round diagrams 7 and 8).
  • Page 22 sure the patio stones are perfectly level and flush with the ground. Use the carpenter’s level and a 2-by-4 between patio stones to make sure the stones are level with each other. j. Use a carpenter’s level as you install each curved bottom rail to make sure it is level.
  • Page 23 c. After the pool wall has been installed, reconfirm distances to the base plates. Make sure the round ends of the pool have been prop- erly located or the pool wall will not be symmetrical. When you come to Section 3, Part A, replace Step 1(d) with the following: 1.
  • Page 24 When you come to Section 3, Part A, insert the following extra Steps 2(f), (g) and (h) after Step 2(e): 2. Join the Ends of the Pool Wall f. Before proceeding, make sure the pool liner is completely installed and all of the slotted tubes and connectors are in place.
  • Page 25 Additional Installation Information for Section 4 When you come to Section 4, Part A, replace Step 2 with the following: 2. Install the Vertical Columns and Top Rails Note: You must use any additional components that come with your pool and are required for proper assembly as described in your manual Section a.
  • Page 26 a. Hook a buttress top plate (key 17) over the top edge of the pool wall (key 5). Place the buttress top plate down over the top of the upright (key 9) with the tabs on the outside of the upright.
  • Page 27 i. Place a top connector (key 4) over the top edge of the pool wall (key 5) with the tab on the outside of the pool. Line up the hole in the tab with the screw hole near the top of the vertical column.
  • Page 28 D. Maintaining your Pool After you have finished installing your pool, follow these instructions to keep it clean and in good shape. 1. The Liner a. Check the liner regularly for leaks. Caution: b. Minor repairs can be made to the liner with a repair kit. Chlorine can damage your pool 2.

  • Page 29: Winterizing Your Pool

    E. Winterizing your Pool At the end of the swimming season, you must follow these directions to make your pool ready for the winter. 1. Lower the Water Level a. Lower the water level in your pool until it is about 6" (15 cm) below the water return fitting.
  • Page 30 Important Winterizing Notice All Pools: The water level must be maintained at least 3" (76 mm) below the skimmer opening throughout the winter. Surplus water must be removed by pumping, draining or siphoning so that it doesn’t enter the skimmer during the winter. Remove all hoses attached to the skimmer and return fittings.
