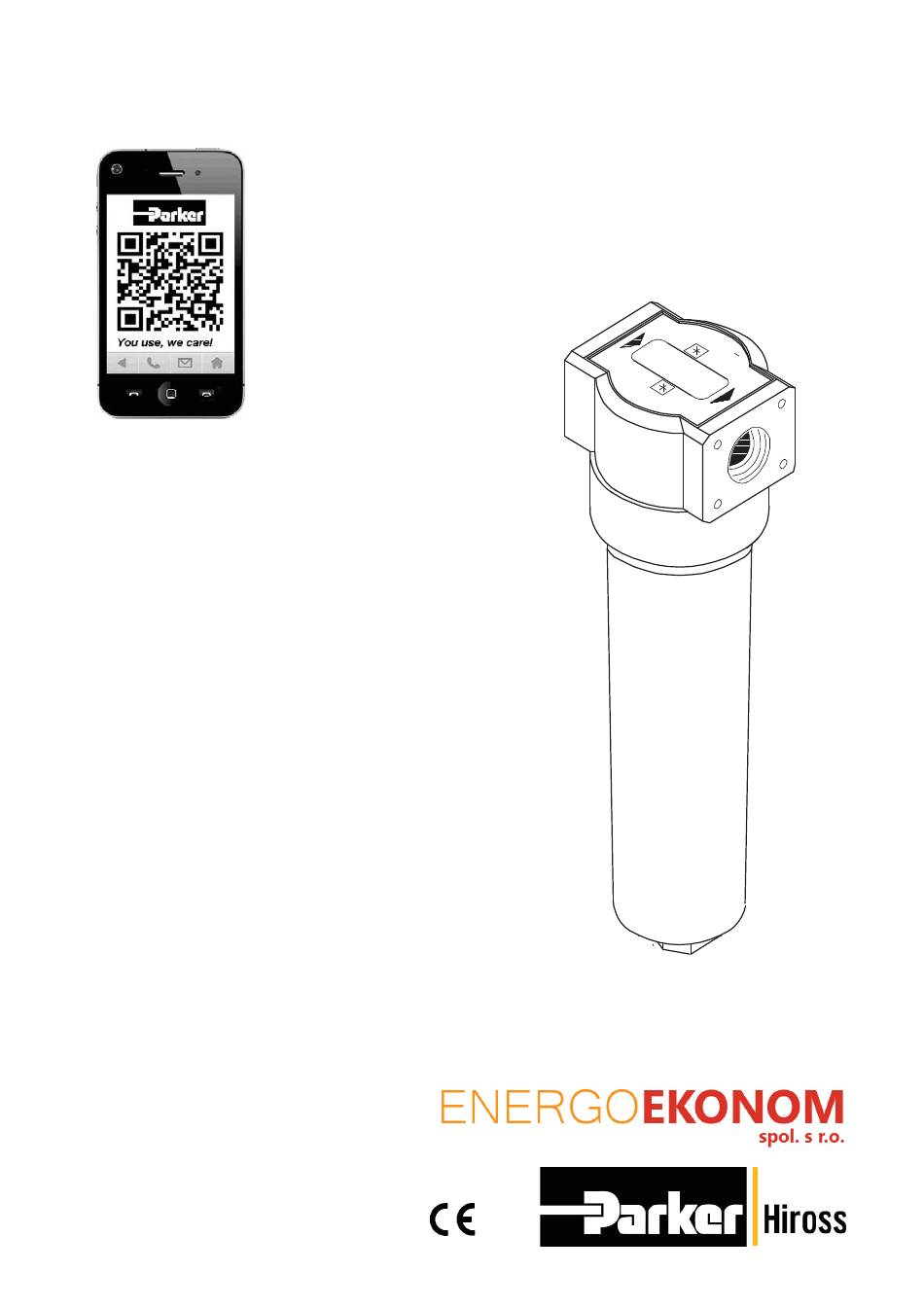

Hyperfi lter

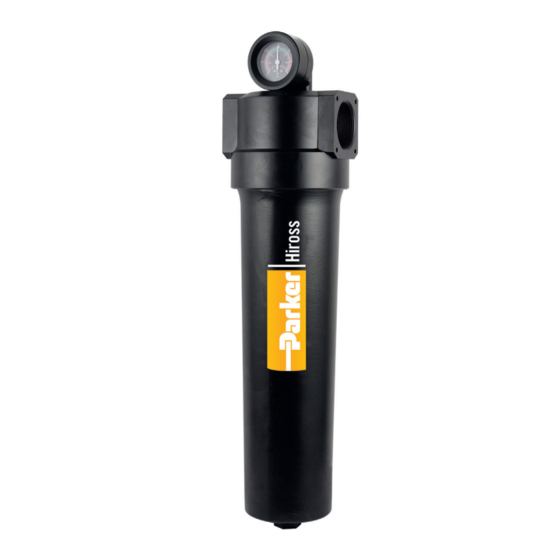

Compressed air fi lter
HFN 005-370
English 1 User manual
Česky 25 Návod na obsluhu
DATE: 24.03.2015 - Rev. 18
CODE: 398H272657
Energoekonom spol. s r.o., Wolkerova 433, 250 82 Úvaly, Tel.: +420 281 981 055, Fax: +420 281 981 932, info@energoekonom.cz, www.energoekonom.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYPERFIITER HFN005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parker Hiross HYPERFIITER HFN005

Summary of Contents for Parker Hiross HYPERFIITER HFN005

  • Page 1 Hyperfi lter Compressed air fi lter HFN 005-370 English 1 User manual Česky 25 Návod na obsluhu DATE: 24.03.2015 - Rev. 18 CODE: 398H272657 Energoekonom spol. s r.o., Wolkerova 433, 250 82 Úvaly, Tel.: +420 281 981 055, Fax: +420 281 981 932, info@energoekonom.cz, www.energoekonom.cz...

  • Page 2: Preliminary Operations

    1. Safety instructions Inspection As soon as you receive the unit, check its condition; if you notice Important: any damage inform the carrier immediately. Keep this manual with the unit throughout its entire service life; Carefully read this manual before carrying out any operation on 3.

  • Page 3: Operation And Maintenance

    i) If operating temperature exceeds 60°C, fi t any protective 5. Operation and maintenance guards necessary to prevent accidental contact and burns. Avoid subjecting the unit to thermal stress caused by repeated Install the Filter(s) as follows: fl uctuations in incoming fl uid temperature. a) If the fi lter is supplied as housing only, without the element N.B.:Always use original spares supplied by themanufacturer.

  • Page 4: Bezpečnostní Pokyny

    1. Bezpečnostní pokyny Kontrola Jakmile obdržíte odlučovač vody, zkontrolujte jeho stav; pokud si Doporučujeme: všimnete jakýchkoli poškození, neprodleně informujte dopravce, Tuto příručku uchovat po celou dobu životnosti jednotky. neinstalujte ani neuvádějte odlučovač vody do provozu a ihned Před jakýmkoli zákrokem na jednotce si příručku pozorně přečíst. jej vyměňte.
  • Page 5 popálení při náhodném dotyku. 5. Provoz a údržba Filtr/fi ltry instalujte následujícím způsobem: Nevystavujte jednotku namáhání z důvodu opakovaného kolísání a) Pokud se fi ltr dodává pouze s nádobou, bez vložky a odvaděče, teploty na vstupu kapalin. je pak nutné otevřít nádobu fi ltru a instalovat jak vložku, tak i Pozn.: Vždy používejte náhradní...
  • Page 6 Fig.1 Wall mounting kit Fig.2 Connection to compressed air piping air flow direction arrows Fig.3 Mounting in series INSTRUCTIONS: Attach each filter support (2) to the head (3) by use of the self--- tapping screws (1). Then mount the filter onto the wall. Tab.
  • Page 7 Fig.4 Overall dimensions HFN300--- 370 HFN005--- 205 ½” BSP ½” BSP Nominal air fl ow Max. air DIMENSIONS (mm) at 7 barg Weight Volume pressure Model (kg) connections (dm3) (m3/min) (cfm) (barg) HFN005 1/4” BSP 0.53 HFN010 3/8” BSP HFN018 1/2”...
  • Page 8 Fig.5 Assembled HFN005-72 and Part List number HFN005-370 Energoekonom spol. s r.o., Wolkerova 433, 250 82 Úvaly, Tel.: +420 281 981 055, Fax: +420 281 981 932, info@energoekonom.cz, www.energoekonom.cz...
  • Page 9 Fig. 6 Assembled HFN122-370 and Part List number HFN005-370 Energoekonom spol. s r.o., Wolkerova 433, 250 82 Úvaly, Tel.: +420 281 981 055, Fax: +420 281 981 932, info@energoekonom.cz, www.energoekonom.cz...
  • Page 10 Tab. 2 - Spare Parts List HFN005-72 (see Fig.5) Models, Codes Parts Description fi lter element model Q005 Q010 Q018 Q022 Q030 Q045 Q072 Grade Q (D) code Q005-ELZ Q010-ELZ Q022-ELZ Q030-ELZ Q045-ELZ Q072-ELZ fi lter element model P005 P010 P018 P022 P030...
  • Page 11 Tab. 2 - Spare Parts List HFN122-370 (see Fig.6) Models, Codes Parts Description fi lter element model Q135 Q175 Q205 Q300 Q370 Grade Q (D) code Q135-ELZ Q175-ELZ Q205-ELZ Q300-ELZ Q370-ELZ fi lter element model P135 P175 P205 P300 P370 1.(*) Grade P code...
  • Page 12 Parker Service Reminder ENGINEERING YOUR SUCCESS Energoekonom spol. s r.o., Wolkerova 433, 250 82 Úvaly, Tel.: +420 281 981 055, Fax: +420 281 981 932, info@energoekonom.cz, www.energoekonom.cz...
  • Page 13 Parker Hannifin Manufacturing S.r.l. Sede Legale: Via Privata Archimede, 1 20094 Corsico (MI) Italy Sede Operativa: Hiross Zander Filtration Division - Strada Zona Industriale, 4 - 35020 S. Angelo di Piove (PD) Italy tel. +39 049 971 2111; fax +39 049 970 1911 Declaration of conformity Declaración de conformidad Eu---vaatimustenmukaisuusvakuutus...
