Yakima HangOver 8881340 Manual

®

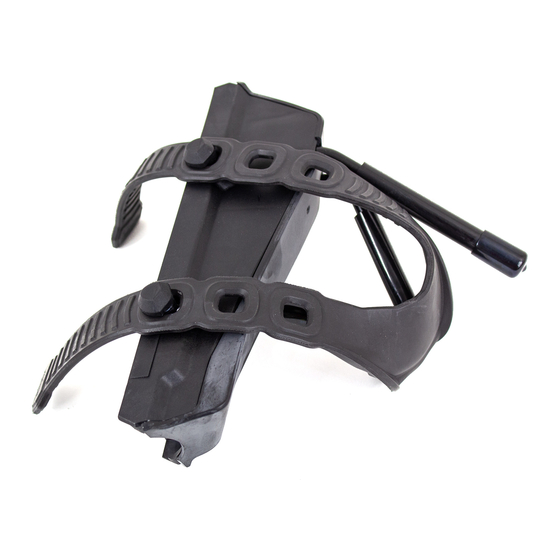

HangOver ™ Cradle
CONTENTS
FIRST GENERATION HARDWARE
M6 screw (2X) large M6 washer (1X)
vis M6 (2X) grande rondelle M6 (1X)
tornillo M6 (2X) arandela M6 grande (1X)
small M6 washer (1X)
cradle assembly (1X)
petite rondelle M6 (1X)
ensemble berceau (1X)
arandela M6 pequeña (1X)
cuna de apoyo armada(1X)
VISSERIE PREMIÈRE GÉNÉRATION MATERIAL DE FIJACIÓN DE LA PRIMERA GENERACIÓN
FOR REPLACING FIRST-GENERATION HANGOVER CRADLES
1
REMOVE THE PAD.
Unhook the ends of the
pad and remove it.
3
2
REPLACE THE PAD.
INSTALL M6 HARDWARE AS SHOWN
Reinstall the pad. Be sure the pad is fully
seated and hooked onto the cradle body.
Remove the M8 hardware.
Install the cradle according to
4
your HangOver instruction.
Install M6 hardware as shown
Instruction #1035968G-Page 1 of 2
