Summary of Contents for hinor POCA06-10L

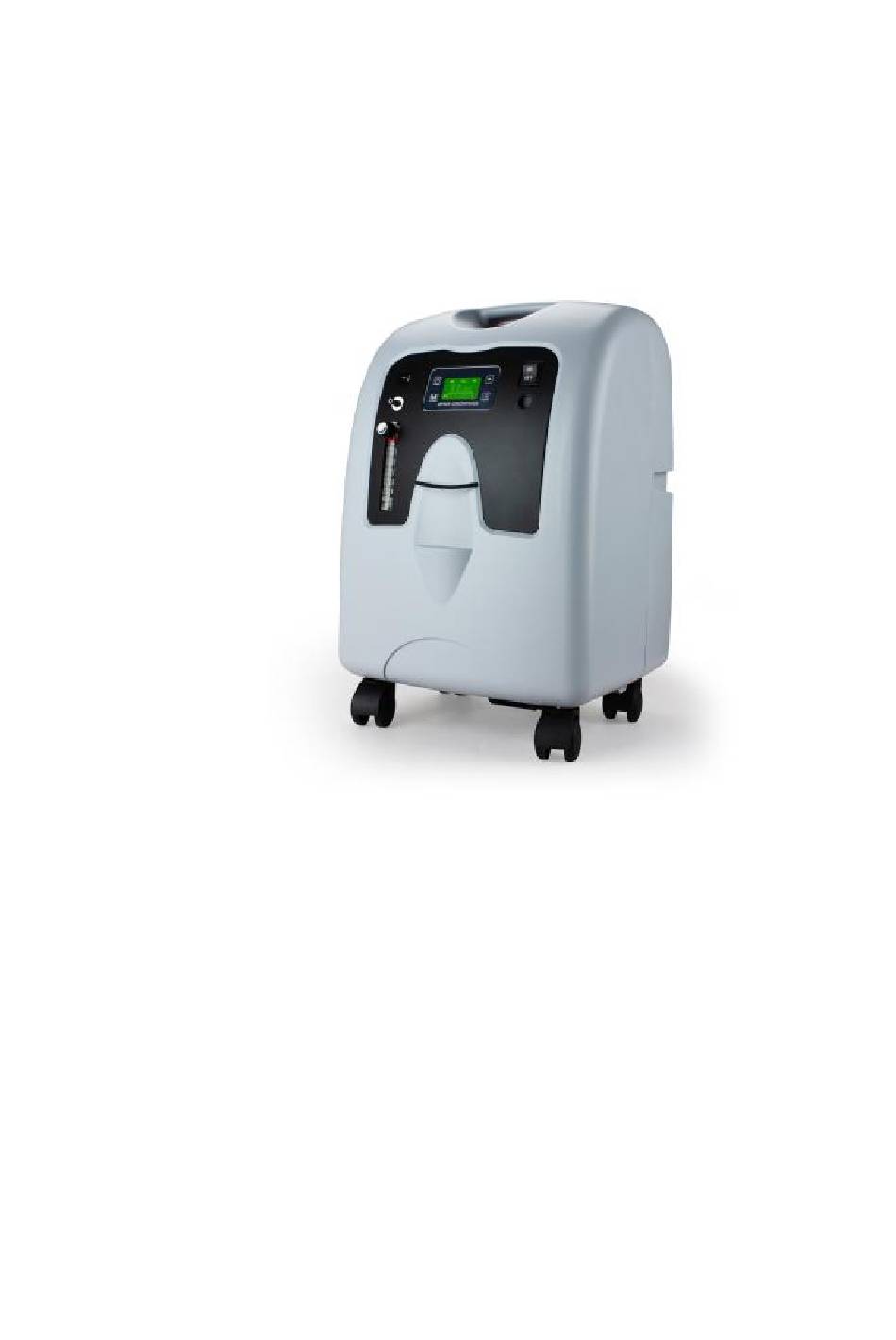

- Page 1 POCA06-10L Oxygen-Concentrator Page 1 of 16...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS ............................4 WHY YOUR PHYSICIAN PRESCRIBED SUPPLEMENTAL OXYGEN ..............4 HOW YOUR POCA06-10L OXYGEN CONCENTRATOR WORKS ................4 IMPORTANT PARTS OF YOUR OXYGEN CONCENTRATOR ................... 5 SETTING UP YOUR OXYGEN CONCENTRATOR ...................... 6 BEFORE OPERATING YOUR OXYGEN CONCENTRATOR ..................7 OPERATING YOUR POCA06-10L OXYGEN CONCENTRATOR ................ - Page 3 INDICATIONS FOR USE — The POCA06-10L Oxygen Concentrator is intended for use as an oxygen concentrator to provide supplemental low flow oxygen therapy in the home, nursing homes , patient care facilities, etc. WARNING Under certain circumstances, oxygen therapy can be hazardous.
-
Page 4: Danger
SAVE THESE INSTRUCTIONS. INTRODUCTION This instruction guide will acquaint you with the POCA06-10L oxygen concentrator. Make sure that you read and understand this guide before operating your unit .Important safeguards are indicated throughout this guide ;pay special attention to all safety information .Contact your HINOR provider if you have any questions. -
Page 5: Important Parts Of Your Oxygen Concentrator
IMPORTANT PARTS OF YOUR OXYGEN CONCENTRATOR Please take time to familiarize yourself with your POCA06-10L oxygen concentrator before operating. Before using this product, make sure you have the following items: ．... -
Page 6: Setting Up Your Oxygen Concentrator
FRONT View (Figure 1) REAR View (Figure 2) SETTING UP YOUR OXYGEN CONCENTRATOR 1. Position your unit near an electrical outlet in the room where you spend most of your time. DANGER Keep the oxygen concentrator at least 5 feet (1.6 m) from hot, sparking objects or naked sources of flame. -
Page 7: Before Operating Your Oxygen Concentrator
BEFORE OPERATING YOUR OXYGEN CONCENTRATOR 1. Before operating your unit always checks to be sure the air filter (located on the back of your unit) is clean .Proper cleaning of this filter is discussed in the Caring for Your Concentrator section on page 2. -
Page 8: Operating Your Poca06-10L Oxygen Concentrator
NOTE—If the Service Required light illuminates and the audible signal alarms but the unit is not operating, there is no power to the unit, Refer to the Minor Troubleshooting chart not page 8 and contact your HINOR provider if necessary. - Page 9 WARNING To avoid electric shock, do not remove the concentrator cabinet. The cabinet should only be removed by a qualified HINOR technician. Do not apply liquid directly to the cabinet or utilize any petroleum-based solvents or cleaning agents. Clean the concentrator exterior cabinet by using a damp cloth or sponge with a mild house-hold cleaner and wipe it dry.
- Page 10 Refer to the Minor Troubleshooting chart on page 8 and contact your HINOR Medical provider. The POCA06-10L Device is a device within your concentrator that monitors the oxygen produced by your unit. When the units is turned “ON,” all four light (Power, Low Oxygen, Normal Oxygen, and Service Required) on the front panel will illuminate briefly.
-
Page 11: Minor Troubleshooting
Set flow meter to prescribed flow rate. If the 5. Flow meter set too low. above remedies do not work, contact your HINOR provider C. Unit operates the power light is on when power Turn your unit “off”, Switch to your reserve HINOR switch is “on “, audible... -
Page 12: Specifications
SPECIFICATIONS Item Rating Delivery Rate (Lower delivery rates available for 2 to10 LPM low application) Outlet Pressure 12 psi ( 83 kpa ) Electrical Rating 220 V, 50 Hz, 3.4A (Max.) Oxygen Percentage 2~9 LPM 93%±2%,10 LPM 90%±3% Average oxygen concentration at 2 l/min: 94% Operating Environment Range Temperature 10℃... -
Page 13: Symbol
SYMBOL General warning, caution, risk of danger Please read the instructions carefully before operating the product. Type B applied part Class II equipment Manufacture’s serial number Authorized representative in the European community Date of manufacture Manufacture Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive) after over the valid term within 3 years, the machine should be treated on local law or regulation requirement. -
Page 14: Electromagnetic Immunity
Guidance and manufacturer’s declaration – electromagnetic immunity The POCA06-10L OXYGEN CONCENTRATOR is intended for use in the electromagnetic environment specified below. The customer or the user of the POCA06-10L OXYGEN CONCENTRATOR should assure that it is used in such an environment. - Page 15 If the measured field strength in the location in which the POCA06-10L OXYGEN CONCENTRATOR is used exceeds the applicable RF compliance level above, the POCA06-10L OXYGEN CONCENTRATOR should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the POCA06-10L OXYGEN CONCENTRATOR.
-
Page 16: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer: Hinor Medical Industry Company Limited ADDRESS: NO.222 SHENZHEN ROAD QINGDAO SHAN DONG, CHINA Product Designation: Oxygen Concentrator Catalog Number: POCA06-10L www.hinormedical.com EC authorized representation Page 16 of 16...
