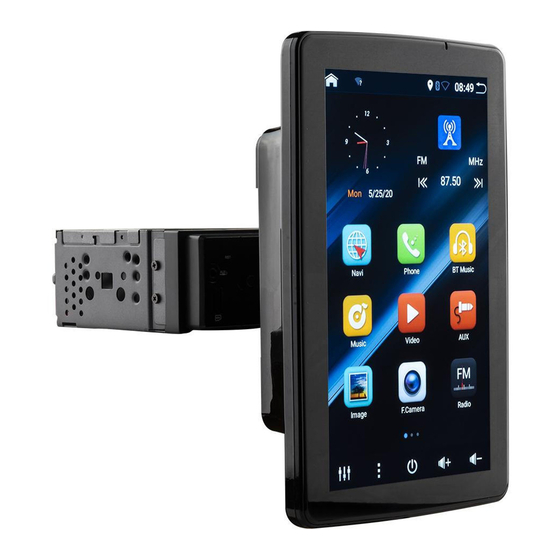

DDX9AD
9'' SINGLE DIN MODULAR MULTIMEDIA RECEIVER WITH
ANDROID Q OPERATING SYSTEM MIRROR-LINK FOR IOS & ANDROID
BT/AUX/GPS/USB/SD/AM/FM & ALL YOUR FAVORITE APPS
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDX9AD and is the answer not in the manual?

Questions and answers

Isaac chacon
April 3, 2025

What is the wire color for the reverse camera

1 comments:
Mr. Anderson
April 3, 2025

The wire color for the reverse camera (B-CAM) on the DS18 DDX9AD is yellow.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for DS18 DDX9AD

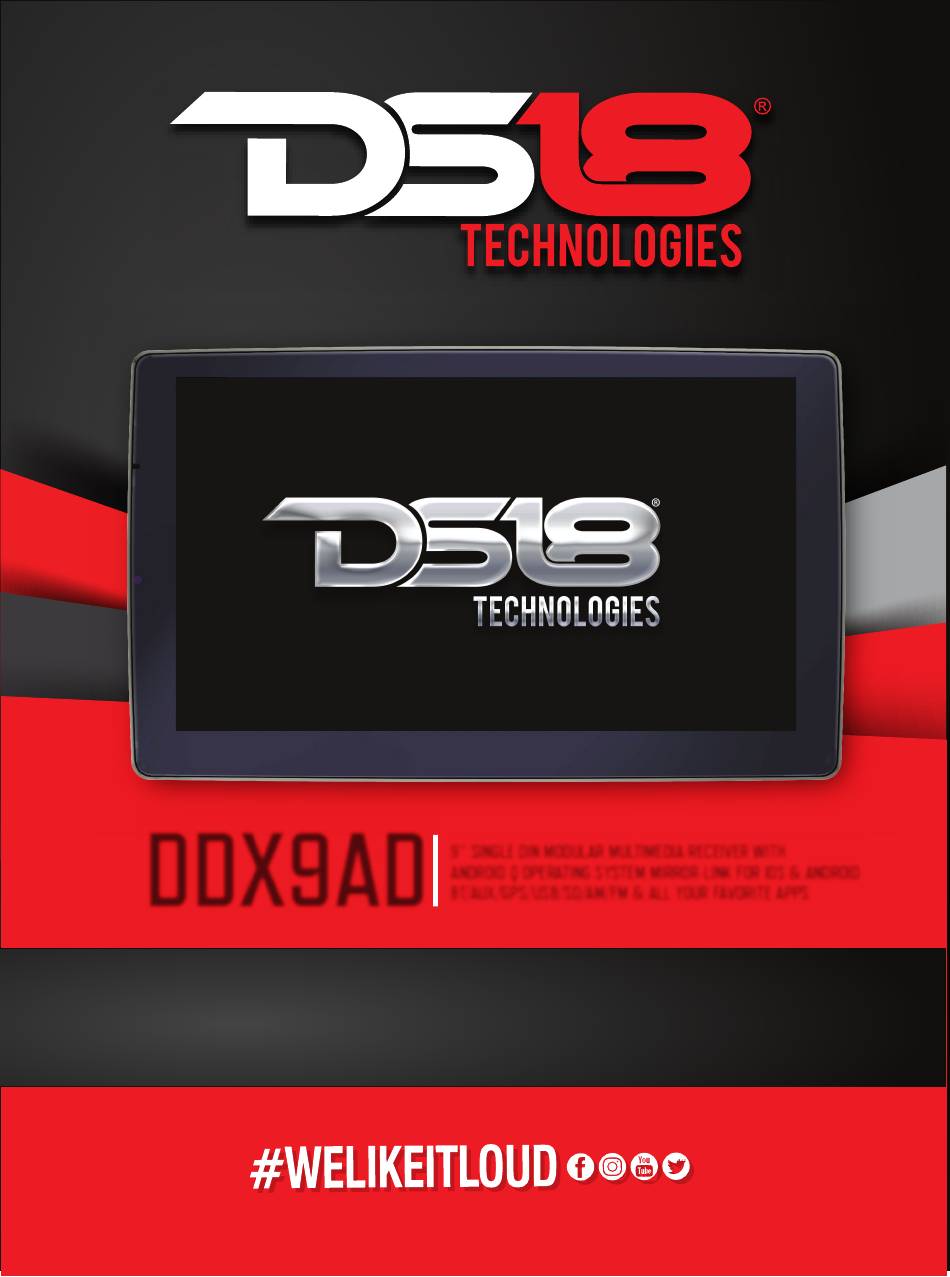

  • Page 1 DDX9AD 9'' SINGLE DIN MODULAR MULTIMEDIA RECEIVER WITH ANDROID Q OPERATING SYSTEM MIRROR-LINK FOR IOS & ANDROID BT/AUX/GPS/USB/SD/AM/FM & ALL YOUR FAVORITE APPS OWNER’S MANUAL...
  • Page 2 DDX9AD INSTRUCTIONS FOR USE Thank you for purchasing! Please read this manual carefully before use to ensure proper use. After reading the instructions, please keep them for future reference. WARNING To prevent damage and to use the system safely, please: - Prevent short circuits, do no place metal objects (coins or other metals) inside.
  • Page 3: Basic Operation

    BASIC OPERATION...
  • Page 4: Wiring Diagrams

    DDX9AD WIRING DIAGRAMS FM: 87.5~107.9MHz Do NOT use Grounded Speakers AM: 530~1710KHz 1. Red: Auxiliary right speaker input White: Auxiliary left speaker input KEY2 2. Yellow: Front camera input B-CAM 3. Black: MIC input jack 4. Red: Rear right speaker output White: Rear left speaker output 5.Yellow: Video input...
  • Page 5 OPERATING INSTRUCTIONS FOR MAIN INTERFACE Main Interface 1. Press the button , the interface will return to the defaul main interface. 2. Slide to left or right interface as you want. MOVE OR REMOVE THE ICONS 1. Uninstall program: long press the icon, Do you want to uninstall this app?
  • Page 6: Time And Date Settings

    DDX9AD TIME AND DATE SETTINGS 1. Press the Setup icon , selec Date & Time 2. As shown in the following two ways, choose one. 1. Touch the <Automatic date & time> and the <Automatic time zone> to remove the check.
  • Page 7: Steering Wheel Control Setup

    STEERING WHEEL CONTROL SETUP Click into key function learning: 1. Select the function you need. 2. Click your key on the steering wheel. 3. Repeat step 1 and 2 to set other Keys. 4. Press to end. REMARK If you need to reset the keys, click , then you can set again.
  • Page 8: Radio Basic Operation

    DDX9AD RADIO BASIC OPERATION operations & controls Select the FM1, FM2, FM3 AM1 or AM2 band. Frequency display. switches to previous frequency manually. switches to next frequency. Displays the preset channel list, hold the key (P1-P6) to store the current broadcast frequency.
  • Page 9: Hands-Free Call

    2. Cross the box of the device name. 3. Touch the cross, and it tips “Do you want to unpair the Device?” 4. Touch OK, the device deleted. Hands-Free Call DDX9AD 1) Phone Call Touch the , type the phone number, and click...
  • Page 10 DDX9AD 2) Phone book Touch the , to enter the BT phone book interface, and follow the directions to download the phone book. 3) Phone call record BT SETUP 1. Touch the BT to change the name. 2. Touch the Pin code to change the PIN code.
  • Page 11: Video Player

    BT SETUP Playing BT Audio Device Click , into BT music and play music of the device connected by BT Play / Pause MULTIMEDIA Video Player Music Player NOTE The Music Player and the Video player works when the USB or the SD card is connected.
  • Page 12 DDX9AD MIRROR-LINK NOTE For android mobile, the USB debugging must be turned on for the mirror link function. And the mirror link not support all android pgone, and only support the mobile that with the USB debugging. Android USB connect Find the developer options of the mobile >>...
  • Page 13 MIRROR-LINK...
  • Page 14 DDX9AD MIRROR-LINK iPhone WiFi connect Turn on the BT of the mobile >> connect to the BT to the unit >> BT connected >> Touch the easy connect >> Select the connecting method >> Connected DDX09A DDX09A...
  • Page 15 MIRROR-LINK NOTE For Wifi connect, must make sure the mobile and the unit is connected to the same wifi. Or make sure the unit is connected to the wifi-hotspot of the mobile. Android 6.0 system supports 4G dongle. The connection of 4g dongle device is consistent with 3G dongle.
  • Page 16: General Settings

    DDX9AD SET-UP General Settings Radio area: set >> general settings >> radio area Button sound: set >> general settings >> button sound >> On/Off Display Screen Brightness: settings >> display >> brightness >> adjust the brightness >> confirm...
  • Page 17: About Device

    SET-UP Backup and reset Back up the files and reset the system. Set up >> Backup and reset >> reset >> Restore the factory settings About Device 1. Settings >> About device 2. Enter the device interface, you can view the version information, host memory.
  • Page 18: Specifications

    DDX9AD SPECIFICATIONS General: 14.4V DC (10.8V to 15V operation) Rated power source: 14.4V DC (10.8V to 15V operation) 10 Amp Maximum Current Consumption: 10 Amp Chassis: 178mm x 50mm x 118mm Dimensions (W x H x D): Bezel frame: 170mm x 46mm x 10mm Screen Size: 233mm x 148mm x 35mm (overall) Weight: 1.66 Kg...
  • Page 19: Troubleshooting

    TROUBLE-SHOOTING Weight:1.5 Kg...
  • Page 20 DDX9AD 9'' SINGLE DIN MODULAR MULTIMEDIA RECEIVER WITH ANDROID Q OPERATING SYSTEM MIRROR-LINK FOR IOS & ANDROID BT/AUX/GPS/USB/SD/AM/FM & ALL YOUR FAVORITE APPS OWNER’S MANUAL...
