Summary of Contents for NUTRICHEF PKTWC36SL

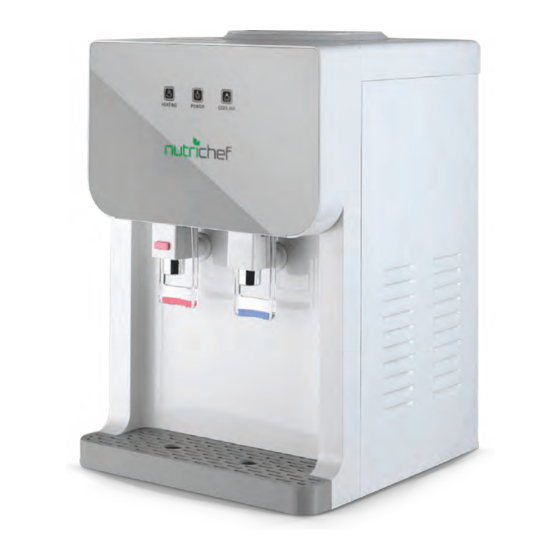

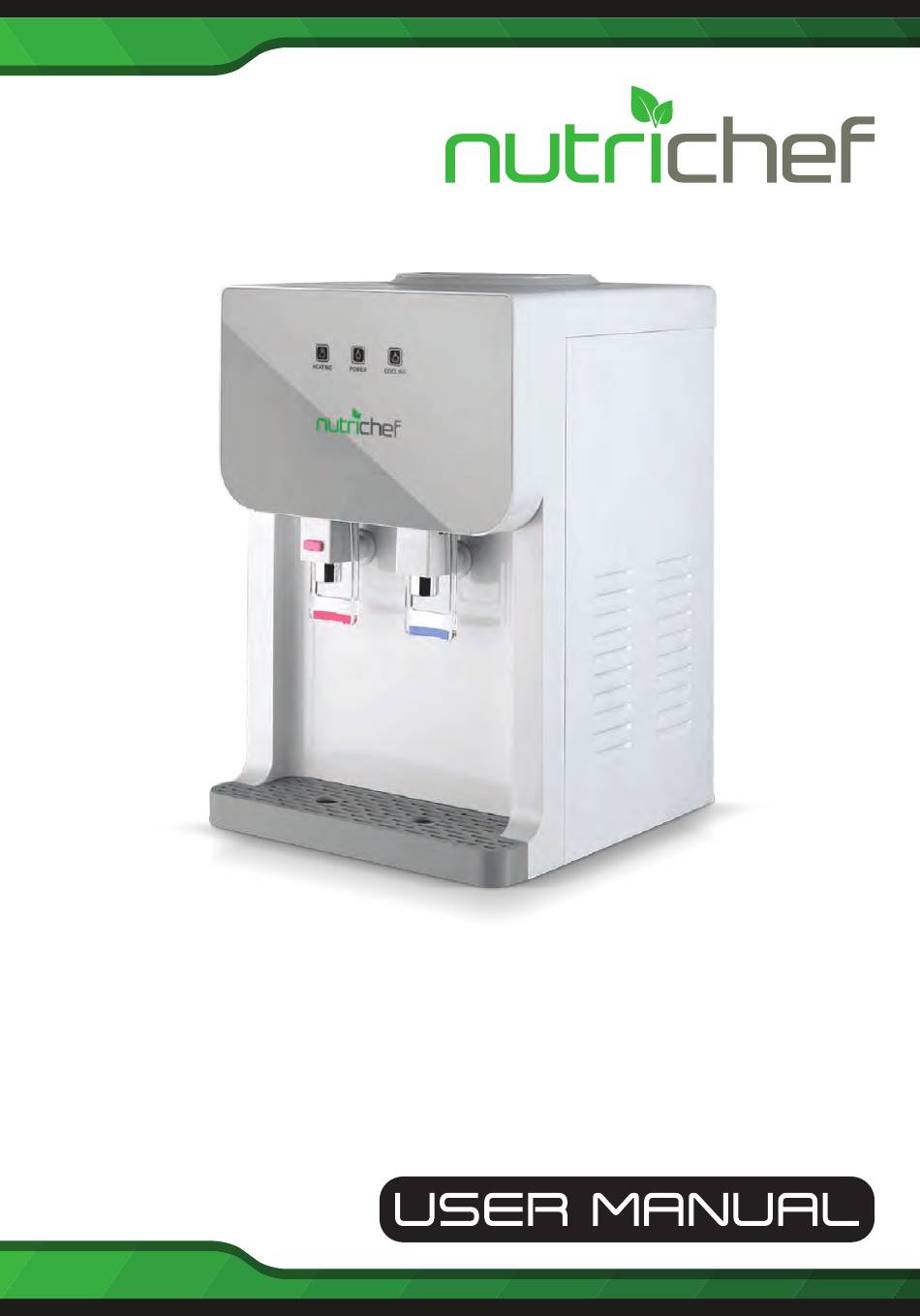

- Page 1 PKTWC36SL Top Loading Water Cooler Dispenser Hot & Cold Water Cooler Dispenser System, Thermoelectric Cooling...
-
Page 2: Parts Name
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE PARTS NAME Water Tank Support Indication Panel Cool water faucet Hot water faucet Drip tray Heating switch (red) Cooling switch (green) Power cord www.NutriChefKitchen.com www.NutriChefKitchen.com... -
Page 3: Circuit Diagram
CIRCUIT DIAGRAM cold switch hot switch refrigeration heating thermostat components self-reset green electric heating pipe overheat protector hand-reset Attentions 1. Put the unit on the stable at surface in the cool dry room, escape from direct sunshine. Keep the unit at least 20 cm away from the wall and no easy-burned articles near the dispenser. -
Page 4: Function Introduction
6. Use three-core outlet earthing plug and operate reliable switch for leakage protection. 7. If hot and cold water will not be used for a long time, please close the heating and cooling switch for power saving. 8. Do not clean the unit with gas oil or other organism solvent, do not wash the unit with water or spraying water. -
Page 5: Troubleshooting Guide
be in corresponding conditions (please see director lights description on the indication panel). 5. When the water is used out, please take out the tank vertically and exchange another tank of water. MALFUNCTION EXAMINATION The units are working well under the following conditions, the users may use them with no worries: 1. -
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE Remark: Cut o the power for following operation to avoid accident happening. 1. The washing and water drainage method as: Put the water tank into the support vertically, open the tap, ow out 1 litre water and then take down the water tank. Take out the water stopple on the back or bottom of the unit. - Page 7 FEATURES: • Child Safe, Innovative and Stylish Glass Panel • Time-Saving and Very Convenient To Use • Automatic Water Dispenser System • Simple Electric Plug-in Design • Ability to Dispense Both Hot & Cold Water • Simple & Hassle-Free Operation •...
- Page 8 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
