Summary of Contents for JAVAC JVC8000iS

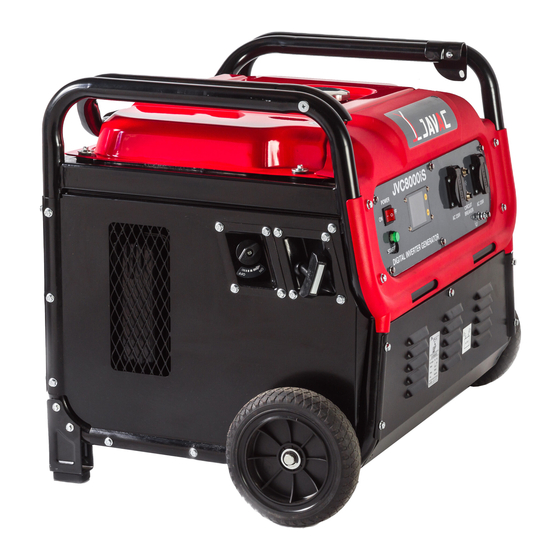

- Page 1 JVC8000iS JVC5500iS JVC3500iS Inverter Generator OWNER’S MANUAL JAVAC POWER TECHNOLOGY SA Please read and understand this manual completely before operating the machine.
-
Page 2: Safety Information
SAFETY INFORMATION This generator is not designed for on-board use. Do not use it while installed on the vehicle. Do not modify the generator or use it with its parts removed. Do not allow children to operate the generator. ... -
Page 3: Engine And Muffler May Be Hot
Always turn off the engine when refueling. Never refuel while smoking or in the vicinity of an open flame. Take care not to spill any fuel on the engine or muffler when refueling. If you swallow any fuel, inhale fuel vapor, or allow any to get in your eye(s), see your doctor immediately. -
Page 4: Electric Shock Prevention
touch the machine. Avoid placing any flammable materials near the exhaust outlet during operation. Keep the machine at least 1 m from buildings or other equipment, or the engine may overheat. Do not operate the engine with a dust cover or other objects covering it. ... - Page 5 Never touch the machine with wet hands or electrical shock will occur. Connect the ground lead of the machine to the ground (earth) terminal and connect the end to the ground electrode buried in the ground.
- Page 6 1. Fuel tank 2. Frame handle 3. Engine switch 4. Start switch 5. Display module 6. AC receptacle 7. Frame cover 8. Recoil starter 9. Fuel cock knob 10. Muffler...
-
Page 7: Engine Oil
PREPARATION Engine oil Assembly generator The generator has been Place the box on the ground. shipped without engine take out all the things besides the oil. Do not start the generator engine until you have Hold the generator frame, put the filled it with the sufficient generator out of the box carefully, engine oil. - Page 8 Fill the specified amount of the negative pole line recommended engine oil ， and Fuel then install and tighten the oil filler cap. Oil Quantity Fuel highly flammable JTE8000iS 1100ml poisonous. Check carefully before JTE5500iS 1100ml filling. JTE3500iS 600ml overfill fuel tank,...
-
Page 9: Generator Location
Grounding with a clean, dry, soft cloth, since fuel deteriorate painted surfaces. Failure to properly ground the Use only unleaded gasoline. The generator can result in electric shock. use of leaded gasoline will cause Connect of a length of heavy gauge severe damage to internal engine (12 AWG minimum) copper wire parts. - Page 10 NEVER operate the generator inside to allow for adequate cooling, any building, including garages, maintenance and servicing. basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle. Deadly levels of carbon monoxide can build up in these areas.
- Page 11 Put the generator on a flat, level surface. Turn the fuel cock knob lever to the“ON”position. Turn the engine switch to the“ON” position. Press the start switch, or pull the recoil starter to start the engine.
- Page 12 To prolong the life of the generator and attached devices, allow the CONNECTION AC engine to stabilize, and then add Start the engine, the generator has electrical loads one by one. no power output. “AC OFF” is red Never exceed on the display module.
-
Page 13: Maintenance And Storage
generator has no power output. The engine speeds to idle for several minutes. Turn the engine switch to the “OFF” position. Turn the fuel cock knob lever to the “OFF” position. MAINTENANCE AND STORAGE Engine Maintenance To prevent accidental starting,... -
Page 14: Spark Plugs
remove and ground spark plug wire Dispose of used oil at an approved before performing any service. waste management facility. Change oil when the engine is warm. Remove the frame cover. Remove the oil filler cap. Tilt the generator on its side and allow the oil to drain completely. -
Page 15: Air Filter
Reinstall the frame cover. the spark plug. Inspect the electrode on the plug. It must be clean. Make certain the spark plug gap is 0.6~0.7mm. Carefully thread the plug into the Air Filter engine. Remove the frame cover. ... -
Page 16: Maintenance Schedule
Squeeze thoroughly dry in a clean cloth. Saturate in clean engine oil. Squeeze in a clean, absorbent cloth to remove all excess oil. Place the filter in the assembly. Reattach the air filter cover. Reinstall the frame cover. Maintenance Schedule... - Page 17 Follow the service intervals indicated Every 8 hours or daily in the maintenance schedule. Clean around air intake and muffler First 20 hours Service the generator more frequently Change oil Every 50 hours or every season when operating in adverse conditions. Clean air filter Change oil if operating under heavy load or in hotenvironments...
-
Page 18: Generator Maintenance
Generator Maintenance The generator should be started at least once every 14 days and allowed Make certain that the generator is kept clean and stored properly. Only to run for at least 20 minutes. For operate the unit on a flat, level longer term storage, please follow these guidelines. - Page 19 Remove the frame cover. Drain all fuel completely from the fuel line and carburetor to prevent colloid build up. Change the engine oil. Remove the spark plug and pour about a tablespoon of oil into the cylinder. Crank the engine slowly to distribute the oil and lubricate the cylinder.
-
Page 20: Specifications
SPECIFICATIONS PARAMETER Model JVC8000iS JVC5500iS JVC3500iS Type Air cooled 4-stroke gasoline OHV Displacement (ml) Engine Oil Quantity (L) Spark Plug Type F7RTC Engine Spark Plug Gap (mm) 0.6-0.7 Speed Regulating System Electric control speed regulation system Choke Type Electric control... -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Cause Solution No fuel Add fuel Generator will not start Faulty spark plug Replace spark plug Fill oil to the proper level Low oil level Generator starts but Place generator on a flat, level surface runs roughly Spark plug wire loose Attach wire to spark plug Out of fuel Fill fuel tank...
