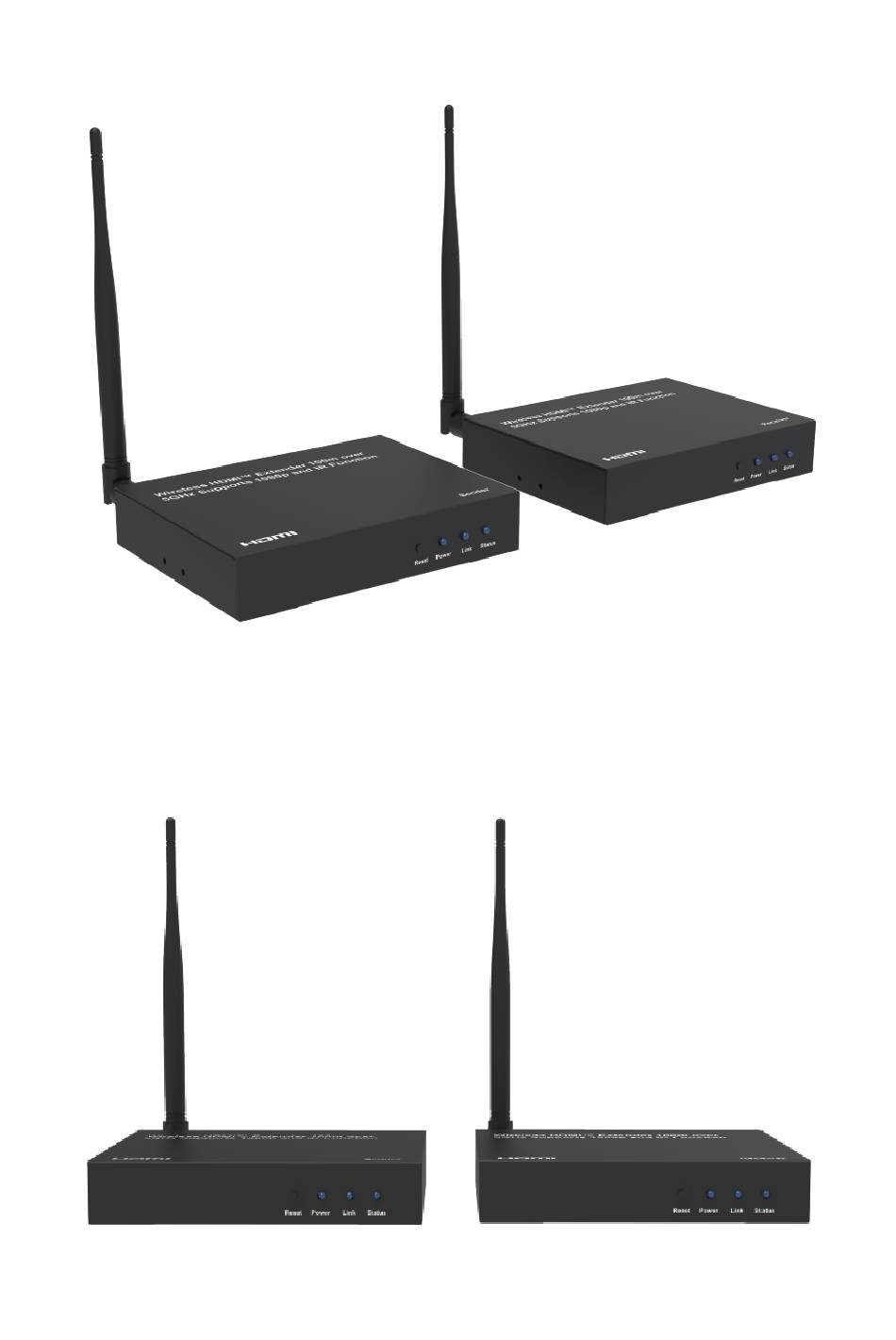

- Page 1 HDMI Extender Quick Start Guide What’s included Main Unit TX&RX...
- Page 2 Adapter x 2 Mounting Ears x4 IR TX Cable x 1, IR RX Cable x 1...
- Page 3 3.5mm Male to Male Cable Ports and Interfaces...
- Page 4 1. HDMI IN: Connect to Input Sources via HDMI Male Input Port 2. HDMI OUT: Connect to Output Devices via HDMI Male Output Port 3. DC 5V: DC 5V In 4. Loop out: HDMI Loop Out Port for Local View 5.

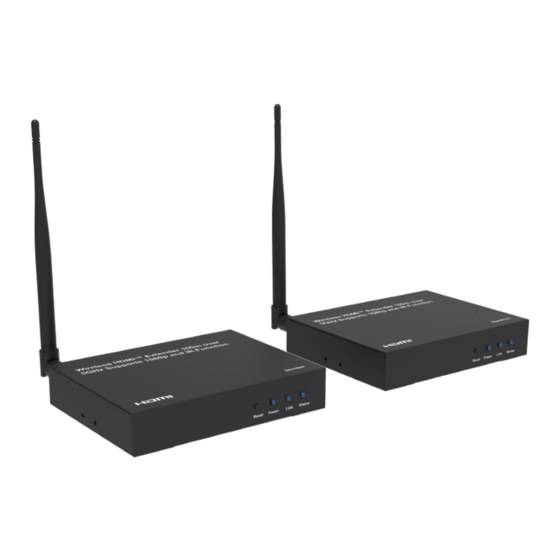

- Page 5 Introduction The Wireless HDMI Extender lets you extend HDMI audio/video signal up to 100meters (328 ™ ™ feet) via 5GHz band, with very low latency. The Wireless HDMI Extender includes both the ™ Transmiaer and Receiver, ideal for the point to point digital signal extension situaRons that require high quality HDMI video and some place which have the limitaRon to physical wire ™...
- Page 6 IR Frequency Range 20-60KHz Interlaced ResoluRons(50&60Hz) 480i,576i,1080i Progressive ResoluRons(50&60Hz) 480p,576p,720p,1080p Limited Warranty 1 Year Parts and Labor Operating Temperature 0℃ to 50℃ Storage Humidity 5% to 90% RH non-condensation Power Supply DC 5V Power Consumption (Max) TX: 3.5W, RX: 3W Extender Unit Cert FCC, CE, RoHS FCC, CE, RoHS...
- Page 7 No picture out after correct The distance can`t reach 100m When pass through a solid connection at different room due to the signal loss via pass wall (thickness under 30cm), through the solid walls. the signal will loss 30% of the o r i g i n a l s i g n a l a n d t h e distance will shorter than 70m;...
