Summary of Contents for StreetWise SWRC43

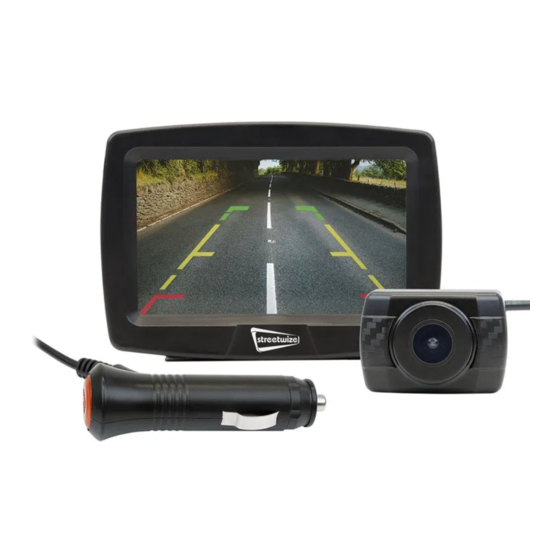

- Page 1 SWRC43 Wireless Reversing Aid Camera with 4.3 inch LCD Monitor Information For Use...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Intention for Use & Legal Disclaimer Product Elements How This Kit Works Installation Mounting the LCD Monitor Mounting the Number Plate Bracket Mounting the Butterfly Bracket Electrical Cable Installation Guide For Camera Operating Instructions How to Turn On/Off Paring the Camera and LCD Monitor Adjusting Brightness on Display... -
Page 3: Intention For Use & Legal Disclaimer
Thank you for purchasing this Wireless Reversing Aid Camera Kit from Streetwize. This product is intended for use as a reversing aid, to help drivers reverse vehicles into tight spots. It is suitable for use on vehicles such as hatchbacks, SUVs, small motorhomes and vans. -
Page 4: How This Kit Works
How This Kit Works This reversing aid kit comprises two main components, the LCD display monitor and the waterproof camera. The waterproof camera wirelessly transmits the live video footage directly to the LCD display. The LCD display is powered via your vehicle’s 12V socket and the waterproof camera is powered via your vehicle’s reversing lights. -
Page 5: Mounting The Lcd Monitor
Mounting the LCD Monitor Attach the suction mount to the back of the LCD monitor as shown in figure 3 and then attach to the desired location in your vehicle i.e. dashboard, windscreen etc. Ensure that the surface for mounting is both clean and dry before fixing the suction mount. -
Page 6: Mounting The Butterfly Bracket
Mounting the Butterfly bracket Please note: The waterproof camera is already attached to the license plate mounting bracket. To replace this with the butterfly bracket, simply remove the two screws behind the camera which attaches to the licence plate bracket. Then replace it with the butterfly bracket and attach it to the camera using the two screws that were used for the license plate bracket. -
Page 7: Operating Instructions
Operating Instructions The LCD display has three buttons on the back as shown in Figure 6 below. Fig. 6 How to Turn On/Off To turn on the reversing aid kit, first ensure the LCD display is connected to your 12V socket AND make sure your vehicle is switched on. -
Page 8: Screen Orientation
Screen Orientation Press the K2 button repeatedly to adjust the brightness of the display. When the brightness reaches its max, the brightness will reset to its lowest setting (see Figure 8). Fig. 9 Reversing Guidelines Reversing Guidelines You can toggle the reversing guidelines to appear on the screen by pressing K3. Figure 10 You can toggle the reversing guidelines to appear on the screen by pressing K3. -
Page 9: Cleaning & Maintenance
Cleaning & Maintenance Camera • If the lens of the camera becomes obstructed with dirt, rain or snow, rinse with water and wipe with a soft, dry cloth. • To clean the camera, wipe with a soft, clean cloth and a mild cleaner, then dry with a soft cloth. -
Page 10: Technical Support
Technical Support If you require any technical support, please contact us on: support@streetwizeaccessories.com and provide product name and supplier code (see Technical Specifications) along with the technical query and proof of purchase. Spare Parts Should you require any replacement parts and/or spare parts for your product, please contact us on support@streetwizeaccessories.com and provide the product name, supplier code (see Technical Specifications) and model along... -
Page 11: Technical Specification
Technical Specifications Product Product Name Streetwize Wireless Reversing Aid Camera Kit SWRC43 Supplier Code Camera Specification Streetwize Wireless Reversing Aid Camera Kit Sensor 1280 x 720 Effective Pixels Pixel Size 3.0 x 3.0 um 0 (IR ON)/5 (IR OFF) Lux... -
Page 12: Lcd Monitor Specification
LCD Monitor Specification 25 (max) fps Video Frame Transmission Resolution 640 x 480 pixels LCD Monitor Specification 480 x 272 pixels Screen Resolution 25 (max) fps Video Frame 2≥200 Screen Brightness CD/M 640 x 480 pixels Transmission Resolution Screen size 4.3 inch TFT 480 x 272 pixels Screen Resolution...
