Frigidaire FFC13C3AW Factory Parts Catalog
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Freezer
  5. FFC13C3AW
  6. Factory parts catalog

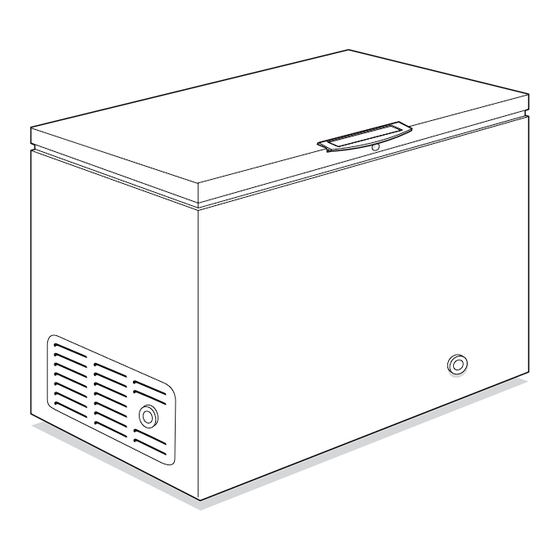

Frigidaire FFC13C3AW Factory Parts Catalog

Frigidaire FFC13C3AW Factory Parts Catalog

134a series
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
PRODUCT NO.
BASE MODEL NO.
FFC13C3AW2
FFC13C3AW
FFC15C3AW3
FFC15C3AW
MARKET
North America
WIRING DIAGRAM - # 216908200
OWNER'S GUIDE - # 216802800
SERVICE DATA SHEET - # 216908200
ELECTROLUX HOME PRODUCTS, INC.
P.O BOX 212378, AUGUSTA , GA 30917
FACTORY PARTS CATALOG
SERIES
COLOR
134A
white
134A
white
Publication No.
5995387569
030318
-EN/SERVICE /MLR
365
FREEZER
VOLTS
115
115
CHEST FREEZER
Model numbers:
FFC13C3AW
FFC15C3AW
©2003 Electrolux Home Products, Inc.
All rights reserved

Advertisement

loading

Related Manuals for Frigidaire FFC13C3AW

Summary of Contents for Frigidaire FFC13C3AW

  • Page 1 PRODUCT NO. BASE MODEL NO. FFC13C3AW2 FFC13C3AW FFC15C3AW3 FFC15C3AW MARKET North America WIRING DIAGRAM - # 216908200 OWNER’S GUIDE - # 216802800 SERVICE DATA SHEET - # 216908200 ELECTROLUX HOME PRODUCTS, INC. P.O BOX 212378, AUGUSTA , GA 30917 FACTORY PARTS CATALOG...
  • Page 2 Publication No FFC13C3AW2, FFC15C3AW3 5995387569 DOOR 09/02...
  • Page 3 A = FFC13C3A (FFC13C3AW2) B = FFC15C3A (FFC15C3AW3) POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FFC13C3AW2, FFC15C3AW3 DOOR PART NO DESCRIPTION 216481101 Gasket-door,white 216481201 Gasket-door,white 5303925107 Lock Assy 216702900 Key,lock 216056904 Panel-inner lid,white 216057804 Panel-inner lid,white 216141101 Plug button,white 216129821 Lid,white...
  • Page 4 Publication No FFC13C3AW2, FFC15C3AW3 5995387569 CABINET 09/02...
  • Page 5 A = FFC13C3A (FFC13C3AW2) B = FFC15C3A (FFC15C3AW3) POS. NO 21 # # = Fast-moving Parts * = Non-Illustrated Parts FFC13C3AW2, FFC15C3AW3 CABINET PART NO DESCRIPTION 5303208488 Latch,lid catch 216502600 Plug,drain ,interior 216073905 Plug-drain,exterior 216110900 Breaker 216111000 Breaker 216111500 Breaker,lock side 216111600 Breaker,lock side 216110800...
  • Page 6 Publication No FFC13C3AW2, FFC15C3AW3 5995387569 SYSTEM 09/02...
  • Page 7 A = FFC13C3A (FFC13C3AW2) B = FFC15C3A (FFC15C3AW3) POS. NO 29 # 31 # # = Fast-moving Parts * = Non-Illustrated Parts FFC13C3AW2, FFC15C3AW3 SYSTEM PART NO DESCRIPTION 5303925238 Condenser 216634500 Drier-filter 216906200 Harness-main 216056400 Clip,compressor mtg ,SPRING 5308002681 Grommet,compressor 5303212615 Support,compressor 216888100...
