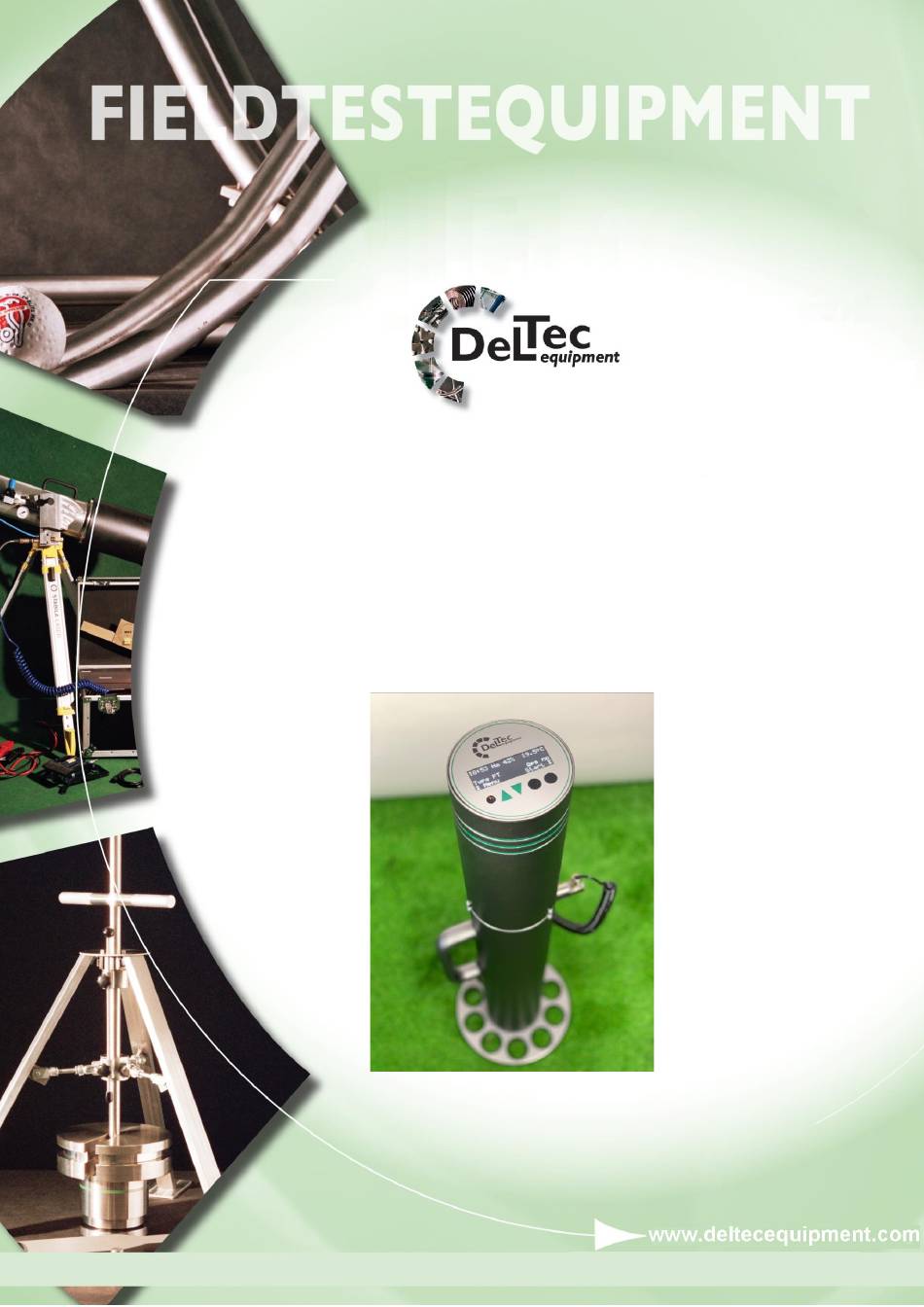

- Page 1 Manual Field Tester FieldTester Manual Version January 2021...
-
Page 2: Table Of Contents
Contents Introduction ..........................3 iPod Touch ..........................5 FieldTester ..........................9 Deltec Software ........................14 Troubleshooting ........................18 FieldTester Manual Version January 2021... -
Page 3: Introduction
Results that are in line with the initial reference readings indicate a properly working Field Tester. In case you find deviations bigger than the tolerance of a few %-points or millimetres, or in case of other doubts, contact Deltec Equipment. Connect the sensor cable (that comes from the sensor in the drop weight) to the plug shown in the picture. - Page 4 Input 100-240 VAC 50/60 Hz max 0.9A 10 – 20 cell 0.9A Gently pull the drop weight up against the magnet, by means of the handle. Please watch the cable and make sure that it does not enter the shaft. FieldTester Manual Version January 2021...
-
Page 5: Ipod Touch
After pressing the round black button on the iPod, the following screen appears Go to the settings icon (picture) and press this. The following settings menu appears: Press the arrow to the right on the Wi-Fi rule. FieldTester Manual Version January 2021... - Page 6 “Home” menu. Step 2: In the “Home” menu, select the “Safari” button as shown in the picture and press it. Choose to press the shown Deltec application url: https://app.deltecequipment.com Use the indicated button, press it to Add to Home screen.
- Page 7 Press “Add to Home Screen”. The url is now showing in the “Home” screen. Press the “Deltec” button Insert your e-mail address and password (received with the equipment). The following screen appears. FieldTester Manual Version January 2021...
- Page 8 Step 4: Connect the web application with the equipment. Please turn on the FieldTester (see Paragraph 3). (about 30 seconds.) Go to the settings icon (picture) and press this. The following settings menu appears: Press the arrow to the right on the Wi-Fi rule.
-
Page 9: Fieldtester
When the FieldTester is switched on and the iPod is connected to the devices own WIFI network the following screen will be shown, the available device will turn green. You will be able to choose the available device(s). FieldTester Start up the FieldTester:... - Page 10 When the FieldTester shows a voltage of approximately 13.6V this means that it is fully charged. When the FieldTester shows a voltage of 11.9V this means that it is time to re-charge. PS: ONLY USE THE SUPPLIED CHARGER!!! LED Indications Amber (Red/Green): Starting up –...
- Page 11 When using this FieldTester for the first time it could take about 5-10 minutes for the device to find a GPS fix with a satellite. Measurement Storage The Fieldtester can store up to 100 measurements. When going over 100 measurements the 1 measurement will be deleted and number 101 will enter the list.
- Page 12 Press Button UP to select 3A, press Button Down to select 2A (in this case). When the right choice flashes, press the Right Round button (Enter) to select or accept and press the Left Round button to return to the former menu. FieldTester Manual Version January 2021...
- Page 13 Long: GPS longitude and latitude long: GPS longitude lat: GPS latitude dt: Time/Year/Month/Day N.B.: WHEN STARTING A MEASUREMENT DIRECTLY WITH THE FIELDTESTER, THE RESULTS WILL NOT SHOW UP IN THE SOFTWARE APP IN THE IPOD! FieldTester Manual Version January 2021...
-
Page 14: Deltec Software
Deltec Software How to use the Deltec Software Start a measurement with the wireless app Select the available device Start menu explanation: 1: Start new test. 2: Test sensors. 3: View reports. 4: Setting of sensors Operation status 1: Client account and FT number... - Page 15 3: Velocity m/s 4: Displacement in mm Calculated results: 1 FR Force reduction/Shock absorption % 2 VD Vertical deformation in mm. 3 ER Energy restitution in % 4. Clegg Screen layout 1: Laboratory mode 2: Field mode FieldTester Manual Version January 2021...
- Page 16 1: Finalize / Stop test 2: Red button: Stop testing without report 3: View report View test rapport 1: Continue testing 2: Delete report Configurations setting: 1: Settings Accelerometer 2: Sensitivity of Accelerometer 3: Gain Correction factor FieldTester Manual Version January 2021...
- Page 17 3A setting: 1 Drop mass 2 Gravity 3 Reference force conform standard. 4 Spring constant Software setting: 1 Butterworth filter setting 2 Butterworth cut off frequency 3 Sample rate 4 Offset (measure) time FieldTester Manual Version January 2021...
-
Page 18: Troubleshooting
When pushing the FieldTester buttons too quickly the controller might possibly freeze for his own safety. After 2-3 seconds the FieldTester will be redirected to the main-menu. Green Icons no longer visible? Connect your Wi-Fi to an active internet or 3/4G connection;... - Page 19 White screen when starting up the web application? Delete the Deltec WebApp from the iPod and reinstall the Deltec Web App again. Other troubles or failures? Please call or e-mail Deltec Equipment B.V. +31268200290 info@deltecequipment.com FieldTester Manual Version January 2021...
