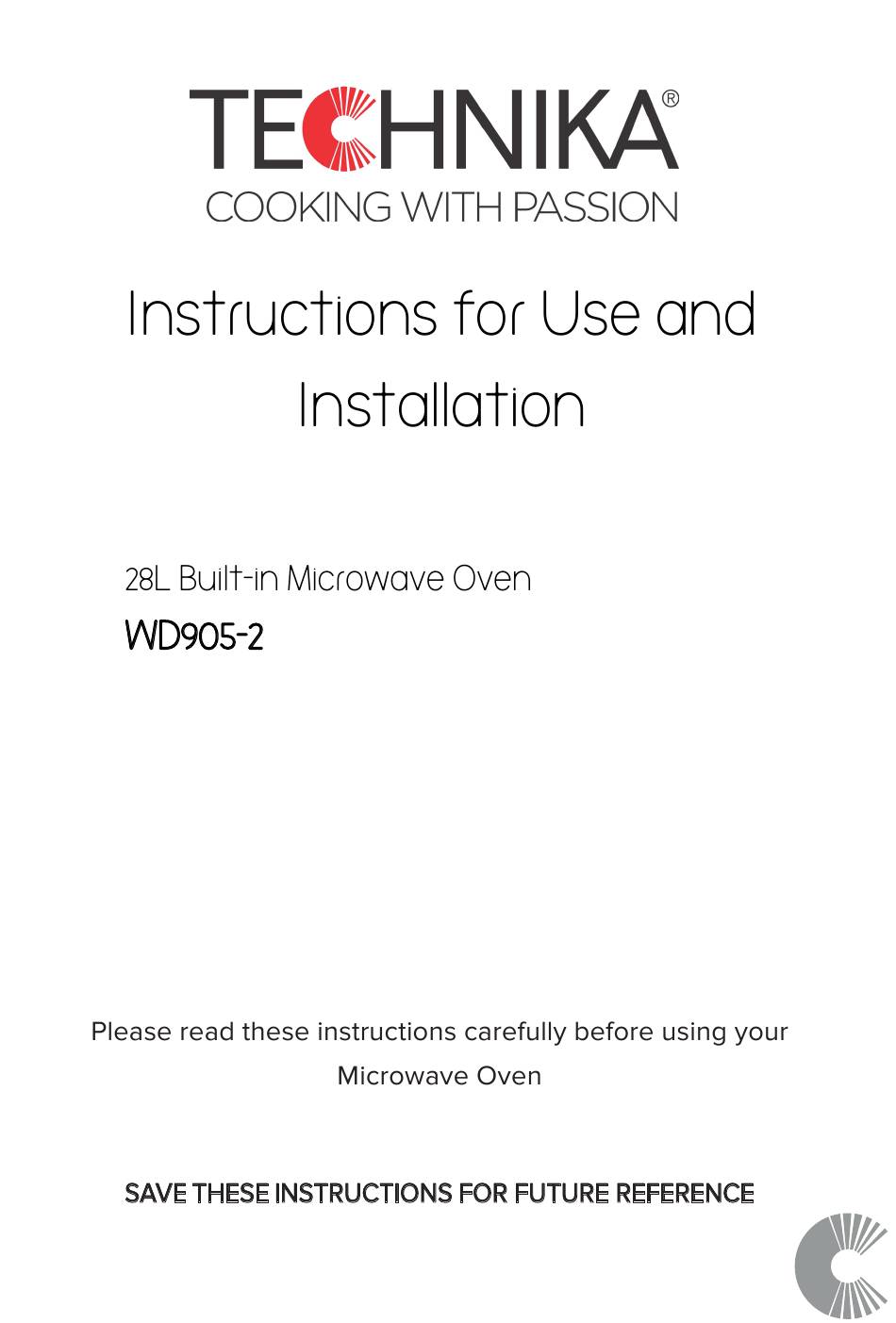

Summary of Contents for Technika WD905-2
-
Page 3: Table Of Contents
Contents Specifications............2 Important warnings..........3 Materials you can use.......... 6 Materials to be avoided ........7 Setting up your oven........... 7 Installation and connection......... 8 Product dimensions..........9 Cabinet dimensions..........10 Operation instructions......... 13 Troubleshooting........... 17 Warranty.............. 1 . 8... -
Page 4: Specifications
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Sp ec i f i c at i o n s Model: WD905-2 Rated Voltage: 230-2 40V~ 50Hz Rated Input Power(Microwave):... -
Page 5: Important Warnings
IMPORTA NT SA FETY INSTRUCTIONS WA RNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must 12. - Page 6 23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliances are not intended to be operated by means of an external timer or separate remote-control system. 25. Accessible parts may become hot during use. Young children should be kept away. 26.Steam cleaner is not to be used.
- Page 7 To Reduce the Risk of Injury to Persons Grounding Installation DA NGER 2)The extension cord must be a grounding- type 3-wire cord. Electric Shock Hazard 3)The long cord should be arranged so that Touching some of the interna components it will not drape over the counter top or can cause serious personal injury or death.
-
Page 8: Materials You Can Use
UTENSIL S See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below. -
Page 9: Materials To Be Avoided
Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing. -
Page 10: Installation And Connection
Turntable Installation a. Never place the glass tray upside down. The glass Hub (underside) tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray c. All food and containers of food are always placed on the glass tray for cooking. -
Page 11: Product Dimensions
Installation Instructions Please Read the Manual Carefully Before Installation Please note Electricalconnection The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. -
Page 12: Cabinet Dimensions
Installation Instructions Please Read the Manual Carefully Before Installation Cabinet dimensions Ventilation: Option 2 Ventilation: Option 1 140mm x cabinet width vented Cutout 45mm x 500mm top rear of down into kick panel space cabinet 6(min) Ventilation: Option 3 (for tower installation) 45mm x cabinet width vented to top of cabinetry / into roof cavity. - Page 13 B.Pre p are the cai b inet 1. Read the instruction on the BOTTOM CABINET TEMPLATE , put the template on the bottom plane of cabinet. CENTER LINE FRONT EDGE 2. Make the marks on the bottom plane of cabinet according to marks"a" of of the template 3.
- Page 14 C .Install the oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. bracket 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.
-
Page 15: Operation Instructions
Operation Instructions 1. Clock Setting When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once. 1) Press " " twice to select clock function, the hour figures will flash. 2) Turn " " to adjust the hour figures, the input time should be within 0--23. 3) Press "... - Page 16 4. Quick Start 1) In waiting state, Press " " to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2) In microwave cooking or time defrost state, each press of "...
- Page 17 8. Auto Menu 1) Turn " " right to choose the menu, and "A-1" to "A-8" will display, which means pizza,meat, vegetable,pasta, potato, fish,beverage and popcorn. 2) Press " " to confirm. 3) Turn " " to choose the default weight as the menu chart. 4) Press "...
- Page 18 9. Multi-section cooking At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following: 1) Press "...
-
Page 19: Troubleshooting
Trouble shooting For technical support contact Glen Dimplex Customer Care It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. -
Page 20: Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Technika products used for personal, domestic or household purposes, a period of 3 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 21 c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement; d) You are unable to provide us with reasonable proof of purchase for the product; e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or f) the product was not purchased in Australia / New Zealand as a brand-new product.
- Page 22 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 23 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ...
- Page 24 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
