Summary of Contents for EVA Stampaggi IPCN11,5

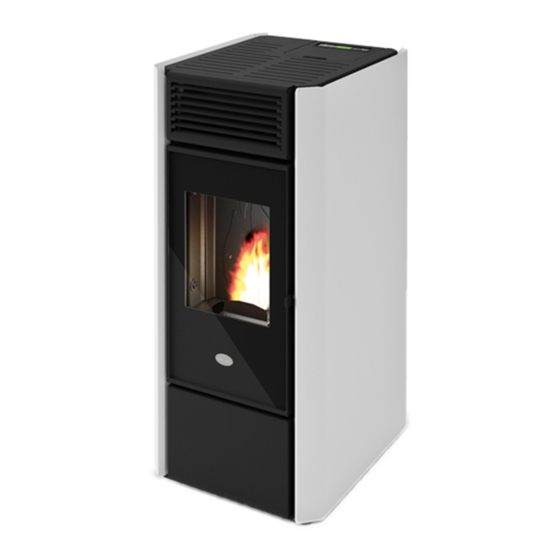

- Page 1 INSTRUCTION MANUAL PELLET INSERT 2 DUCT INSERT...
- Page 2 IMPORTANT: PLEASE READ 1. Eva Stampaggi S.r.l. assumes no responsibility for injury to persons and/or damage to property or for the malfunction of the stove resulting from non-compliance with the provisions of this Instruction Manual 2. The guarantee will remain valid for 1 year for professional operators and 2 years for consumers.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 01. PRODUCT SAFETY ............................4 02. GENERAL SAFETY PRECAUTIONS ......................... 4 03. PRODUCT DESCRIPTION ..........................6 04. MINIMUM INSTALLATION REQUIREMENTS ....................7 05. FLUE PIPE ................................8 06. INSTALLATION WARNINGS ..........................10 07. INSTALLATION ..............................12 08. PRODUCT USE ..............................14 09. -
Page 4: Product Safety
Read this manual carefully before use or any maintenance operation. Eva Stampaggi aims to provide as much information as possible to ensure safer use and to avoid damage to persons, property or parts of the stove itself. Each stove is subjected to internal testing before shipment and as such residues inside the appliance may be found. - Page 5 • Use only original spare parts recommended by the manufacturer. Make sure that the stove is transported in compliance with safety regulations. Avoid any improper transfers or knocks that may damage the ceramics or the • structure. • The metal structure is coated using high temperature paints. When using the appliance for the first few times, unpleasant odours may be given off due to the paint of the metal parts that is drying: this is in no way dangerous and in such case, simply ventilate the premises.
-
Page 6: Product Description
Potenza elettrica assorbita Rated voltage Tensione nominale Rated frequency Frequenza nominale ENERGY EFFICIENCY CLASS Energy Efficiency Class ELECTRICAL CONSUMPTION IPCN11,5 Electrical consumption at nominal power 188 W Electrical consumption at reduced power 83 W Electrical consumption in Stand-By 2.6 W... -
Page 7: Minimum Installation Requirements
Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by non-compliance with the requirements for installation of the stove and/or tampering with it. -
Page 8: Flue Pipe
05. FLUE PIPE IPCN11,5 Chimney flue draught 11 Pa Fume temperature 180 °C Flue gas mass flow 9.1 g/s IMPORTANT: THE LENGTH OF THE FUME DUCT PIPE MUST HAVE A DIAMETER EQUAL TO OR GREATER THAN THAT SPECIFIED FOR EACH APPLIANCE. - Page 9 05.1 CHIMNEY COWL A properly installed chimney cowl ensures optimum stove operation. The anti-downdraught chimney cowl consists of a number of components whose outlet section sum always doubles the flue pipe section. Make sure the chimney cowl is at least 150cm above the roof rise so that it is fully exposed to the wind. The chimney cowls must: •...
-
Page 10: Installation Warnings
06. INSTALLATION WARNINGS By using coaxial tubes, the air will be pre-warmed contributing to improved combustion and lower emissions into the atmosphere. Before installing, the following indications must be met: Select the position where the stove is to be installed and: •... - Page 11 IPCN11,5 REAR WALL B = SIDE WALL A = THICKNESS INSULATING MATERIAL C, E = FLOOR D = FRONT R = 1000 It is in any case advisable, as well as respecting minimum distances, to install the fireproof heat-resistant insulating panels (mineral wool, aerated concrete, etc.).
-
Page 12: Installation
07. INSTALLATION 07.1 HANDLING AND UNPACKING When transporting do not position the product horizontally. Unloading of the product must be performed using lifting means that are suitable and that have characteristics that are consistent with the weight of the stove. The operator must make sure that during offloading and lifting of the stove there are no persons or objects nearby. - Page 13 07.7 PROCEDURE FOR CORRECT PRODUCT INSTALLATION English - 13...
-
Page 14: Product Use
07.8 IGNITION The first procedure to be carried out is to connect the plug of the product to the mains; fill the pellet hopper (pay special care not to empty the entire bag at once, but to carry out the procedure slowly so as not to introduce any pellet powder present in the bag into the hopper). If applicable, be careful not to damage the pellet hopper door gasket and keep the support surface of the hopper clean. - Page 15 08.2 EMERGENCY CONSOLE The emergency console is used when the remote control does not work or in case of loss of the latter. Button P1 – ON/OF: Keeping this button pressed, the stove will switch on or off according to the last settings recorded by the remote control. Button P2 –...
- Page 16 Submenu – DAILY CHRONO: Once the "DAILY CHRONO" menu has been selected, the daily chrono is enabled using the P1 and P2 buttons. With the P4 button, the possible items can be scrolled through, including: switch-on time, switch-off time, set stove heat output, room temperature. It is possible to set two operating ranges. The OFF setting tells the clock to ignore the command.
- Page 17 Room temperature reaches the set value (SET temperature) When the set room temperature value is reached, the stove heat output is automatically set to the minimum value. During this phase the display shows the message "MODULAT-". If room temperature falls below the set value (Set temperature value), the stove will go back to the "WORK" mode and to the previously set heat output (Set heat output).
-
Page 18: Connections
09. CONNECTIONS English - 18... -
Page 19: Cleaning And Routine Maintenance
Eva Stampaggi S.r.l. assumes no direct and/or indirect criminal and/or civil liability for the malfunction of the stove and for injury to persons or damage to property caused by failure to clean/incorrect cleaning or routine maintenance of the stove. -
Page 20: Troubleshooting
12. TROUBLESHOOTING PROBLEM CAUSE SOLUTION IT MAY BE NECESSARY TO REPEAT THE FIRST LOAD PHASE A FEW TIMES TO FACILITATE THE APPLIANCE INITIAL FIRST START-UP START-UP AS THE AUGER TUBE IS COMPLETELY EMPTY AND IT MAY TAKE A SPECIFIC PERIOD OF TIME TO FILL. CHECK PLUG AND POWER SUPPLY OR ON/OFF SWITCH POWER OUTAGE FAULTY ELECTRICAL CABLE... - Page 21 FAULTY CONTROL BOARD CALL TECHNICAL ASSISTANCE. ALAR SMOKE PROBE FAULTY FUME SENSOR CALL TECHNICAL ASSISTANCE. SMOKE PROBE ACTIVE ALARM AL2 SMOKE PROBE FUME SENSOR DISCONNECTED CALL TECHNICAL ASSISTANCE. AL. SMOKE P. FAULTY FUME SENSOR CALL TECHNICAL ASSISTANCE. ALAR HOT TEMP FAULTY CONTROL BOARD CALL TECHNICAL ASSISTANCE.
-
Page 22: Yearly Scheduled Maintenance
13. YEARLY SCHEDULED MAINTENANCE Date 1st maintenance ____________ / ____________ / (Technical Assistance Centre stamp) Date 2nd maintenance ____________ / ____________ / (Technical Assistance Centre stamp) Date 3rd maintenance ____________ / ____________ / (Technical Assistance Centre stamp) 10. CERTIFIES English - 22... -
Page 23: Certificate Of Installation And Testing
14. CERTIFICATE OF INSTALLATION AND TESTING CERTIFICATE OF INSTALLATION AND TESTING CUSTOMER: _________________________________________ Dealer Stamp: STREET/ROAD: ______________________________________ CITY: _______________________________________________ POSTAL CODE: ______________________________________ Installer stamp: PROVINCE: __________________________________________ TEL: ________________________________________________ Delivery date: ________________________________________ First name: __________________________________________ Delivery date: ________________________________________ Last Name: __________________________________________ Equipment mod.: ______________________________________ Address: ______________________Postcode: _____________ Serial number: _____________________... -
Page 24: Warranty
12815 (wood-burning residential range cookers). Eva Stampaggi S.r.l. guarantees that the stove is free from defects that make it unsuitable for its intended use or significantly reduce its value. The rules of the Italian Civil Code or applicable national law governing the guarantee in the sales contract, or applicable national law ex D. Int. - Page 25 Proper waste disposal is important not only for the environment and the health of citizens, but also because this operation leads to a recovery of materials that have significant energy and resource savings. Eva Stampaggi S.r.l. Dealer Stamp and Signature Via Cal Longa Z.I.
- Page 26 Tel: +39 0438 740433 Fax: +39 0438 740821 I dati e le caratteristiche indicate non impegnano Eva Stampaggi S.r.l., che si riserva il diritto di apportare le modifiche ritenute opportune senza obbligo di preavviso o di sostituzione. Tutti i diritti riservati. Vietata riproduzione totale o parziale senza espressa autorizzazione di Eva Stampaggi S.r.l.
