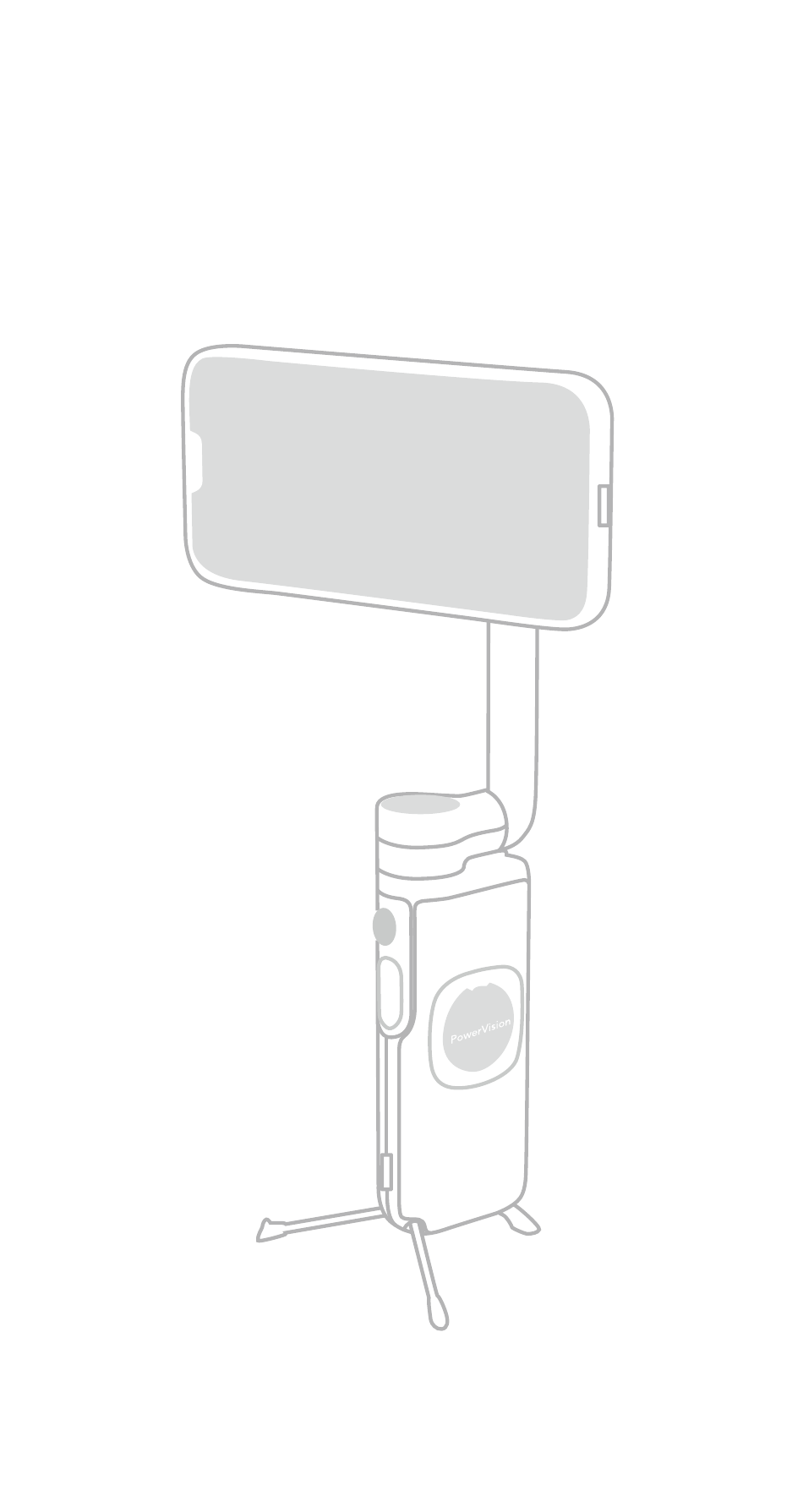

PowerVision S1
User Manual
V1.0
PowerVision

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerVision S1

  • Page 1 PowerVision S1 User Manual V1.0 PowerVision...

  • Page 2: Table Of Contents

    Operating modes ..........................17 Shooting with Vision+S1 .........................18 Using PowerFollow mode .......................20 ....................22 Charging your phone with S1 Charging your phone wirelessly.....................22 Functions as a wireless charger for phones .................22 Charging your phone with a wired charger ..................23 .........................24...

  • Page 3: Reading Suggestion

    Download Vision+S1 App in your phone's App store. Search for Vision+S1 App or scan the following QR code with your phone: To ensure optimal performance of Vision+S1 App, make sure that your device is using iOS version 10.0 or Android version 7.0 or higher.

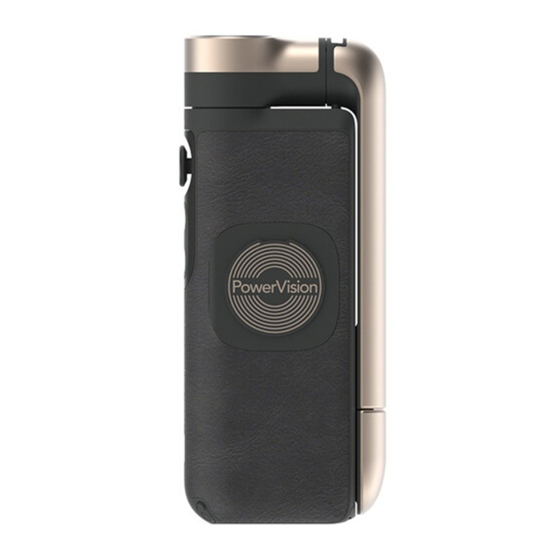

  • Page 4: Product Description

    S1 to fast charge their phones with a wired or wireless char- ger any time and anywhere.
  • Page 5 11.Pan Motor 14.Main Arm 17.Magnetic Mounting Plate 12.Tilt Motor 15.Tilt Joint 13.Roll Motor 16.Roll Joint • Magnetic Phone Clamp • Magnetic Phone Case (sold separately) 1.Magnetic Mounting Plate 2.Slide Stand • Magnetic Universal Phone Mount (sold separately) 1.Magnetic Universal Phone Mount (sold separately) 2.Slide Stand...

  • Page 6: Buttons And Port Functions

    Buttons and port functions By default, PowerVision S1 is in Follow mode when it is powered on.In Follow mode, the gimbal will keep the phone level at all times during shooting.When the gimbal is moved up, down, left, or right, the shooting direction will be adjusted smoothly.
  • Page 7 Indicates the current system status Blinking pattern Indicator status Solid yellow light Bluetooth not connected Solid green light Bluetooth connected Yellow and green pulses blink Standby mode Solid orange light Phone charger mode Blinking blue light Gimbal is updating Gimbal exception Blinking red light (too high or too low temperature, excessive battery discharge etc.) ◆...
  • Page 8 • Press to continuously increase/decrease the camera zoom factor. ◆ USB-C Port Charging port • Use this port to connect to the USB charger, and charge PowerVision S1 . Power supply port • Use this port to connect and charge your phone.

  • Page 9: Unfolding And Storage

    ◆ Unfolding Do not turn on S1 when it is in storage. Please install the phone onto the gimbal before turning it on and using the device. 180° Open the [Motor cover], and rotate the [Main arm] 180 degrees vertically until...
  • Page 10 Rotate the [Roll joint] to the illustrated position. Hold the main arm and rotate the [Tilt joint] counterclockwise to the illustrated position. Use a ①magnetic phone clamp, ②magnetic phone case, or ③magnetic univer- sal phone mount to install your phone into the gimbal and start using it.
  • Page 11 ◆ Storage Please remove your phone and power off S1 before storing it Hold the main arm and rotate the [Tilt joint] clockwise to the illustrated position. Rotate the [Roll joint] to the illustrated position.
  • Page 12 Open the [Motor cover], and rotate the [Main arm] 180 degrees vertically into the device. Close the [Motor cover] to nish storage. ◆ Unfolding and storing built-in tripod of S1 Completely extend S1's built-in metal feet at the base of the device.
  • Page 13 Fold the metal feet into the illustrated position. Open the Card Foot at the base. Place the device on a level surface.

  • Page 14: Charging

    Charging Use the USB charging cable (provided) and a compatible power adapter (sold separately) to connect to PowerVision S1's USB-C port and charge the device. 　　 When the device is fully charged while in OFF mode, the battery level indicator will automatically turn off.
  • Page 15 Note: For a list of phone models that are compatible with the magnetic phone case, check details in our of cial website, www.powervision.me. ◆ Magnetic Universal Phone Mount For phones that are not included on the list of devices compatible with mag- netic phone cases, a magnetic universal phone mount offers rapid installation.To...
  • Page 16 (1)Clean the back of the phone. (2)Align the center positioning card with the back of your phone, and the mag- netic universal phone mount's circular magnetic area with the center of the back of the phone. (3)Apply pressure to the attached magnetic universal phone mount for 30 s and ensure that it is at.

  • Page 17: Preparing For Use

    Preparing for use PowerVision S1 can be used with its dedicated App. Use PowerVision S1 buttons to activate Camera, Gimbal, Panorama, Motionlapse, and Tracking modes. Follow these steps to access Vision+S1 App's main functions: • Home: View device connection status and the gimbal's remaining battery level.

  • Page 18: Connecting Powervision S1

    Activating PowerVision S1 The rst time you connect to PowerVision S1 you will need to activate your device or you will be unable to use Vision+S1 App functions. Activating PowerVision S1 requires registering and logging in to a PowerVision account.

  • Page 19: Using The Gimbal

    ◆ Side Grip Mode 　　In upright mode, rotate S1 90 degrees to the left or right. Then hold the device and the device should be at a horizontally level with the gimbal. Then it is in side grip mode.Press the 5-Way button twice to re-center the gimbal.

  • Page 20: Shooting With Vision+S1

    Shoot with Vision+S1 App 1. Home ： Press to return to the home page. 2. Camera Status Bar Shooting Mode Con gurable Parameters Timewrap Flash, resolution、 frame rate Timelapse Flash, resolution and frame rate Slowmotion Flash, frame rate Video Flash, gesture control, beautify...
  • Page 21 the follow speed increases. c.Zoom Speed: Controls the zoom speed of the zoom slider. d.Handle Speed: Adjust the control speed of 5-Way button e.Horizontal Reverse Switch: When this switch is enabled, if you push the handle left or right, the gimbal's yaw axis will move in the opposite direction of your actual movements.

  • Page 22: Using Powerfollow Mode

    PowerVision S1 features a unique and innovative follow-up function that enables PowerFollow mode. This mode can be enabled to perform automatic tracking when you use PowerVision S1 as a phone stand. PowerFollow is useful when you use third party applications such as livestreaming and video calling Apps.When PowerFollow...
  • Page 23 Procedure: 1.Set PowerVision S1 on a level surface, turn on the device, and connect to the App. 2.Enable the PowerFollow function in the App. 3.Open the third party livestreaming platform and activate tracking with a ges- ture or by pressing the camera button on the gimbal.Activate subject tracking...

  • Page 24: Charging Your Phone With S1

    S1 is powered off, it can wirelessly charge at a charging power of up to 10 W, or up to 18 W with a wired charger. When S1 is powered on, S1 supports a maximum charging power of 5 W. Note that only wired charger mode is supported when S1 is powered on.Using a magnetic phone case or magnetic universal phone...

  • Page 25: Charging Your Phone With A Wired Charger

    2. Press S1 Power button to start charging. 1. When the S1 is powered on, it only supports charging with a wired charger, at a maximum power of 5 W. 2.When both wireless and wired charging are activated at the same time, only wired charging will be used.

  • Page 26: Firmware Upgrade

    Before updating, check that the S1 battery level indicator has at least 2 illumi- nated bars. Connect S1 to the App. If the App noti es you that there is a new rm- ware version available for download, you can tap to start the rmware update.

  • Page 27: Speci Cations

    PowerVision S1 Folded Dimensions 141.5 × 58.4 ×27.9mm Unfolded Dimensions 258.5 × 58.4 ×59.3mm Weight 298g Compatible Payload Weight 220±60g Compatible Phones Length 164mm Max. Battery Type Li-ion 15.86Wh/1030mAh 15.4V Energy *Capacity equal to 4120 mAh 3.85V 15 hrs Max Working Time * Under ideal conditions with the gimbal fully balanced.
  • Page 28 PowerVision ※ This content is subject to change without prior notice. Download the latest version from https://www.powervision.me/ PowerVision is the trademark owned by Powervision Tech Inc. Copyright © 2021 Powervision Tech Inc. All rights reserved.
