Summary of Contents for Mighty Mule FM137

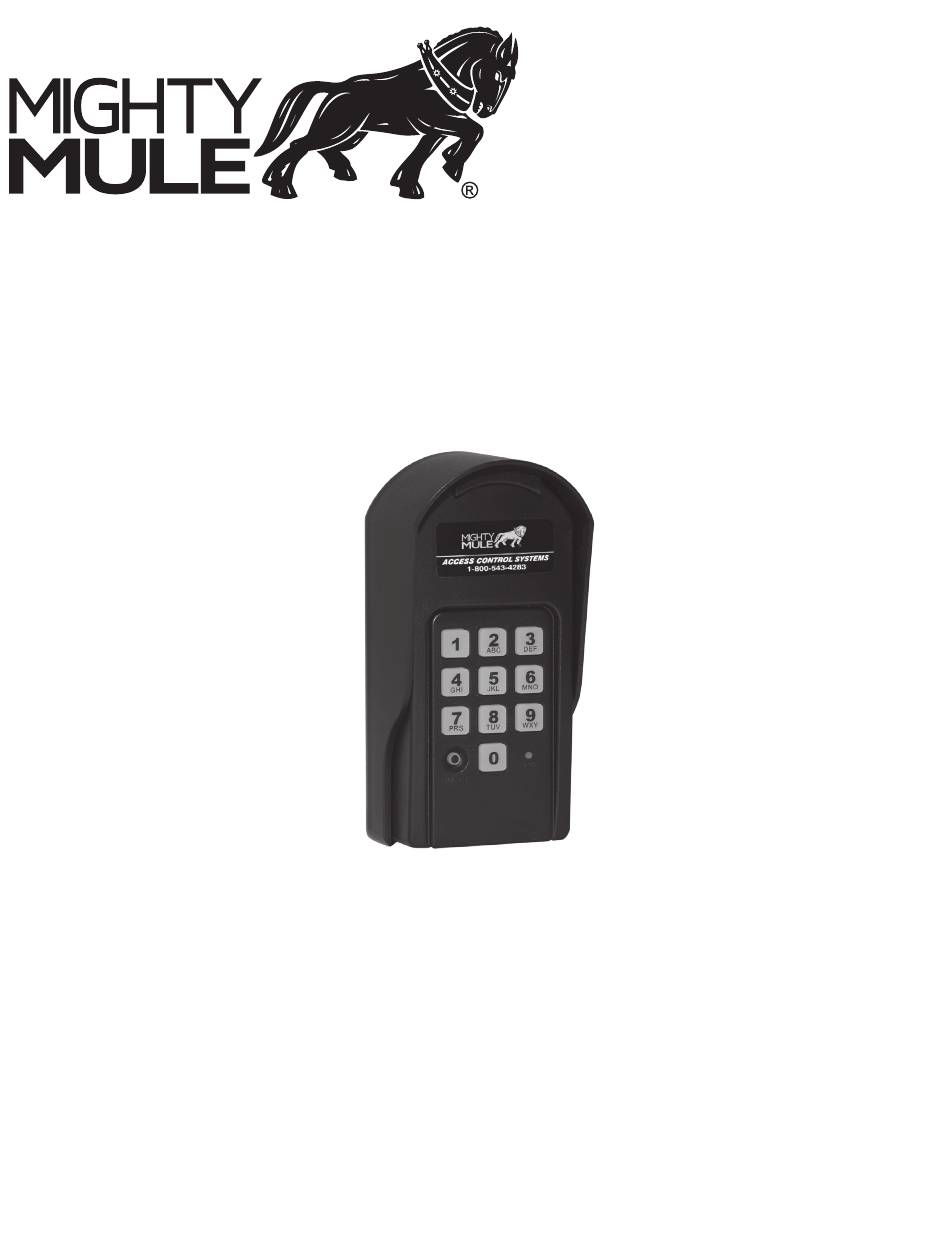

- Page 1 FM137 25 Code FM137 Digital Keypad Instructions for Wired and Wireless Installations (FM137 only)
-
Page 2: Table Of Contents
Learning an FM137 to an MM371, MM372, MM571 or MM572 Automatic Gate Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Learning an FM137 to an MM271 or MM272 Automatic Gate Opener (A dip-switch type transmitter may be required) . . . . . 6 Wireless Installation of the Keypad . -
Page 3: Wireless Gate Entry Intercom
Wireless Gate Entry Intercom Thank you for purchasing the FM137 Digital Keypad . Be sure to read the directions carefully and completely . Before permanently mounting the keypad, please program the keypad and test its range . IMPORTANT: Your keypad may need to be hard wired due to the fact that it must accept interference according to FCC regulations listed below . -
Page 4: For Your Records
FOR YOUR RECORDS Please record the following information . Be sure to keep all receipts for proof of purchase . Refer to this information when calling NSC for service or assistance with your keypad . DATE OF PURCHASE: PLACE OF PURCHASE: Factory Code Your Master Code Additional Codes (Up to 25):... -
Page 5: Keypad Description
Keypad Description Front Inside Figure 1 Figure 2 OUT COM. RESET – + – – 1 . Program button: Use for/during program process . 2 . Status Light: The LED will blink once when any key is pressed and provides visual feedback during access code programming . 3 . -
Page 6: Wireless Installation Of The Keypad
6 . Test the keypad code by pressing any single digit if the keypad has not yet timed out . To forget the FM137, simply follow steps 1 through 5 above then test the keypad to verify that it no longer activates the Operator . -
Page 7: Wireless Installation Of The Keypad
Wireless Installation of the Keypad NOTE: For wireless applications, the distance from the keypad to the opener’s receiver should not exceed 50 ft . Always test the keypad range before permanently mounting it . Step 1: Mount the keypad cover using the screws provided . Step 2: Slide the keypad into the cover and secure with the small screws provided . -
Page 8: Learn" Transmitter Code (For Wireless Installations)
“Learn” Transmitter Code (for wireless installations) IMPORTANT: Make sure the transmitter operates the gate opener . Turn off the gate opener so that there is no unintended operation of the gate during the learning process . ① ② ③ Enter Press &... -
Page 9: Wired Installation Of The Keypad
Wired Installation of the Keypad IMPORTANT: Remove the batteries from the keypad . The keypad will not work properly if batteries are not first removed . Step 1: Turn the gate opener’s power switch OFF . Run wire through PVC pipe between the opener control board to protect the wire . - Page 10 Step 4: Attach the wires from the keypad to the opener control board terminal blocks as shown below . (Figure 9) Step 5: Replace the control board cover and turn the power switch ON . Put the batteries back into the keypad . (Figure 2) Test the 1 2 3 4 keypad by entering to open gate .
-
Page 11: Control Board Connection Examples
. Generally, the OUT wire should connect to the CYCLE terminal on the control board while COM connects to the COMMON terminal . Figure 9 Keypad Terminal Wiring for Reference Mighty Mule MM371, MM372, MM571 and MM572 Control Boards OUT COM... -
Page 12: Programming The Keypad
Programming the Keypad • A Master Code is needed to add, remove, or program Entry Codes. • Factory default Master Code is “1234.” • Keypad can only enter “program” mode from “idle” mode. • Keypad will beep three times before going into “idle” mode (more than 10 seconds between key presses). -
Page 13: Normal Keypad Operation
Normal Keypad Operation • If the user enters a 4-digit code that is matched to one of the 25 stored codes . The STATUS light should blink rapidly indicating that it is sending command to operator . • No more than 20 key presses are allowed to obtain the 4-digit entry code . Example: 1234 is one of the codes stored in one of the memory location . -
Page 14: Notes
Notes... - Page 15 Notes...
-
Page 16: Fcc Warning
. Please retain these for your records . Mighty Mule Sales: 800-543-4283 | Mighty Mule Technical Support: 800-543-1236 Mon-Fri 8am - 7pm EST • Saturday 10am - 6:30pm EST 5919 Sea Otter Place, Suite 100, Carlsbad, CA, 92010 www .mightymule .com...
