Summary of Contents for TIME2TECHNOLOGY Bella

Page 2: Table Of Contents
Contents What’s in the box Get Started Download App Register Add a Home Add Bella Live View Playback Add SD Card Format SD Card Cloud Storage Multi Camera View Web View Reset Installation Struggling to read? View this start up guide online at...
Page 3: What's In The Box

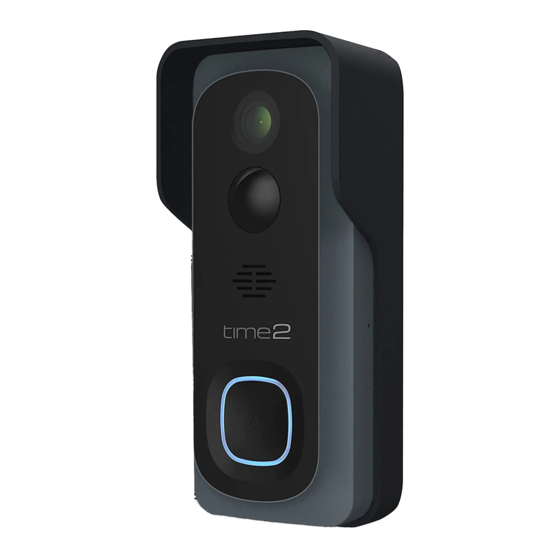

What’s in the box Bella Video Doorbell Mounting Kit Power Adapter Quick Start Guide Micro USB Cable Be ready You will need your WiFi router password. Write it down below so its handy when you need it!
Page 4: Get Started
USB cable provided. Allow at least 10 hours to fully charge the camera. The red LED will come on once plugged in and Bella will chime before it is ready to connect. Micro USB Port Charging Indicator...
Page 5: Download App
Download App Download the "Clan at home" app from the iOS App Store or Google Play Store...
Page 6: Register
Register Step 1 Step 2 Open the app then press Enter your email address Register...
Page 7 Register Step 3 Step 4 Enter the veriﬁcation code Create your password to login sent via email...
Page 8: Add A Home
Add a Home Step 1 Step 2 Click Me in the bottom right Select Home Management hand corner...
Page 9 Add a Home Step 3 Step 4 Select My Home. Enter a name Select Complete and your home for your home and a location. will be created Click Save...
Page 10: Add Bella
Add Bella Step 1 Step 2 Select Security and Sensors In My Home, click the (+) icon in down the left hand side and the top right-hand corner of the screen click Smart Camera...
Page 11 Add Bella WiFi Your WiFi Step 3 Step 4 Make sure the camera Enter your WiFi router password. is ﬂashing red (if it is not ﬂashing, Then press Next see the reset instructions on page 26). Tick the check box and then press “Next”...
Page 12 Step 5 Step 6 If you heard Bella chime, press Remove the plastic ﬁlm from “I heard a prompt” the camera lens If you don’t hear the chime, Hold your phone up to Bella reposition Bella in front of the phone...
Page 13 Add Bella Bella Olivia 2 Step 7 Step 8 Bella will then establish a Once connected you can change connection to Clan Bella’s name and select the room it’s in Press “Done”...
Page 14: Live View
Live View Hear what is happening around the camera Select the video quality (lower quality) may broadcast more smoothly) Full Screen Save a screenshot on your phone Select to speak into the camera Record live footage on to your phone More features...
Page 15: Playback
Playback Hear sound recorded on footage Full screen Choose the date Slide to select teh time you want to view Save a screenshot on to your phone Record footage on to your phone...
Page 16: Add Sd Card
Add SD Card If you would like Bella to record, you will be required to insert a Micro SD Card. Ava will support any sized Micro SD Card up to 128GB Step 1 Turn oﬀ power to Bella Step 2...
Page 17: Format Sd Card
Format SD Card Before Bella can start recording, you will have to format the Micro SD Card. Bella Step 1 Step 2 Select your camera and click on Click Format SD Card and press the pencil icon in the top right.
Page 18: Cloud Storage
Cloud Storage (Single Camera) Alternatively, Bella can record directly on to the cloud. The cloud storage option allows the camera to record continuously or once it detects movement. You can also choose to store the recorded footage for 7 days, 14 days or even 30 days.
Page 19 Step 3 Step 4 Click on Subscribe Choose which service would best suit your needs. Click Purchase. You will be directed to the payment page.
Page 20 Cloud Storage (Multiple) Clan also oﬀers cloud storage packages for customers who own multiple cameras. This feature allows all the cameras to record to the cloud whenever movement has been detected without having to pay for each camera individually. Hannah Home Step 1 Step 2 Step 3...
Page 21 Step 4 Step 5 Click ‘Subscribe”...
Page 22: Multi Camera View
Multi Camera View Hannah Home Step 1 Click on the camera in the top right hand corner.
Page 23 Multi Camera View Doorbell Click on a screen to be able to control it Hear whats happening around your camera. Save a screenshot on your smartphone memory. Select to speak into your camera. Record live footage onto your smartphone memory. Full screen...
Page 24: Web View
Web View Step 1 Go to https://www.time2technology.com/webview/ on your computer. Please note: the web view is only supported on Google Chrome...
Page 25 Web View Hannah Home Step 2 Step 3 Click “Me” on the bottom right Click on the square on the hand corner top right hand corner.
Page 26 Web View Step 5 Step 4 Click Conﬁrm Login. Using your phone scan the QR code. Ensure the QR code is within the green square.
Page 27 Web View 1. Select Home 4. Volume Control 2. Select Camera 5. Multi Camera View 3 View Footage saved on Cloud 6. Full Screen...
Page 28: Reset
Reset If you are having trouble connecting to Bella you may need to do a reset. How to reset Bella Hold down the reset button on the back of the camera for up to 15 seconds until the camera chimes and the LED is ﬂashing red...
Page 29: Installation
Installation This is what you’ll need to set up your Bella Video Doorbell Phillips Bit A power drill with Phillips driver bit Screws (provided) To mount the doorbell on to the wall Drill Bit To install on surfaces such as brick or concrete...
Page 30 Install Height We recommend that you install the Bella Video Doorbell around 4 feet from the ground. This is the ideal height for Bella’s ﬁeld of view and motion detection range.
Page 31 Step 1 Step 2 Mark screw holes where you would like Drill pilot holes. to install the mounting bracket Use the included wall anchors if you’re drilling into stone or hard material Step 3 Step 4 Install the mounting bracket on to the wall Finally, use the provided security using the provided screws.
Page 32 Hardwired Installation Step 1 Step 2 Mark screw holes where you would like Drill pilot holes. to install the mounting bracket Use the included wall anchors if you’re drilling into stone or hard material 12~24V AC Step 3 Step 4 Connect the wires coming out of your Install the mounting bracket on to the wall wall to the screws on the back of the...
Page 33 Step 5 Step 6 Then attach the doorbell by simply Finally, use the provided security slotting it into the bracket and clicking screw to secure the doorbell on to into place the mounting bracket...
Page 34 Are you on Facebook? Join our Clan to speak to other members of the Clan and our dedicated UK based support team: www.facebook.com/groups/partoftheclan Need further Help? Contact our Customer Support team on Social Media facebook.com/time2HQ m.me/time2HQ @time2HQ or visit our support page time2technology.com/support...
