Summary of Contents for Arteflame AF30ROTIS

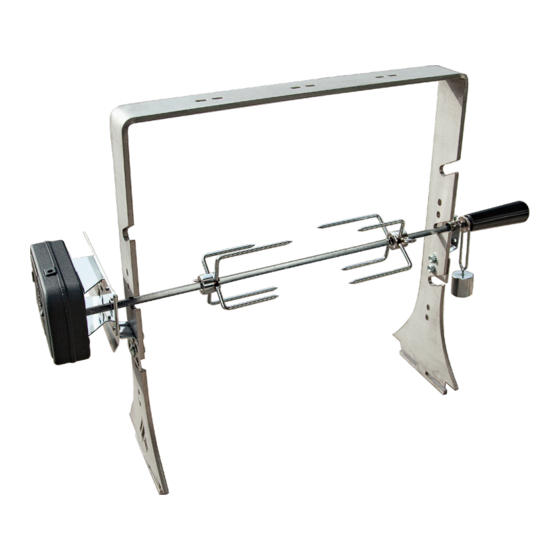

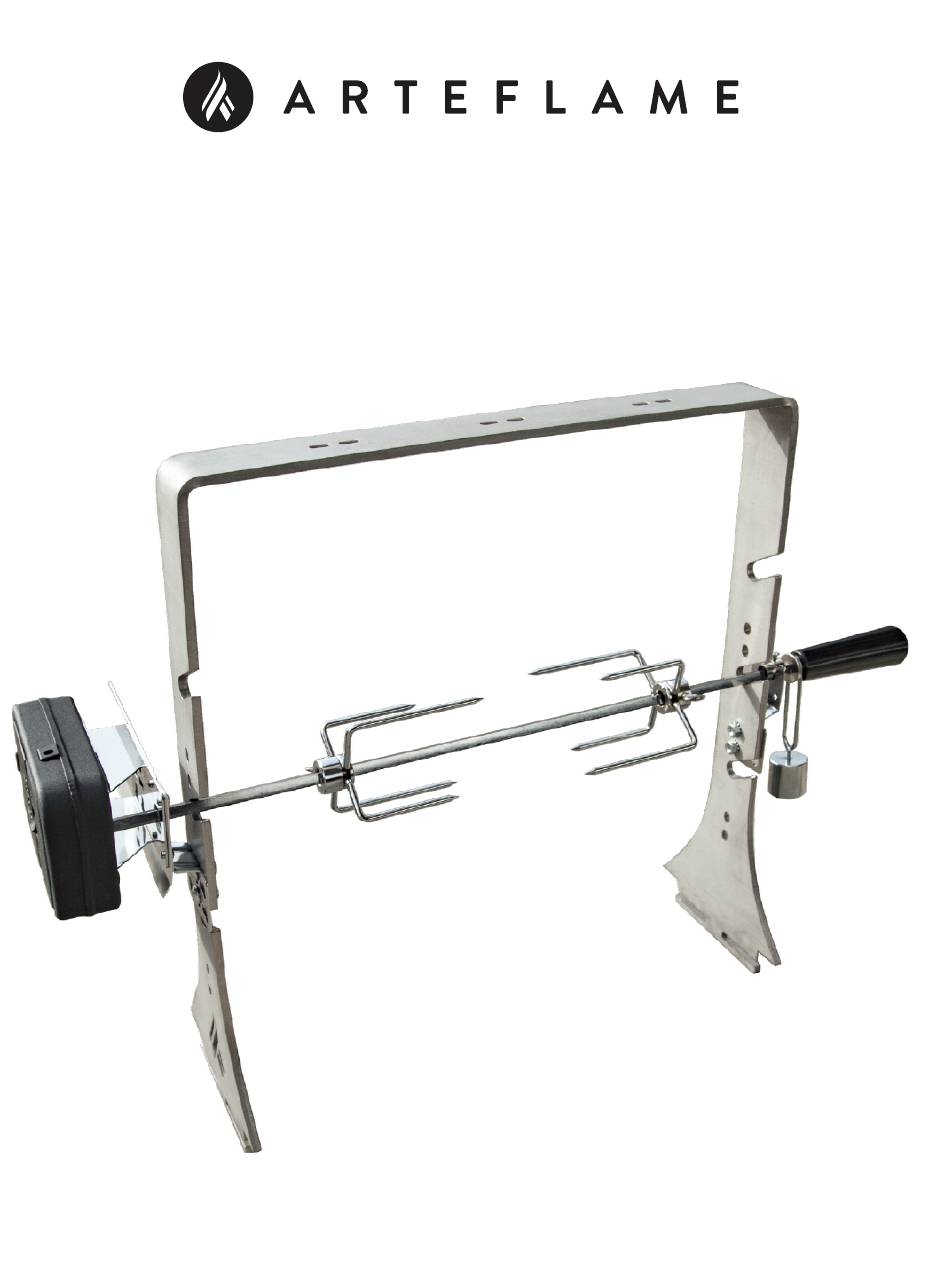

- Page 1 Rotisserie Attachment Setup Instructions...
- Page 2 FOR YOUR SAFETY PLEASE READ ALL INSTRUCTIONS PRIOR TO USE! Surfaces will become hot during use. Use handle or mitts. To protect against electrical shock, do not immerse motor, cord or plug in water or other liquid ( optional adapter only). Close supervision is necessary when appliance is used by or near children.
- Page 3 ARTEFLAME ™ Cincinnati, Ohio 45215 / info@arteflame.com / (833) 727-0123 ROTISSERIE ASSEMBLY INSTRUCTIONS Note; we ship enough extra brackets and hardware for you to mount the spit on the high and low setting. This is not necessary but can be...
- Page 4 ROTISSERIE ASSEMBLY INSTRUCTIONS Figure 1 Assemble Motor Bracket (2), Motor Shield(3), and Motor Mount (1) using four screws (13) as shown in Figure 1. **CAUTION** Do not mount motor mount directly to grill. Motor will fail prematurely. Attach Motor Bracket Assembly to side of rotisserie frame (can be mounted on either the left or right side of the frame) using two screws (11) and two nuts (12) as shown in Figure 2.
- Page 5 fit the grill). You can choose to use the upper, middle or lower slots as you see fit. There are also slots at the top of the upright to hang items from. ARTEFLAME ™ Cincinnati, Ohio 45215 / info@arteflame.com / (833) 727-0123...
